Black Array Spot

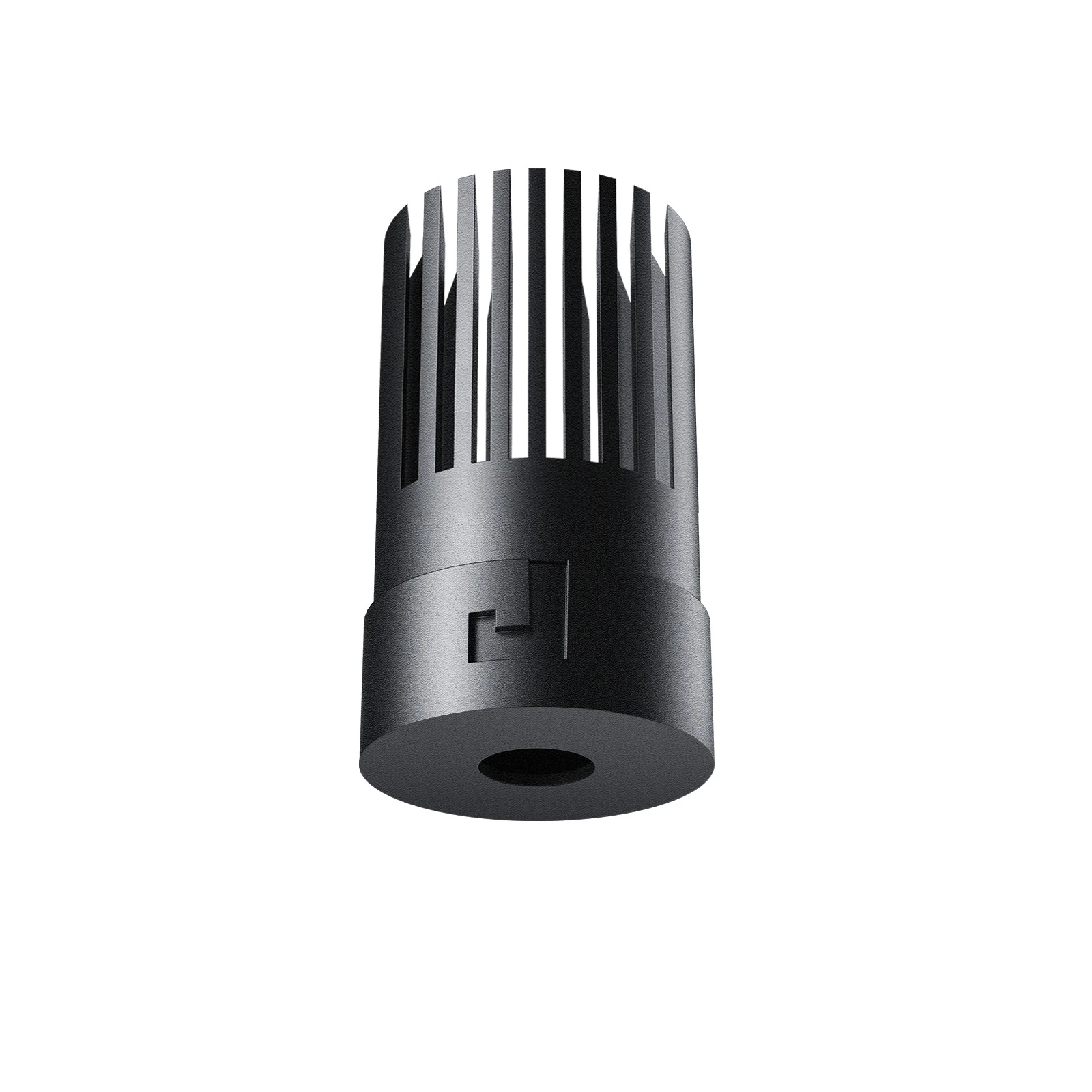

QN 11152-390A modular recessed spot, finished in Sandy Black. The compact finned engine drops into a Ø 48 ceiling opening on spring clips and keeps the LED deep behind a small aperture, with 24° and 36° optics for accent and general pools from one recessed body. Alongside the fixed 3000K / 4000K version, a Tunable White 2700–6000K engine on DALI runs from warm evening light to crisp daylight.
Black Array Spot (QN 11152-390) is built as a recessed luminaire and specified at LED 10W, with 3000K / 4000K (Tunable White 2700–6000K, order option), a colour rendering index of CRI ≥90 and IP20 (Tunable White) / IP44/65 (3000K / 4000K) ingress protection. It is finished in Sandy Black, and is typically specified for residential, hotel, gallery, boutique schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 359 / 372lm (24°) · 513 / 532lm (36°) at 3000K / 4000K — Tunable White 269–435lm |
| CCT, K | 3000K / 4000K (Tunable White 2700–6000K, order option) |
| Power consumption, W | 10W · 36V / 250mA |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <18 (24°) / <24 (36°) · Tunable White <15 / <22 |
| IP Code | IP20 (Tunable White) / IP44/65 (3000K / 4000K) |
| Size · cut-out | Ø 52 × H 73 · Cut-out Ø 48 |
| Finishes |
Applications
Configure Array
Your configuration
Dimensions & mounting
| Mounting | Spring clips |
| Cut-out, mm | Ø 48 |
| Dimensions, mm | Ø 52 × H 73 |
| Case material | Aluminum |
Light distribution — cd/klm
Driver
Version follows the control selection: On/Off · DALI
