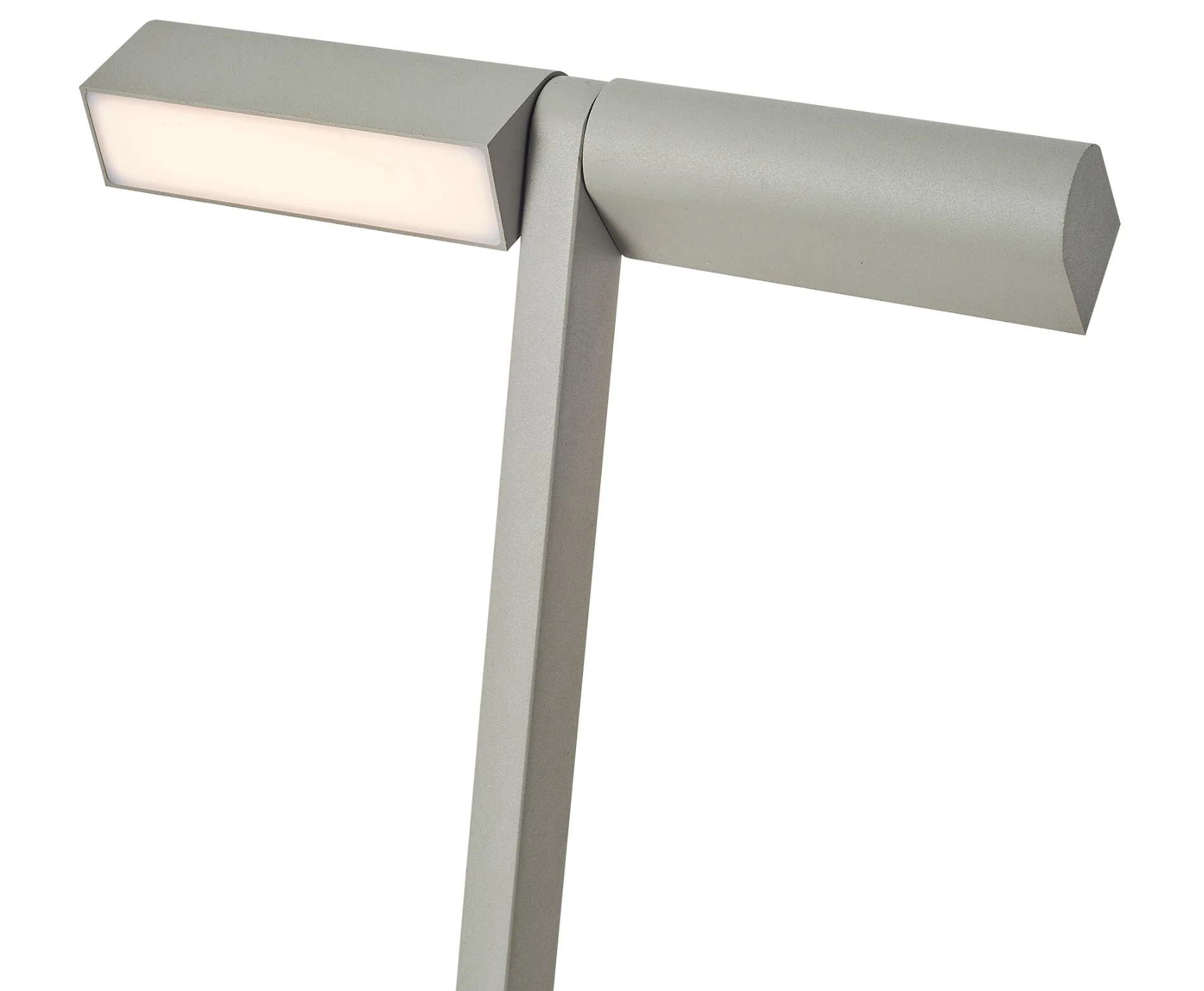

Sand Gray Vane Bollard

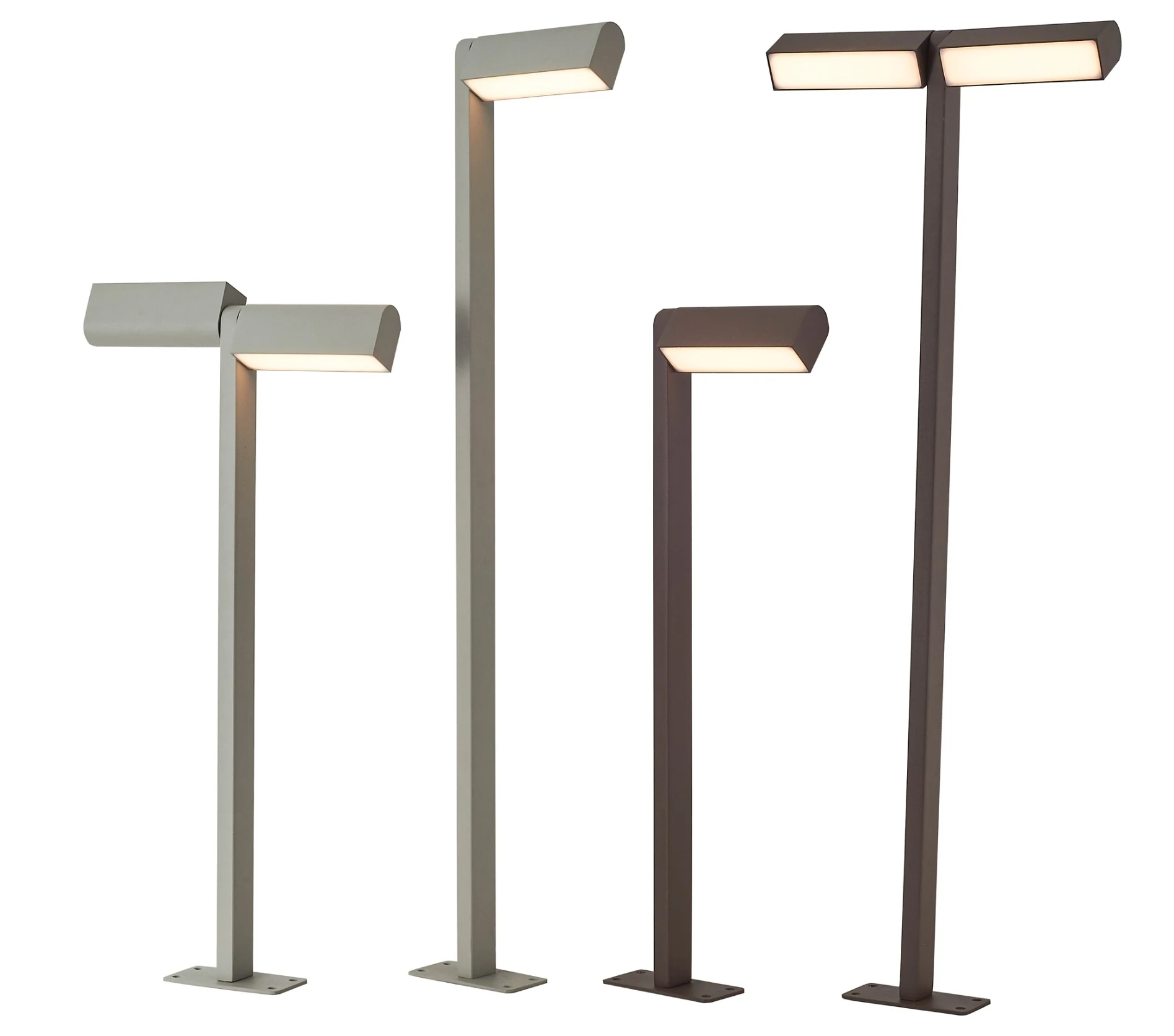

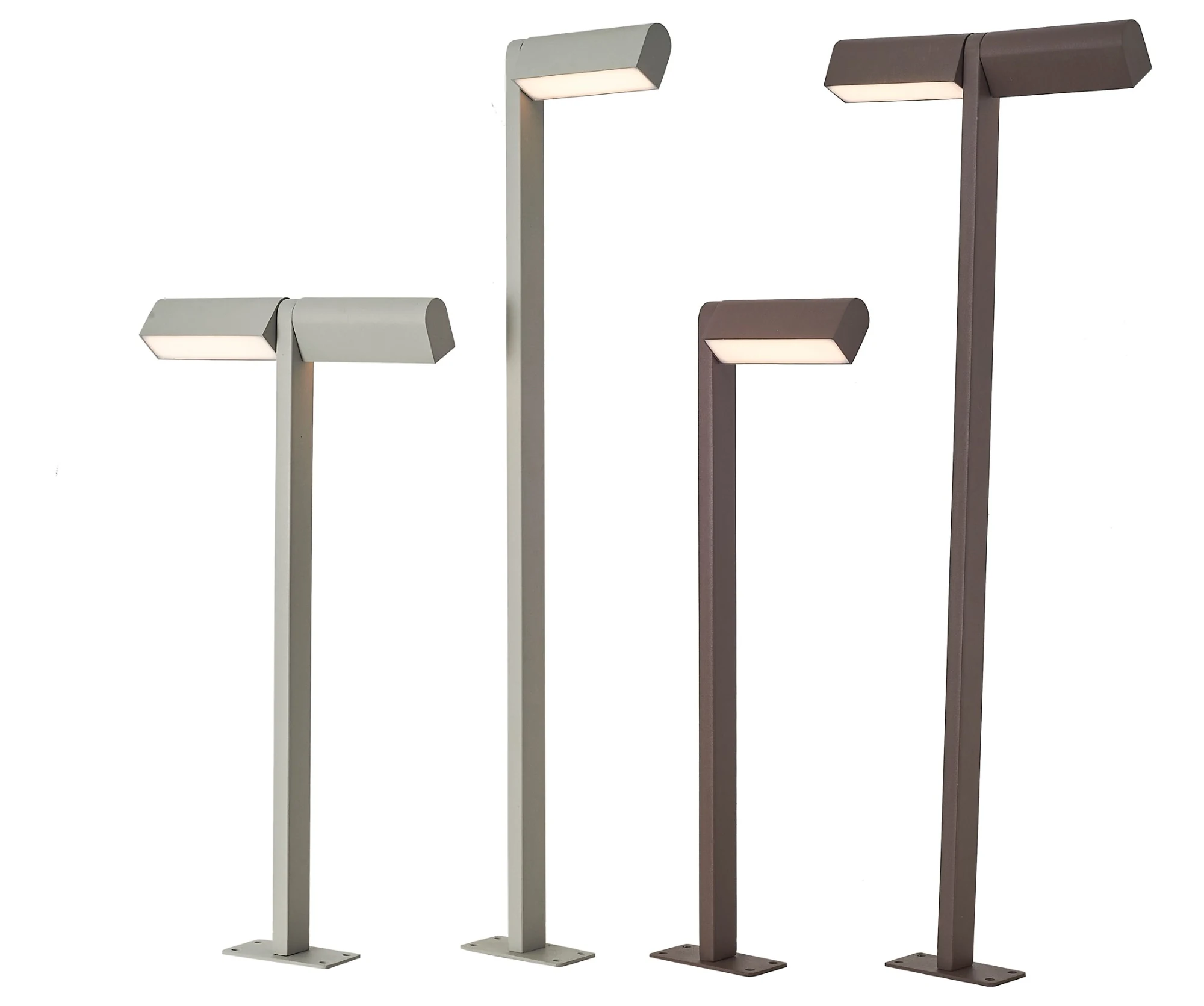

A horizontal blade set across the top of a square 50 mm post — the head reaches out over the path and lays its light down one side only, so the walking surface is lit and the planting behind stays dark. The sand gray finish is a textured powder coat that keeps the post reading as a quiet vertical against pale render, limestone and concrete. Four builds cover the usual runs: a 180 mm head at 5 W for tighter paths and bed edges, a 260 mm head at 12 W where the path is wide, each on a 503 or 703 mm post. IP65 and 24 V SELV, so a whole garden circuit stays low-voltage.

Sand Gray Vane Bollard (QN 26221-186) is built as a bollard luminaire and specified at LED 5–12W, with 3000K, a colour rendering index of CRI ≥90 and IP65 ingress protection. It is finished in Sand Gray, and is typically specified for landscape, residential, hotel, restaurant schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
