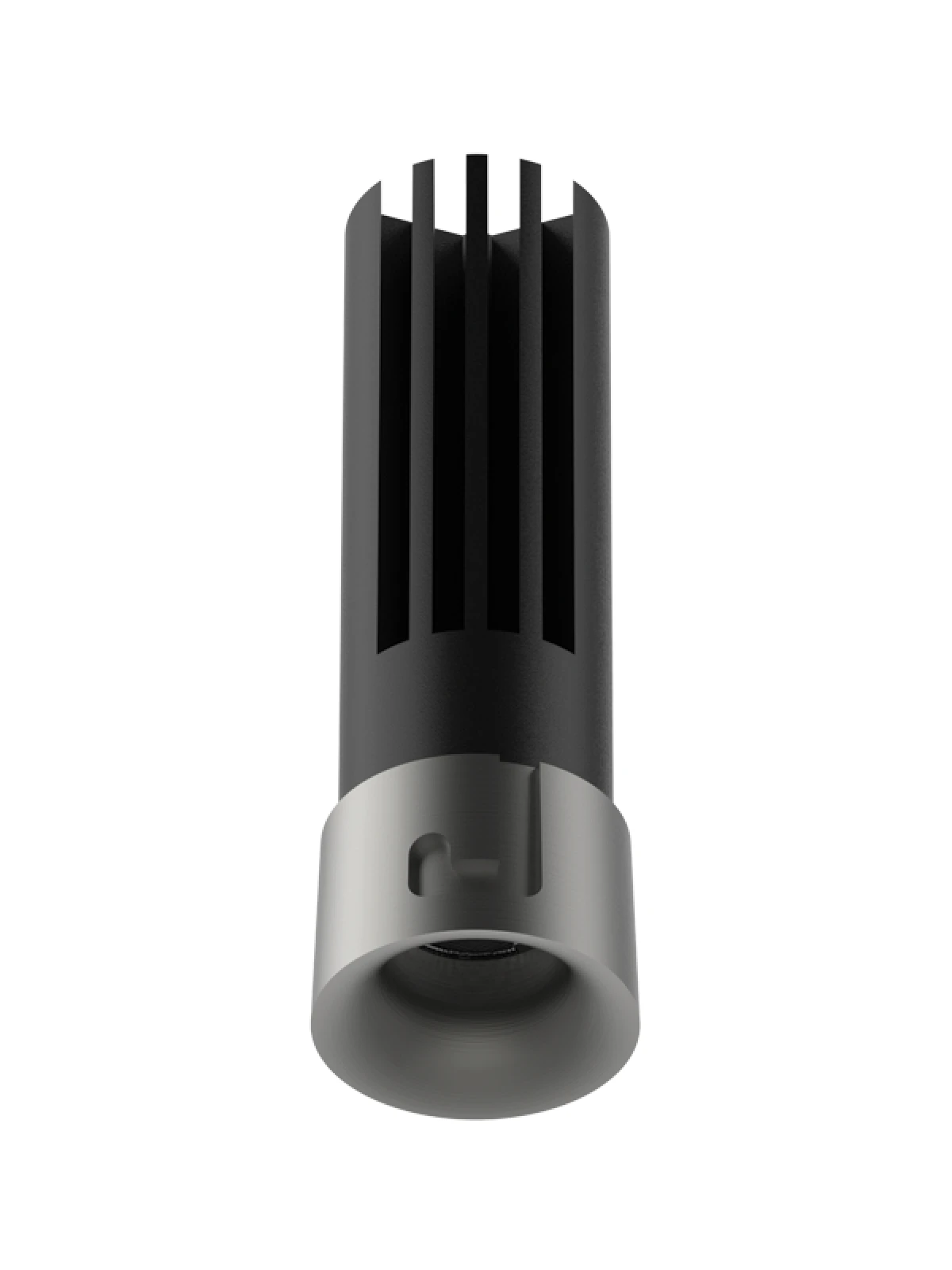

Silver Vega Mini Trimless
QN 11127-084A mini trimless spot in the Vega family, finished in Matte Silver. It beds into the plaster with no visible frame, leaving only a Ø 35 mm light aperture in the ceiling — the Vega architecture at its smallest, for niches, corridors and low-ceiling details. The 24° and 36° lenses are interchangeable on site, and the finish palette matches the full-size Vega for consistent use across a project.
Silver Vega Mini Trimless (QN 11127-084) is built as a recessed luminaire and specified at LED 8W, with 3000K (4000K on request), a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Matte Silver, and is typically specified for residential, hotel, gallery, boutique schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are available on request for specification and lighting-calculation work.
| Luminous flux, lm | — |
| CCT, K | 3000K (4000K on request) |
| Power consumption, W | 8W · 36V / 200mA |
| Color rendering (CRI) | ≥90 |
| IP Code | IP20 |
| Size · cut-out | Ø 70 × H 86 · Cut-out Ø 35 |
| Finishes |
Applications
Configure Vega
Your configuration
Dimensions & mounting
| Mounting | Trimless · plaster-in |
| Cut-out, mm | Ø 35 |
| Dimensions, mm | Ø 70 × H 86 |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
Driver
Version follows the control selection: On/Off · Triac · DALI DT6
