Black Drum Garden Pole

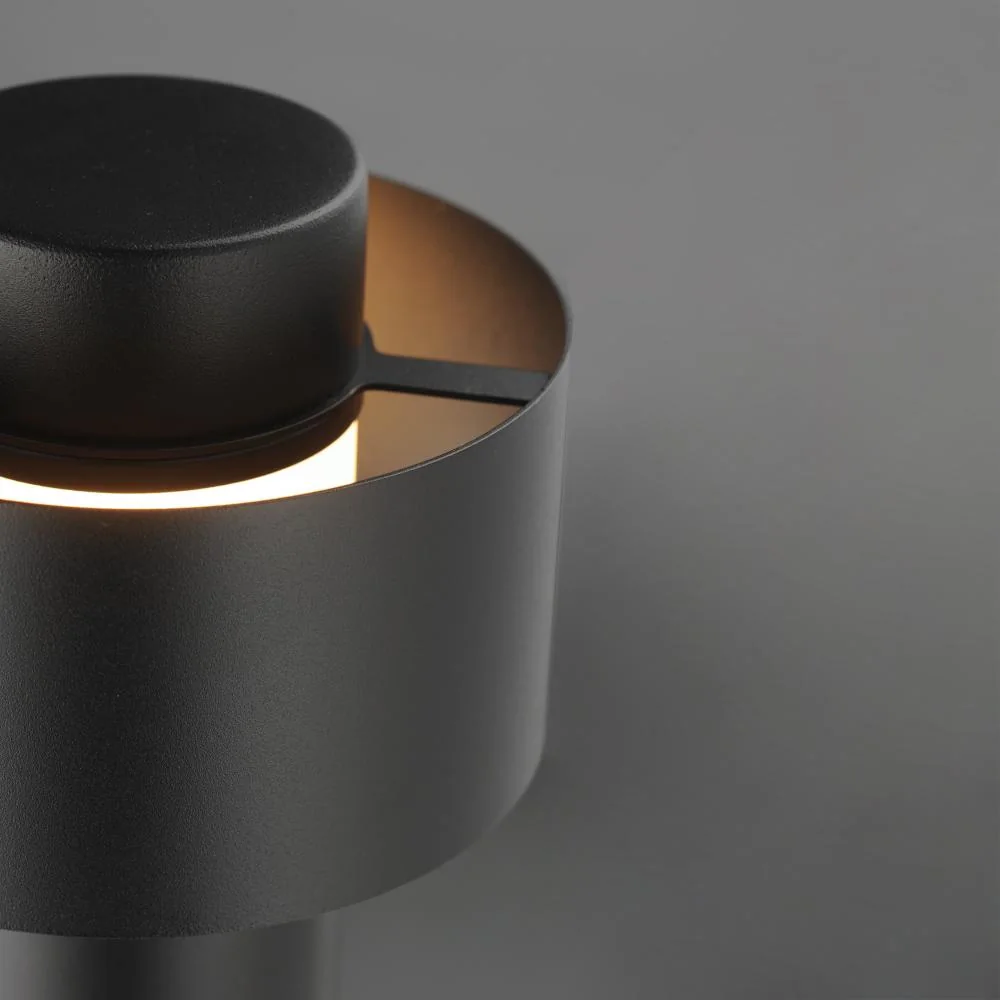

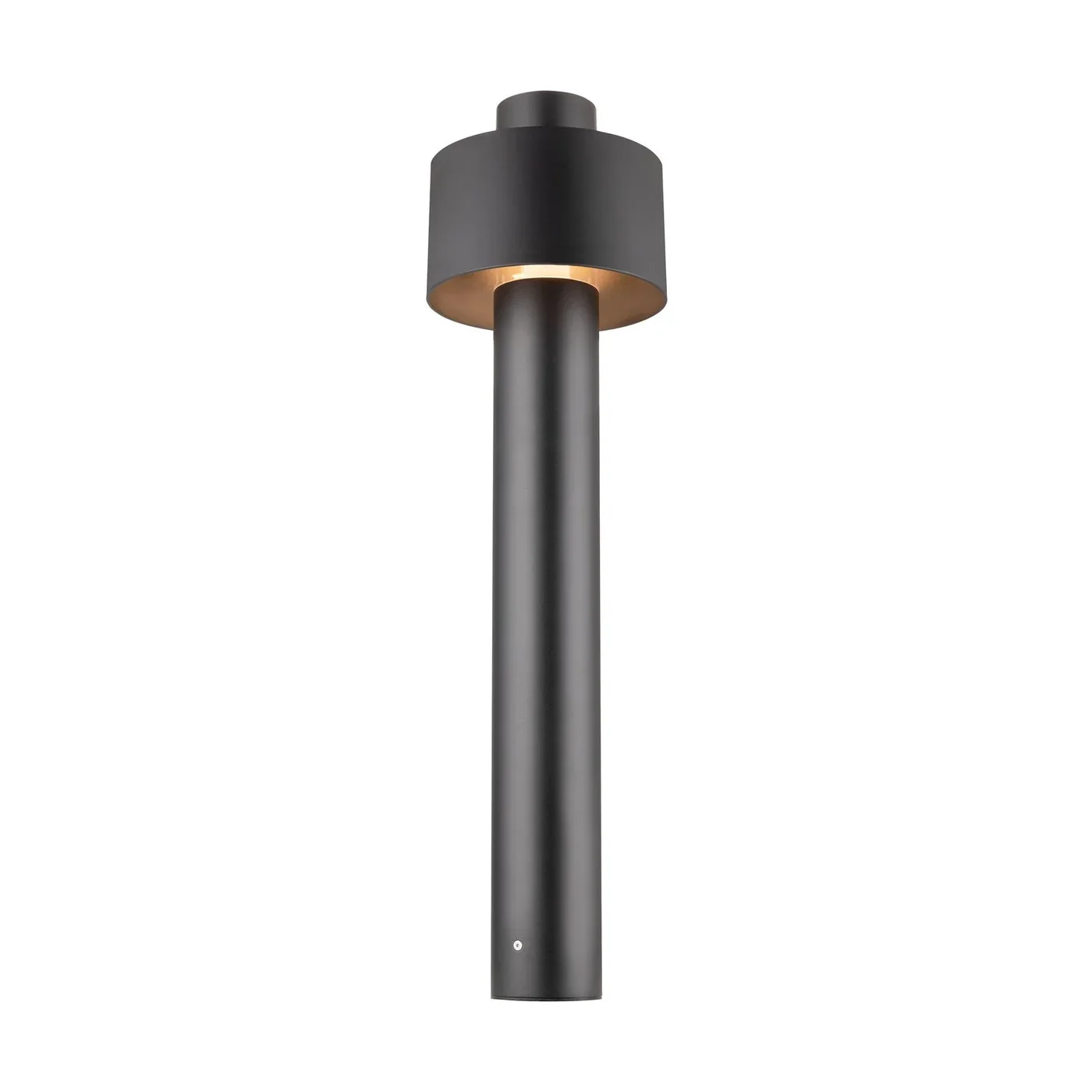

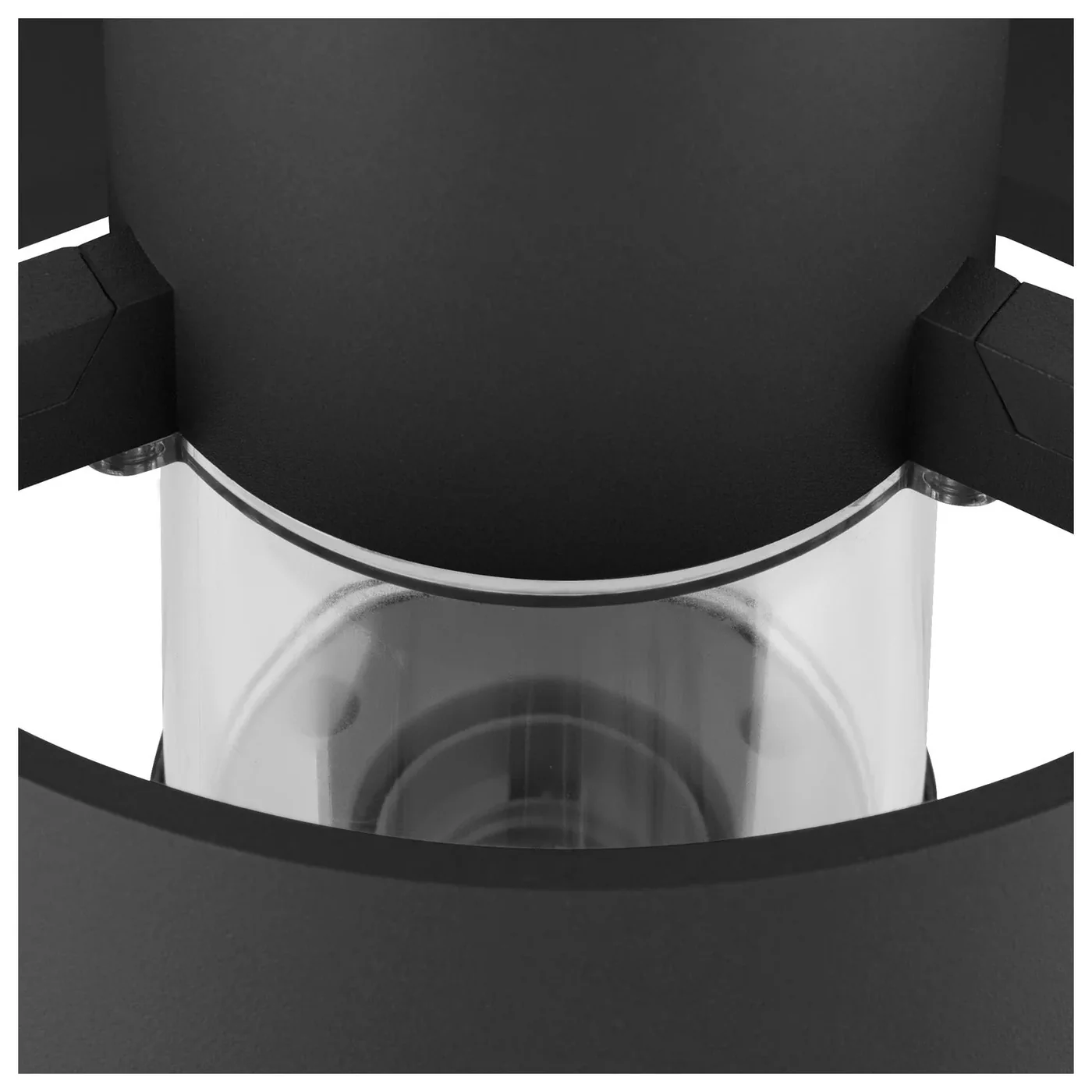

QN 26313-440A wide drum head carried on a slim Ø 70 stem. The light sits up under the brim behind an opal diffuser and drops in a tight 34° cone, so the pole marks the edge of a path and lays a pool on the ground without showing a bright face from across the garden. 7 W and 462 lm at 3000 K, CRI above 80. Die-cast aluminium body and bracket, powder coated after pretreatment for outdoor use, silicone gasket and an Intertek-certified driver; IP65 at 650 mm tall. Matte Sandy Black.
Black Drum Garden Pole (QN 26313-440) is built as a ground luminaire and specified at LED 7W, with 3000K, a colour rendering index of CRI ≥80 and IP65 ingress protection. It is finished in Sandy Black, and is typically specified for landscape, residential, hotel, restaurant schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Availability | Made to order |
| Luminous flux, lm | 462lm |
| CCT, K | 3000K |
| Power consumption, W | 7W · 220–240V ~50Hz |
| Color rendering (CRI) | ≥80 |
| Power factor | 0.89 |
| IP Code | IP65 |
| Size | Ø 140 × H 650 · Head 125 · Stem Ø 70 |
| Finishes | Sandy Black |
Applications
Configure Drum
Your configuration
Dimensions & mounting
| Mounting | Ground |
| Dimensions, mm | Ø 140 × H 650 · Head 125 · Stem Ø 70 |
| Diffuser | Opal PC |
| Case material | Die-cast aluminium · powder coated |
| Warranty | 3 years |
Downloads
The simplified 3D model is an envelope generated from the published dimensions for layout and clash checks; it carries no optics, driver or fixing detail. The manufacturer's CAD is supplied on request.
