White Dome Outdoor Wall Light

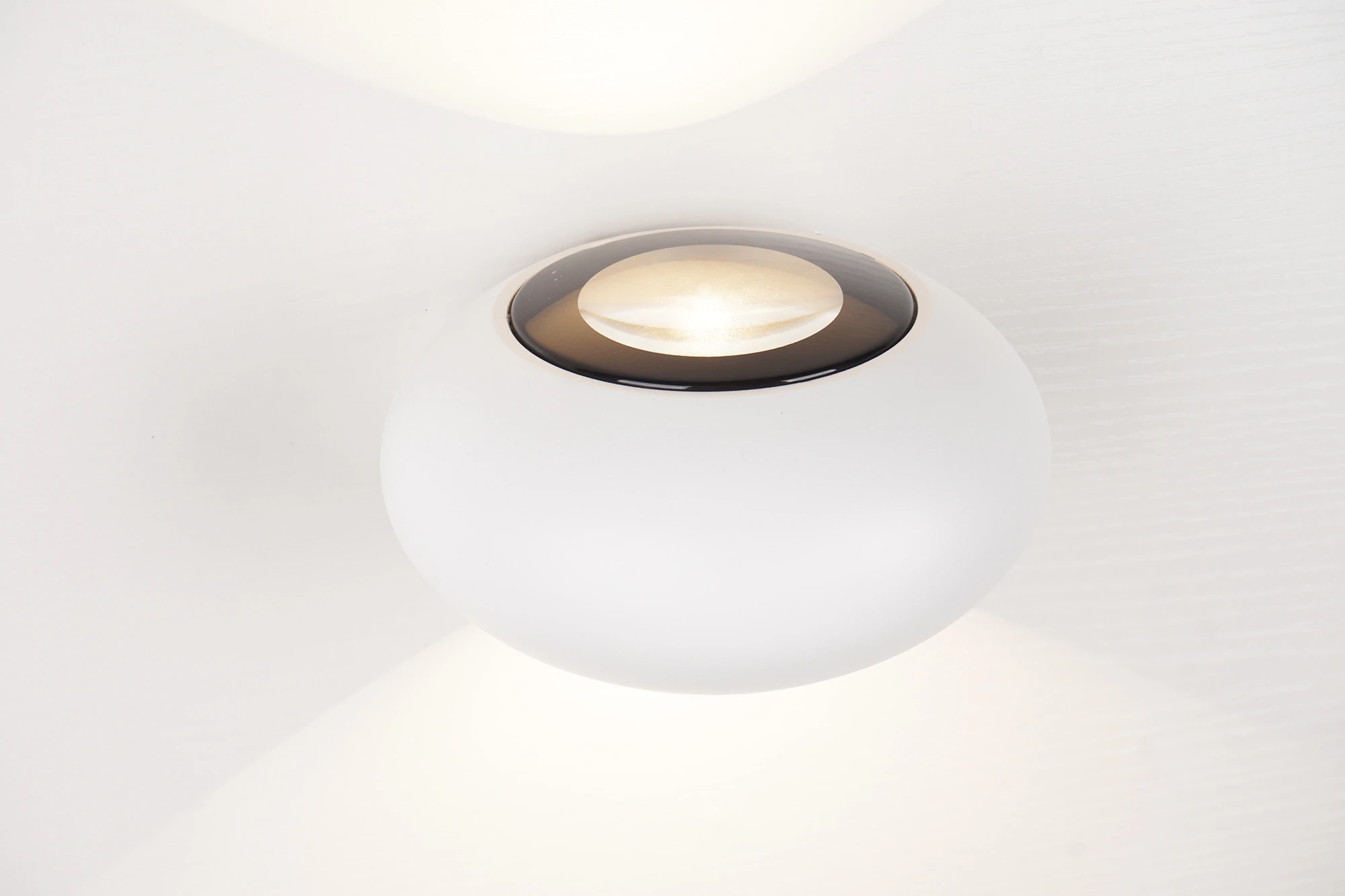

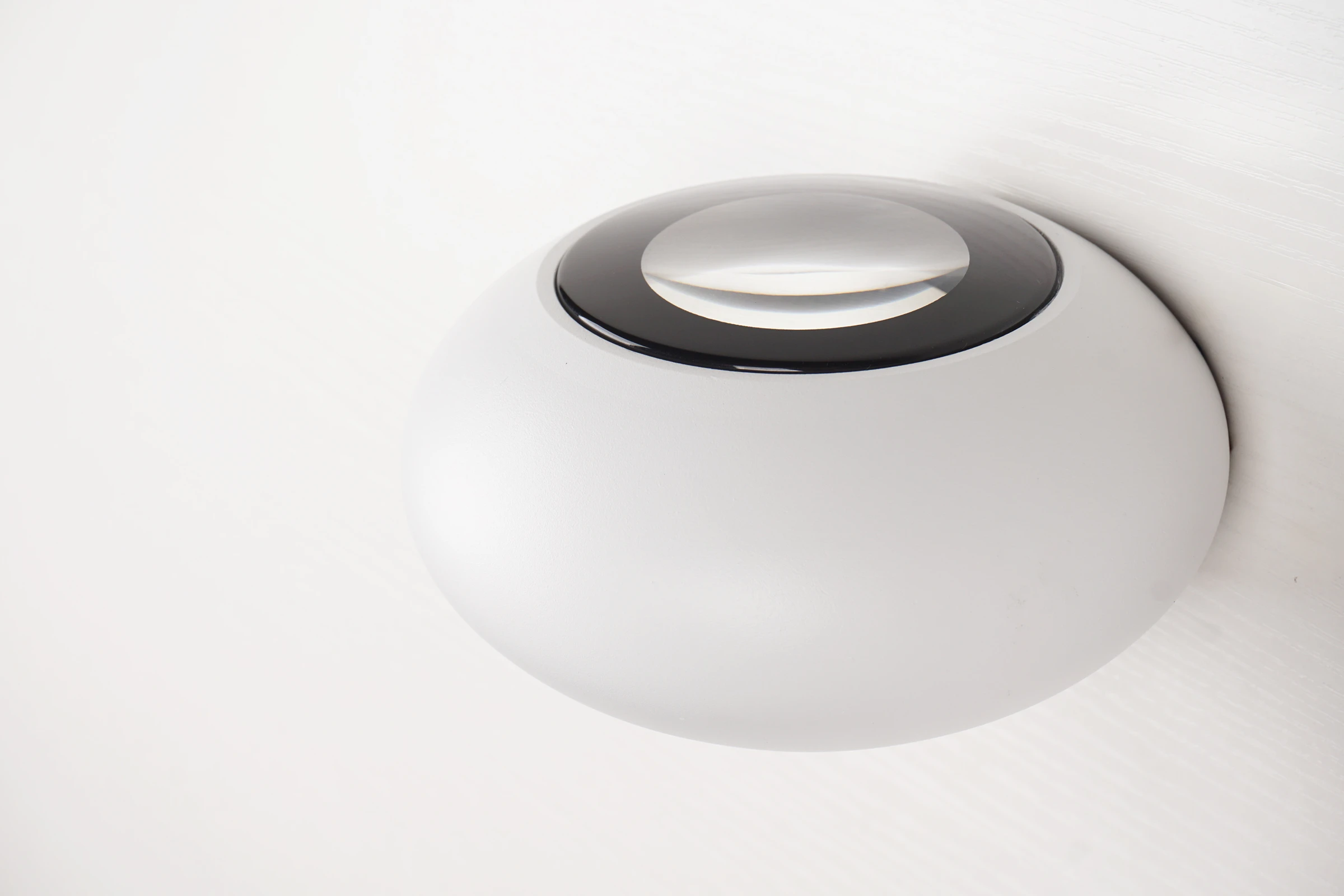

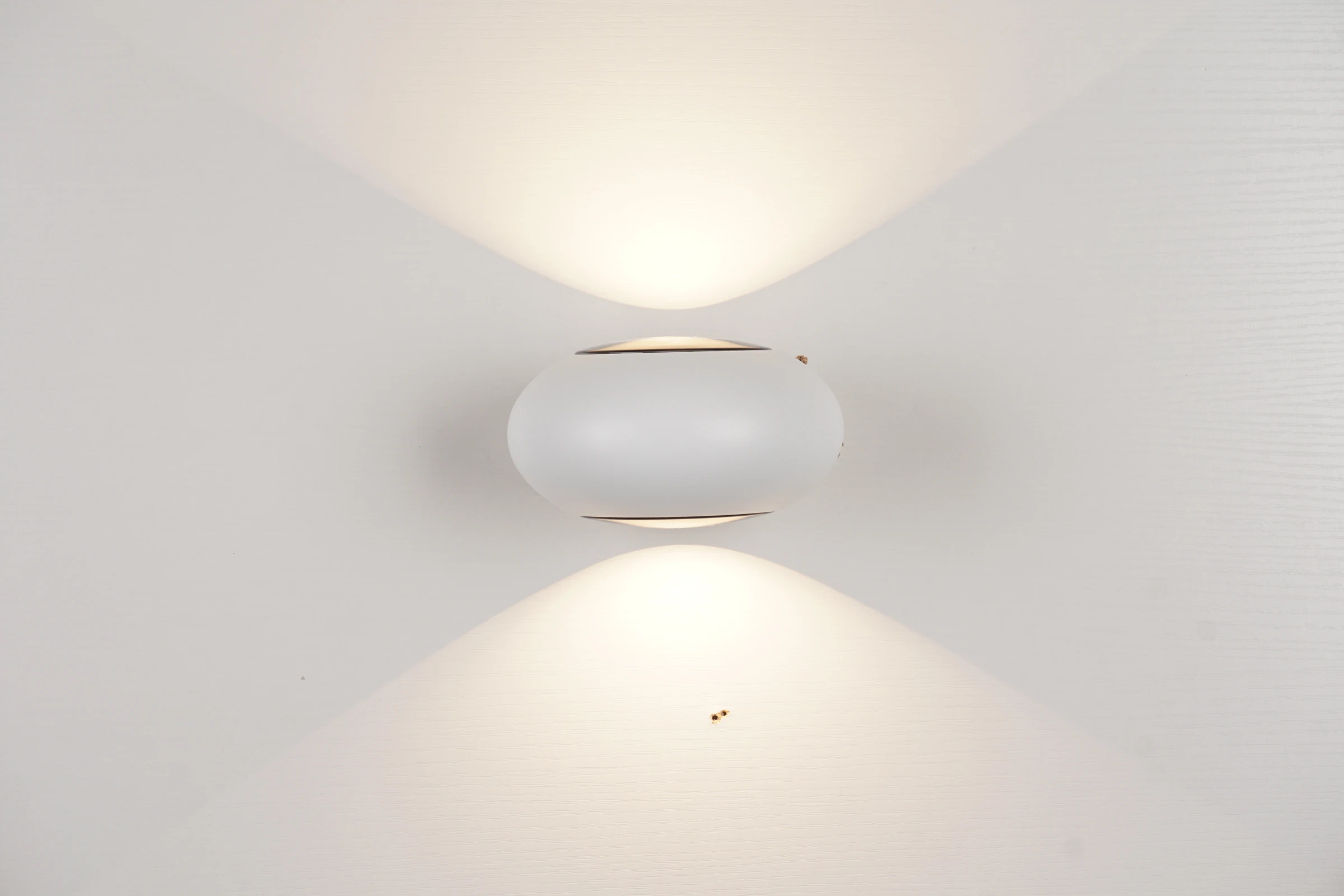

QN 26181-408A Ø134 disc pressed close to the wall, spreading light 110° up and 110° down in two broad arcs — the soft, wide wash that suits a rendered façade or a garden wall where a narrow beam would look like a spotlight. The body is sealed to IP65 and finished in a sand texture that hides water marks, and the LED sits deep enough that the fitting is not a bright object when seen from the garden. Finished in Sandy White.

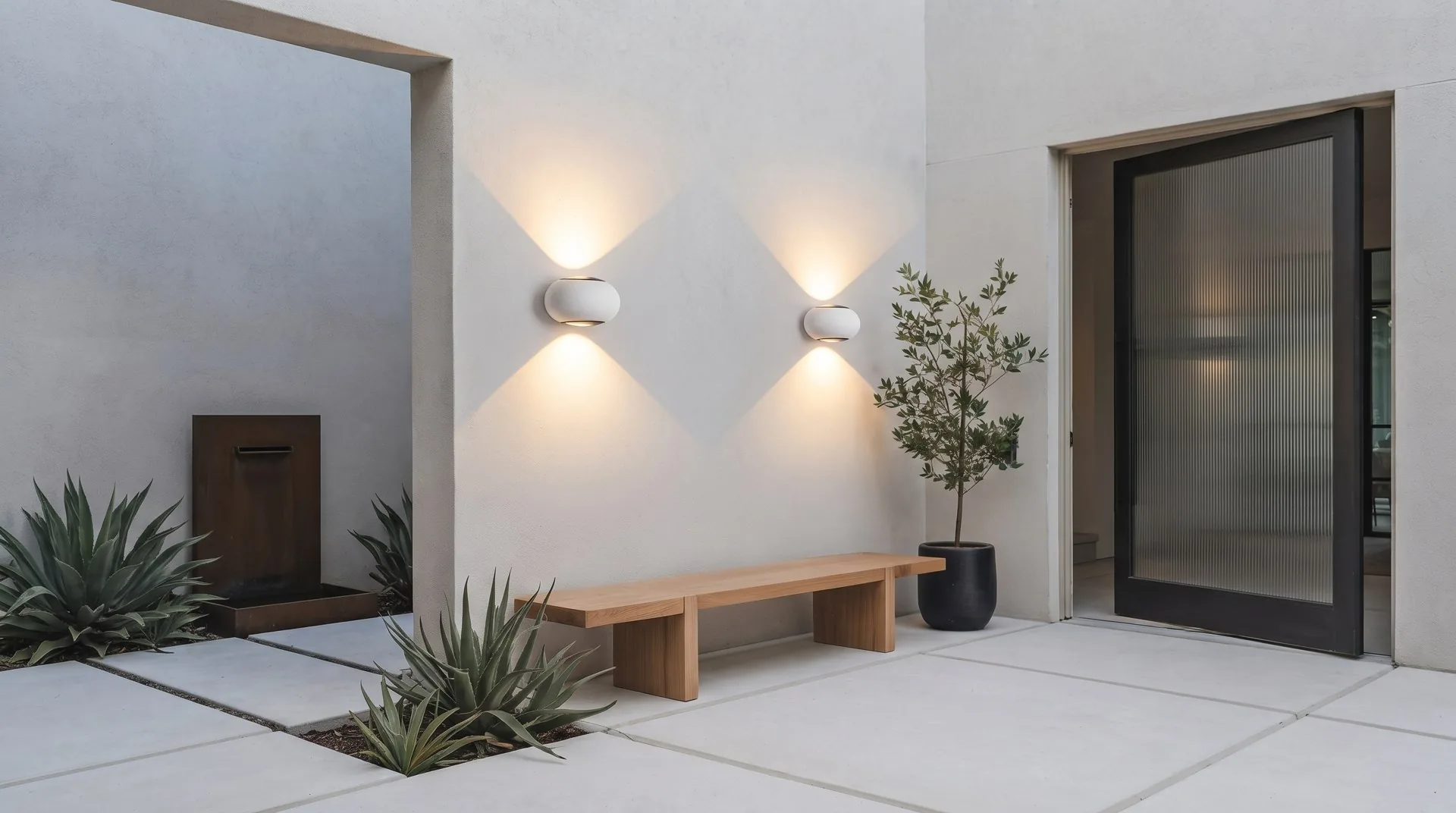

White Dome Outdoor Wall Light (QN 26181-408) is built as a wall luminaire and specified at LED 2×6W, with 3000K (4000K / 6500K on request), a colour rendering index of CRI 90 and IP65 ingress protection. It is finished in Sandy White, and is typically specified for facade, garden, terrace, entrance schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 427lm (vendor test, 3000K) |
| CCT, K | 3000K (4000K / 6500K on request) |
| Power consumption, W | 2×6W (11.3W in vendor test) · 85–265V ~ 50/60Hz |
| Color rendering (CRI) | 90 |
| Light source | SMD LED |
| IP Code | IP65 |
| Size | Ø 134 × H 75 |
| Finishes | Sandy White · Sandy Black |
Applications
Configure Dome
Dimensions & mounting
| Mounting | Surface · wall |
| Dimensions, mm | Ø 134 × H 75 |
| Case material | Aluminum |
| Working temperature | −10°C to +45°C |
| Warranty | 3 years |
Light distribution — cd/klm
