IDA series · Wall uplight
Black IDA Wall Light

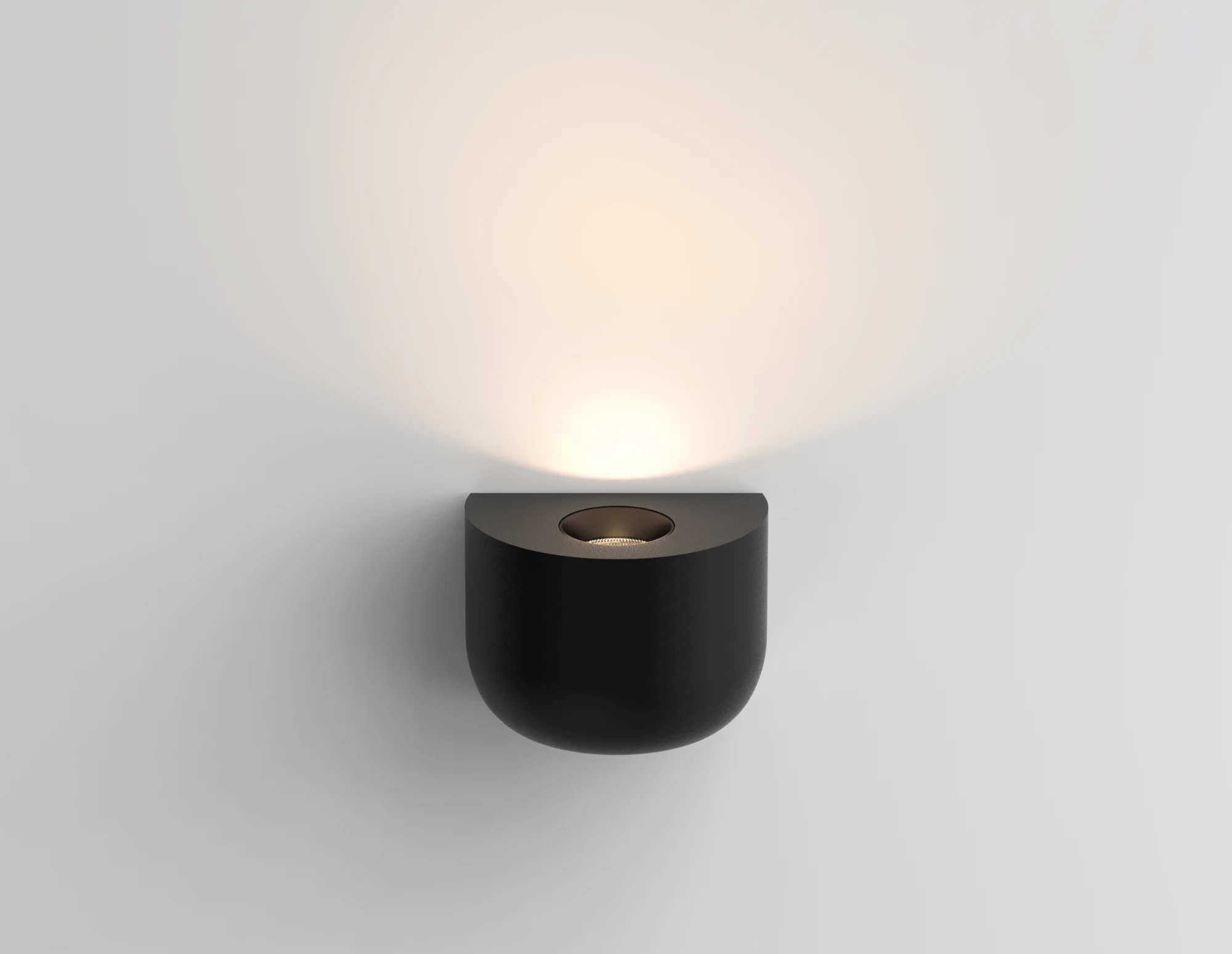

QN 38132-021A sculpted uplight cube in Sandy Black with a soft, sweeping wash. Interchangeable beam optics — 15° / 24° / 36° / 60° — for stairs, corridors and bedside walls.
Black IDA Wall Light (QN 38132-021) is built as a wall luminaire and specified at LED 8W, with 3000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy Black, and is typically specified for residential, hotel schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 640lm |
| CCT, K | 3000K |
| Power consumption, W | 8W · 36V / 200mA |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <10 |
| IP Code | IP20 |
| Size | W 100 × H 75 × D 63 |

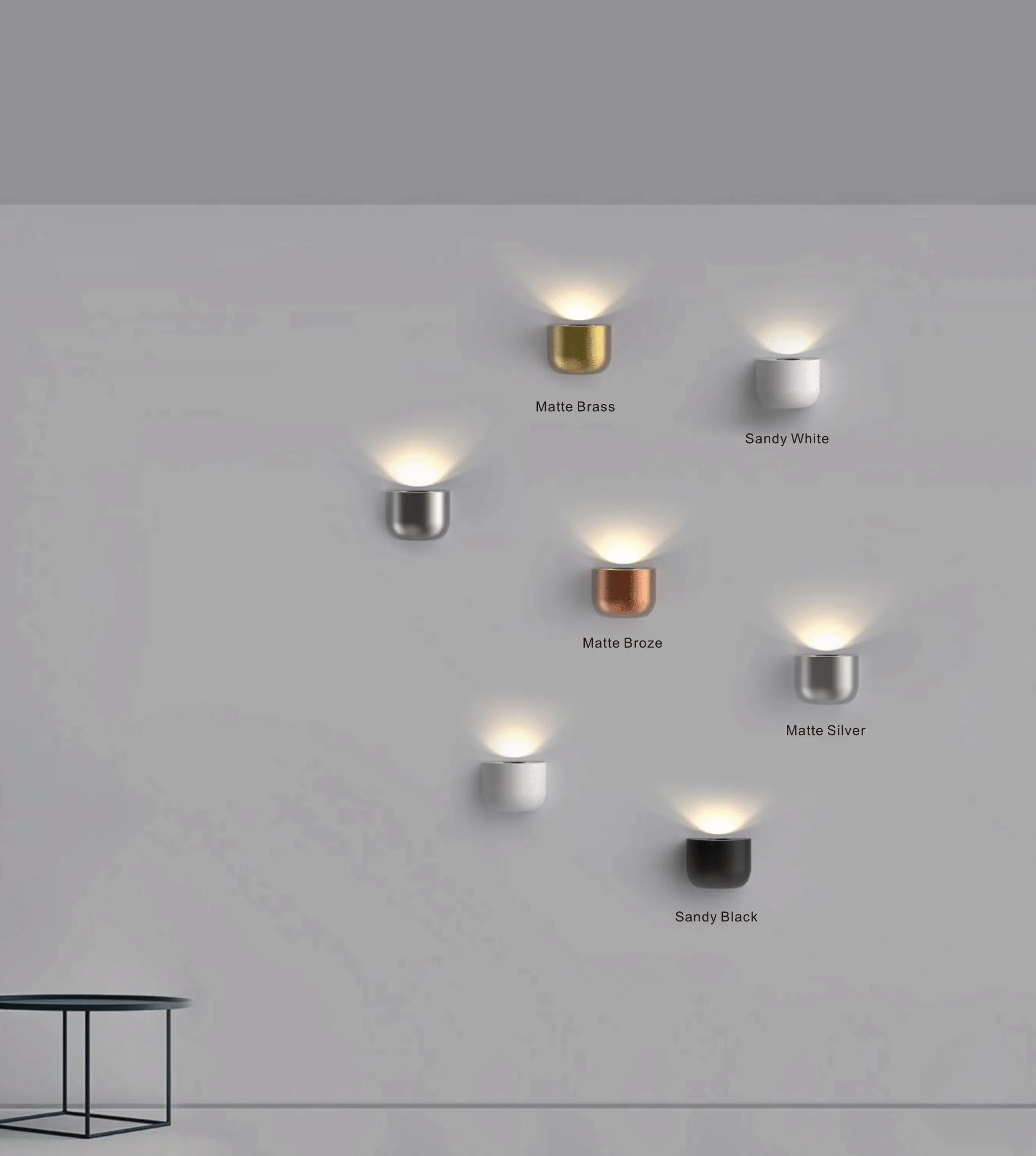

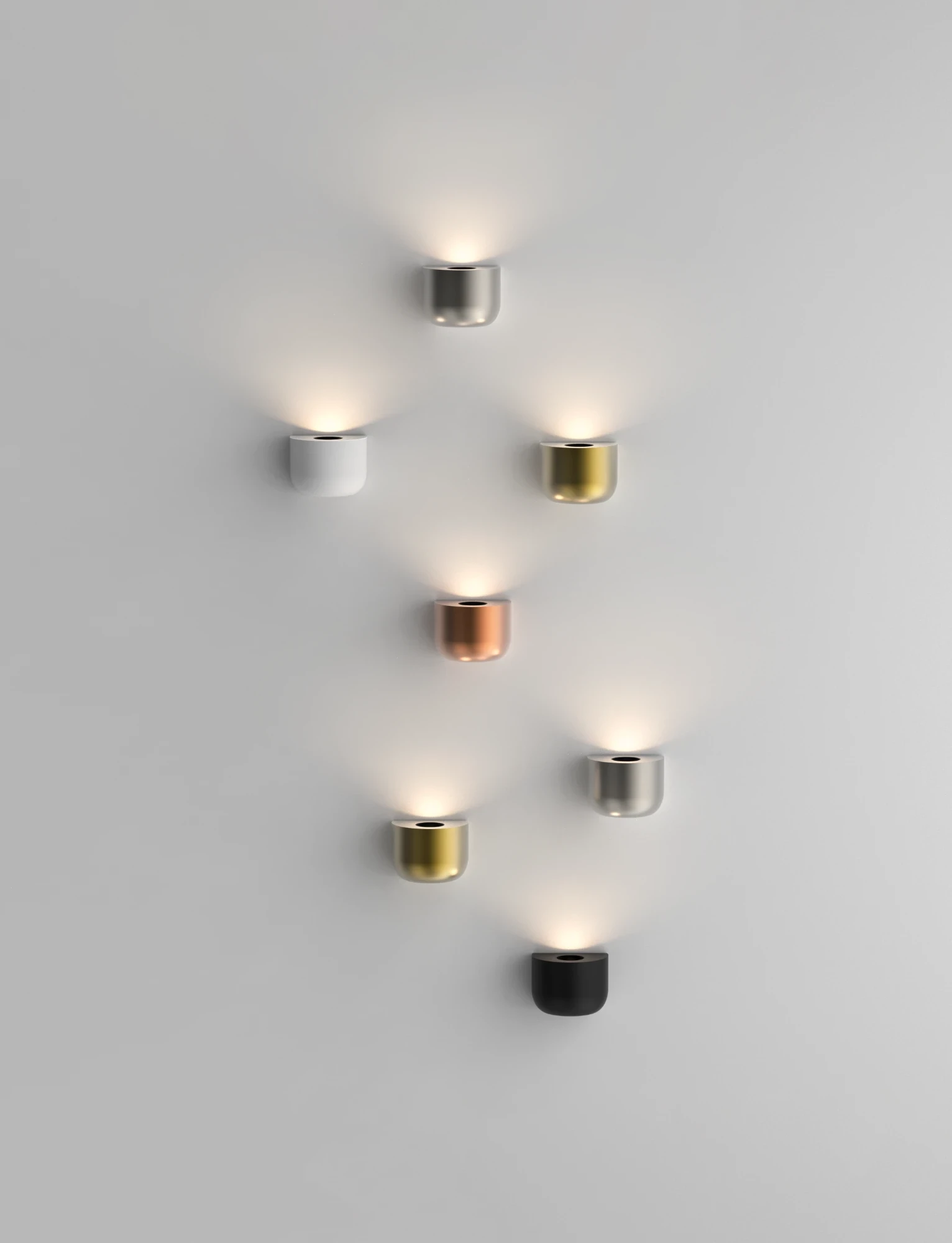

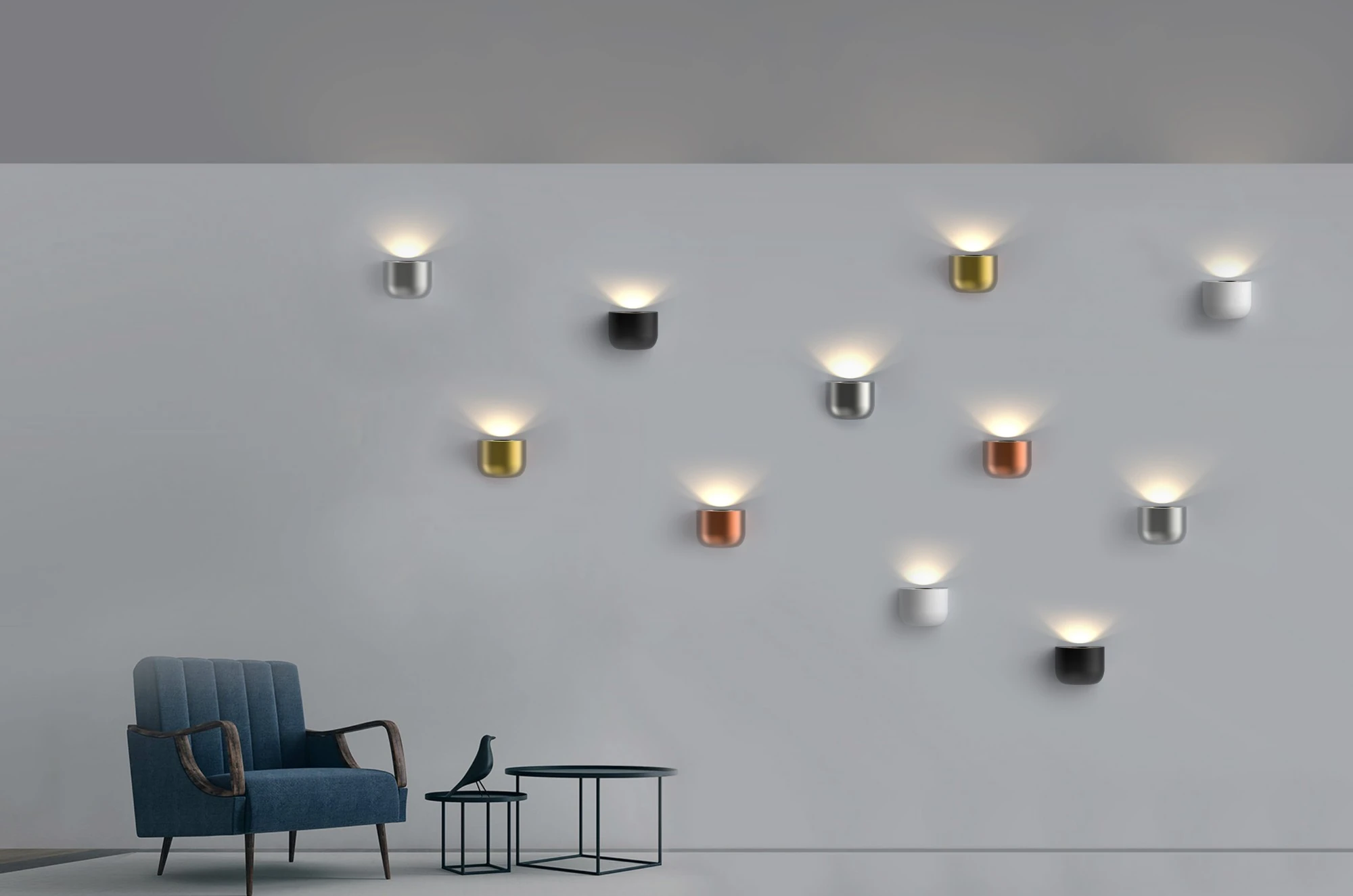

| Finishes | Sandy Black · Sandy White · Matte Silver · Matte Brass · Matte Bronze |
Applications
ResidentialHotel
Configure IDA
Dimensions & mounting
| Mounting | Wall |
| Dimensions, mm | W 100 × H 75 × D 63 |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
C0 / C180 — 24° optic
