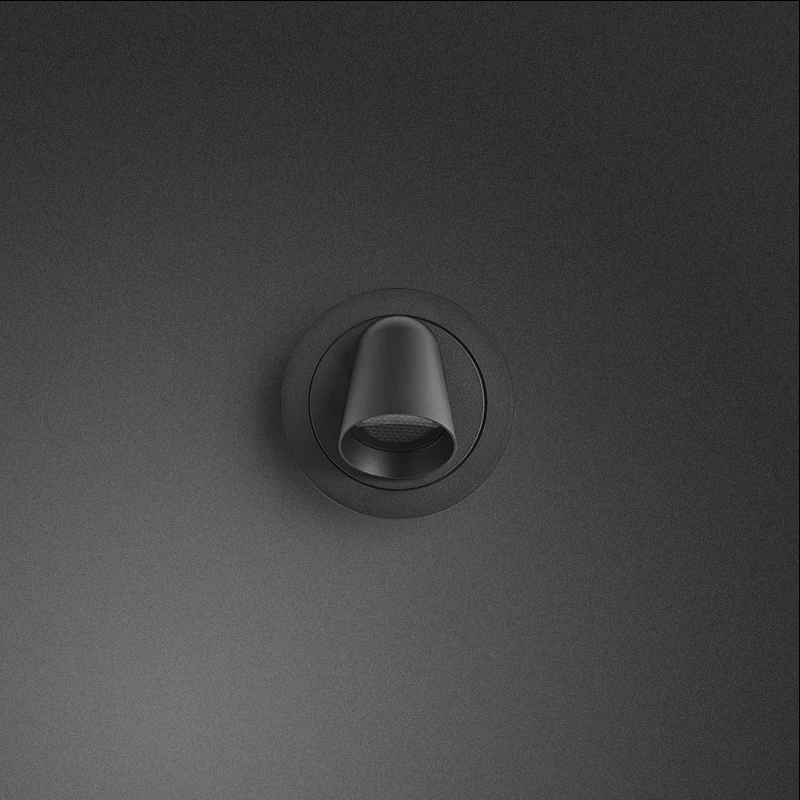

Black Iris Wall Light
QN 38342-398A Ø119 disc that sits almost flush against the wall with an adjustable eye set into it — the beam swings within the housing so the aperture can be aimed at a picture, a stair nosing or a doorway after the fitting is already fixed. The 24° optic and CRI 90 source keep the pool tight and true; the ø75 cut-out hides the gear box behind the plaster line. IP55 covers bathrooms, covered terraces and circulation exposed to splash. Finished in Sandy Black.
Black Iris Wall Light (QN 38342-398) is built as a wall luminaire and specified at LED 10W, with 3000K (4000K / 6500K on request), a colour rendering index of CRI 90 and IP55 ingress protection. It is finished in Sandy Black, and is typically specified for residential, hotel, corridor, bathroom schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Luminous flux, lm | 347lm (vendor, 3000K) |
| CCT, K | 3000K (4000K / 6500K on request) |
| Power consumption, W | 10W · 220–240V ~ 50/60Hz |
| Color rendering (CRI) | 90 |
| Light source | COB LED |
| IP Code | IP55 |
| Size · cut-out | Ø 119 × H 120 · Cut-out Ø 75 |
| Finishes | Sandy Black · Sandy White |
Applications
Configure Iris
Dimensions & mounting
| Mounting | Recessed box · wall |
| Cut-out, mm | Ø 75 |
| Dimensions, mm | Ø 119 × H 120 |
| Adjustment | Tilting eye |
| Case material | Aluminum |
| Working temperature | −10°C to +45°C |
| Warranty | 3 years |
Light distribution — cd/klm
