Lily Garden Pole

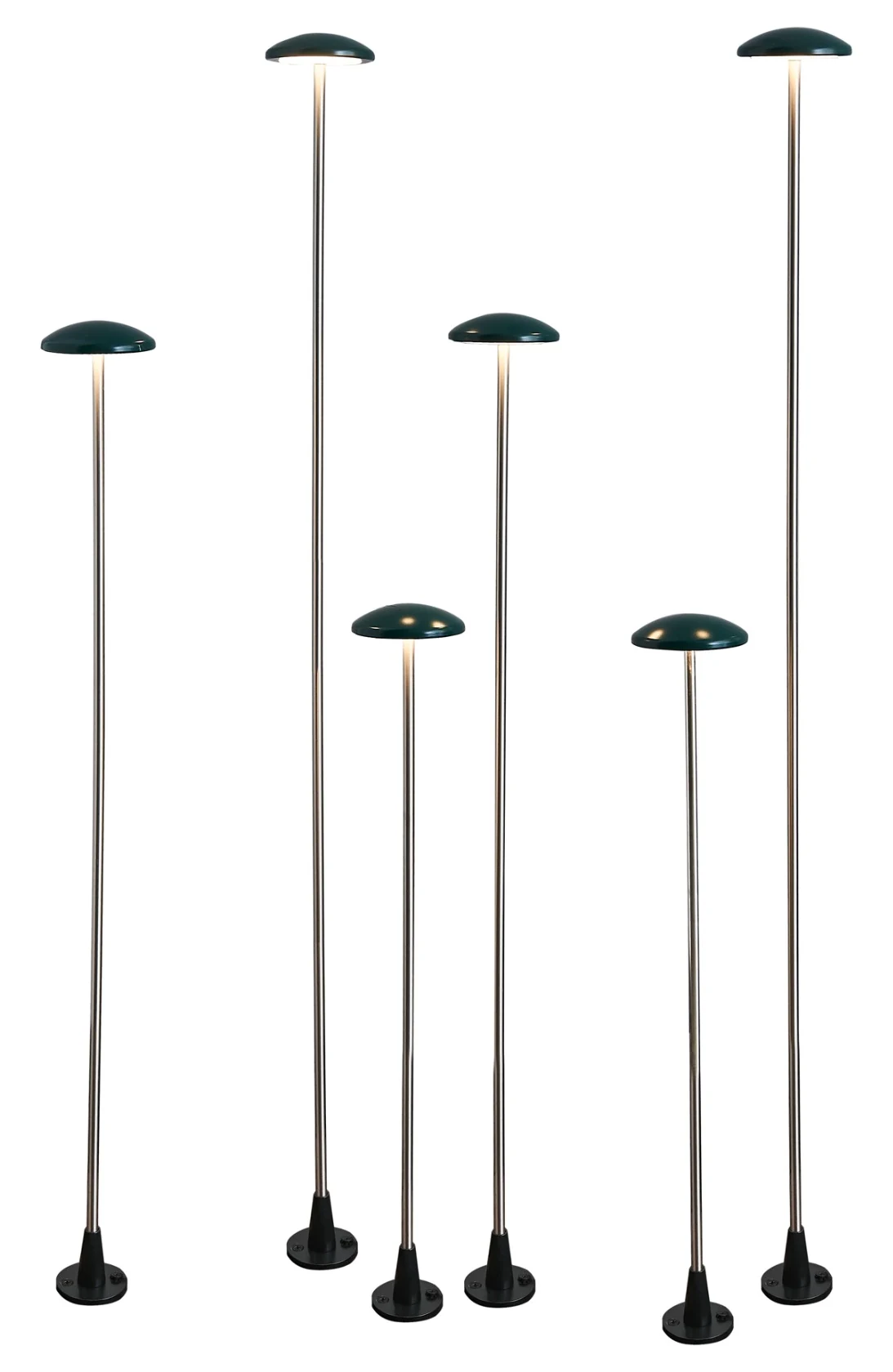

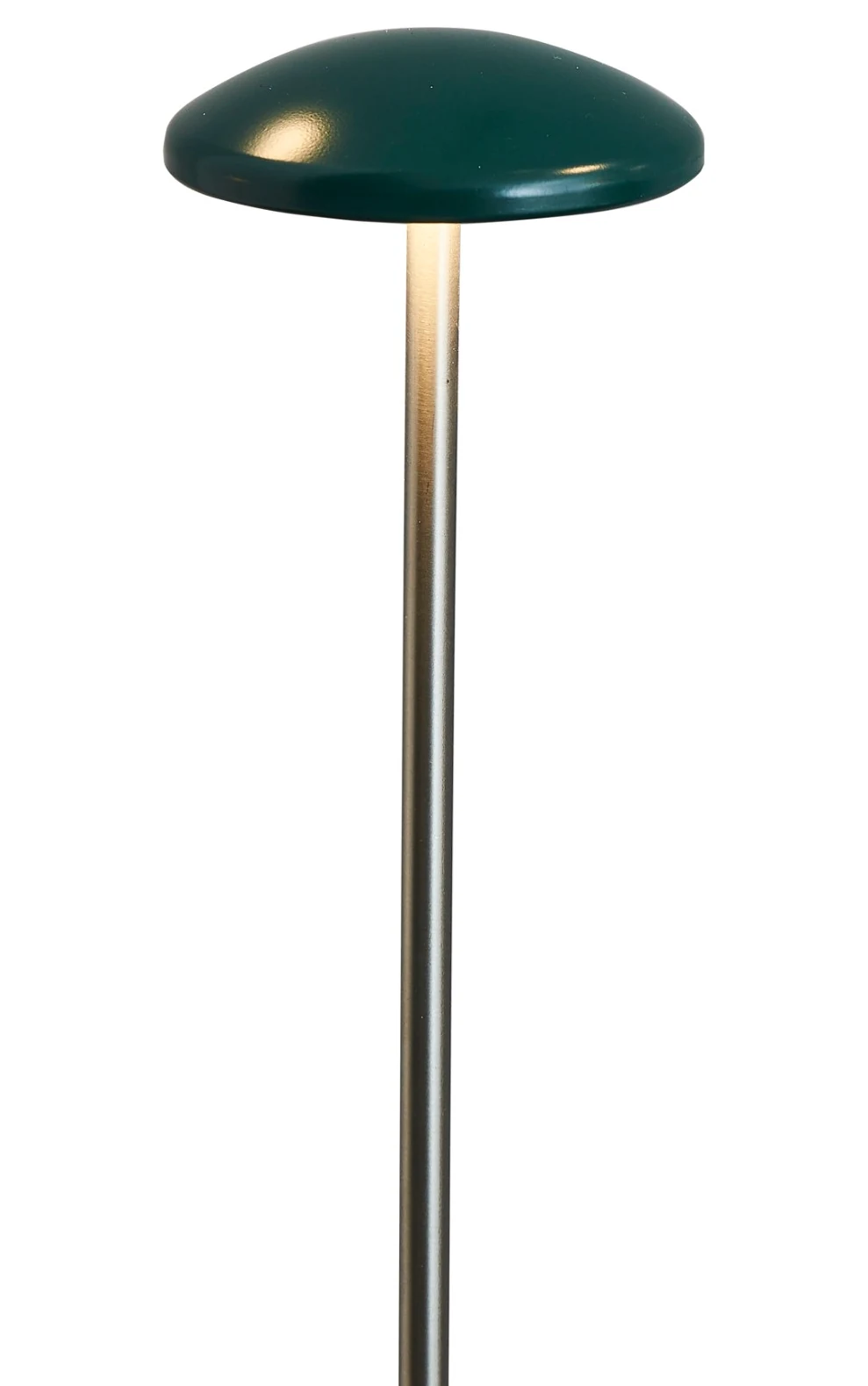

QN 26213-179A shallow Ø 80 mm saucer resting on a slim matt nickel stem — a pad of matt green floating over the planting, with the light entirely hidden beneath it. The wider shade spreads the same 180° downlight over a broader and gentler circle than a domed cap would, so at 5 W it covers the full width of a path or a bed edge in one soft wash rather than a tight pool. Three stem heights — 520, 720 and 920 mm — set how wide that circle falls. IP65 and 24 V SELV throughout, so a whole garden circuit stays low-voltage.
Lily Garden Pole (QN 26213-179) is built as a base plate luminaire and specified at LED 5W, with 3000K, a colour rendering index of CRI ≥90 and IP65 ingress protection. It is finished in Matt Green, and is typically specified for landscape, residential, hotel, restaurant schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Luminous flux, lm | — |
| CCT, K | 3000K |
| Power consumption, W | 5W · 24V DC |
| Color rendering (CRI) | ≥90 |
| IP Code | IP65 |
| Size · cut-out | Ø 80 × H 520 |
| Finishes |
Applications
Configure Lily
Size
Dimensions & mounting
| Mounting | Base plate · fixed |
| Dimensions, mm | Ø 80 × H 520 |
| Case material | Aluminium shade · PMMA diffuser · stainless steel stem |
