Retro series · Track head
White Retro Track Spot

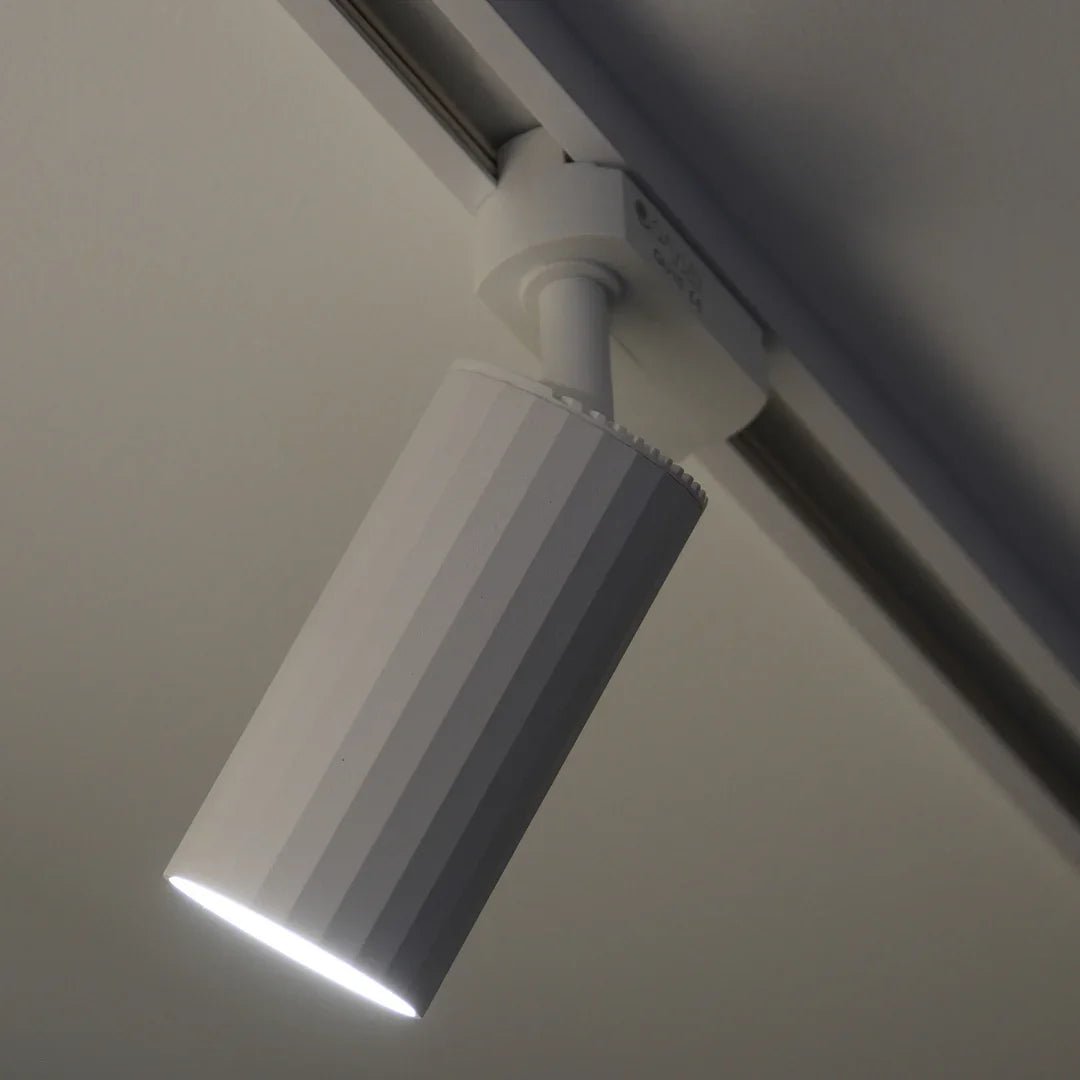

QV 15201-021The knurled Retro cylinder as a track head — matches the Retro surface spot for schemes that mix track and fixed points.
White Retro Track Spot (QV 15201-021) is built as a track luminaire and specified at GU10 max 50W, with IP20 ingress protection. It is finished in Sandy White, and is typically specified for retail, gallery, office schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Availability | Made to order |
| Luminous flux, lm | Lamp dependent |
| Power consumption, W | Lamp dependent · 220–240V |
| Color rendering (CRI) | Lamp dependent |
| IP Code | IP20 |
| Size | Ø 55 × H 110 |

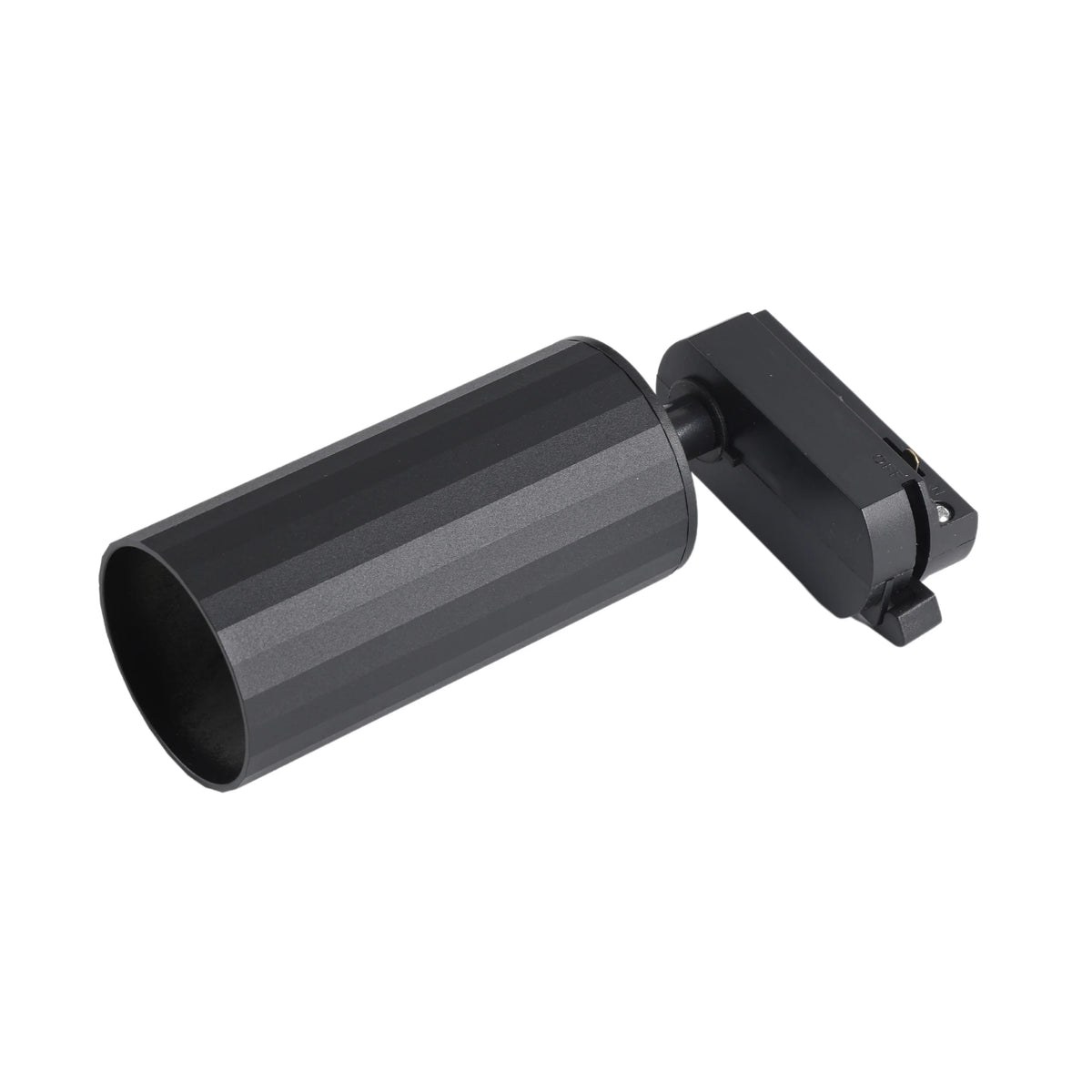

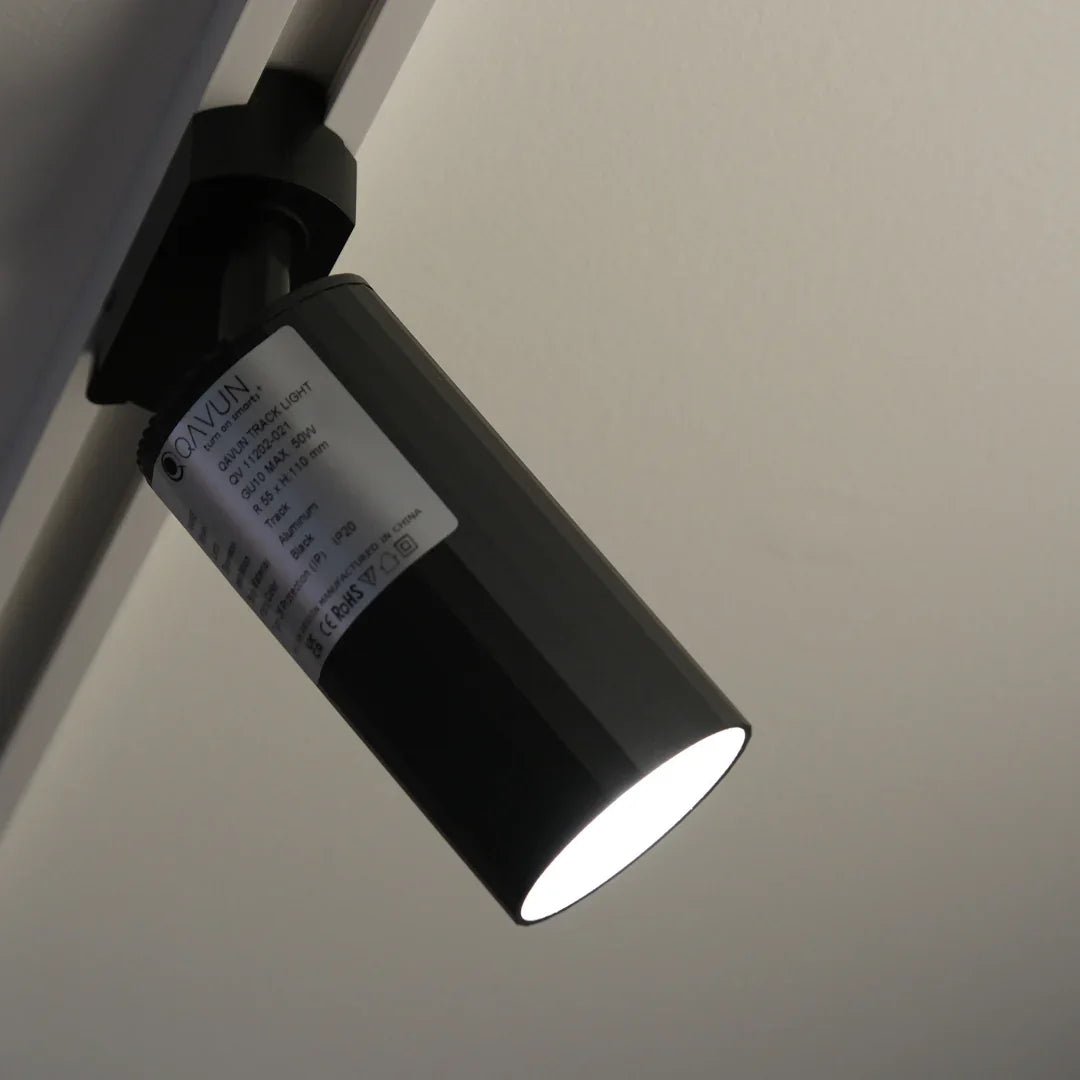

| Finishes | Sandy White · Sandy Black |
Applications
RetailGalleryOffice
Configure Retro
Your configuration
CodeQV 15201-021
FinishSandy White
AvailabilityMade to order
PriceSign in to view
Dimensions & mounting
| Mounting | 1-circuit track |
| Dimensions, mm | Ø 55 × H 110 |
| Adjustment | Rotate · tilt |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
C0 / C180 — lamp dependent
Downloads
Datasheet (PDF)↓ DownloadPhotometry (IES / LDT)Request file →2D / DWGRequest file →3D model (simplified) — STEP↓ Download3D model (simplified) — OBJ↓ Download3D model (simplified) — DXF↓ DownloadInstallation sheet (PDF)↓ DownloadMounting guideRequest file →
Datasheet (PDF)↓ DownloadPhotometry (IES / LDT)Request file →2D / DWGRequest file →3D model (simplified) — STEP↓ Download3D model (simplified) — OBJ↓ Download3D model (simplified) — DXF↓ DownloadInstallation sheet (PDF)↓ DownloadMounting guideRequest file →
The simplified 3D model is an envelope generated from the published dimensions for layout and clash checks; it carries no optics, driver or fixing detail. The manufacturer's CAD is supplied on request.
