Ripple series · Fluted glass

White Ripple Wall Light

QN 26131-039

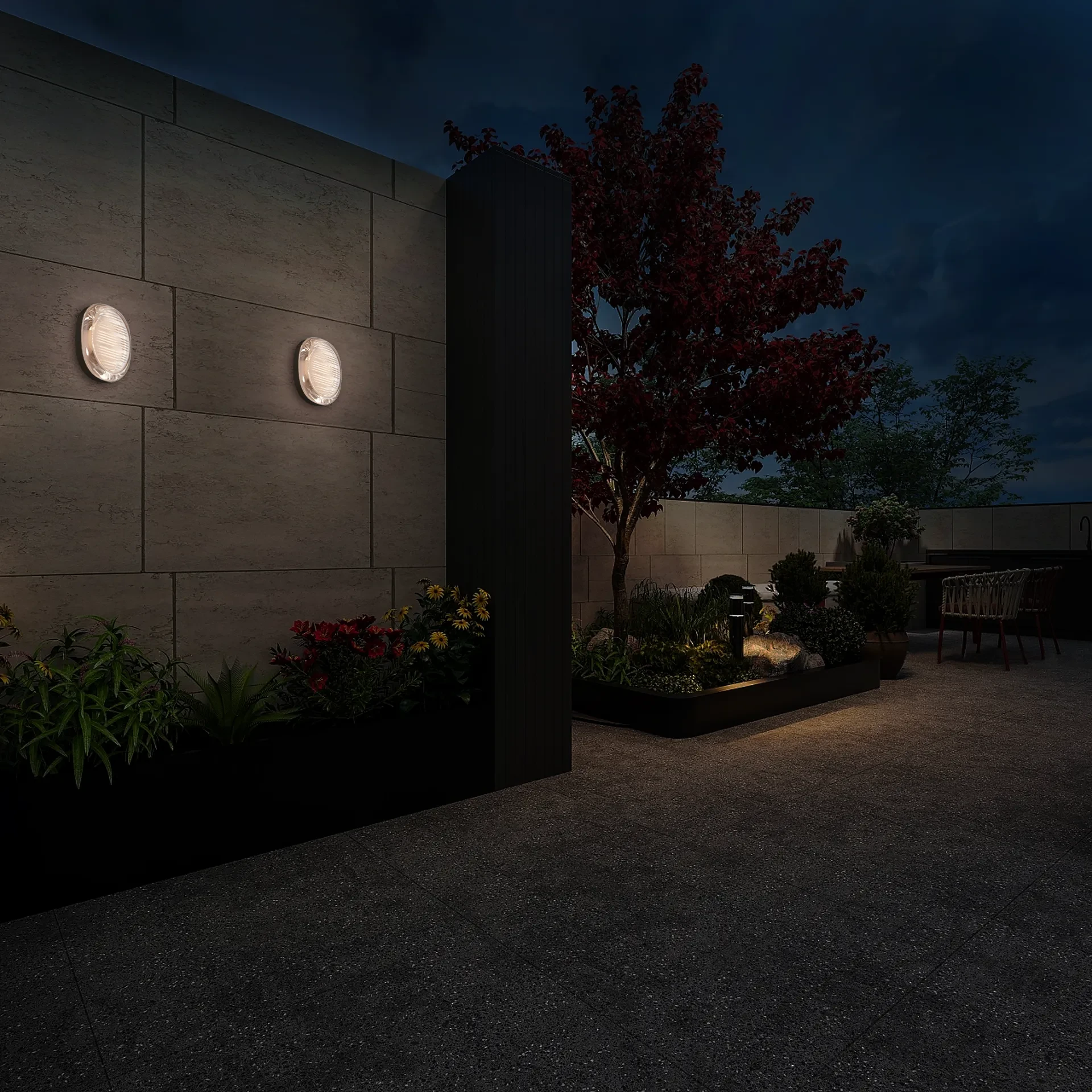

An outdoor wall light with a fluted glass body in the White glass colour. The ribbed diffuser breaks the light into fine vertical lines — a sculptural object by day, a warm pool of light after dark. The 120° spread washes the wall in soft ambient light, and the IP65 rating carries it onto facades, terraces, balconies and entrance canopies. The four glass colours combine freely, so a mixed run can set a rhythm across a facade.

White Ripple Wall Light (QN 26131-039) is built as a wall luminaire and specified at LED 12W, with 3000K, a colour rendering index of CRI ≥90 and IP65 ingress protection. It is finished in White, and is typically specified for residential, hotel, restaurant, landscape schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.

Luminous flux, lm
CCT, K 3000K
Power consumption, W12W · 36V / 300mA
Color rendering (CRI)≥90
Glare rating (UGR)
IP CodeIP65
Size130 × 130 × 68
Glass colour White · Champagne · Green

Applications

ResidentialHotelRestaurantLandscape

Configure Ripple

Glass colour — White

Your configuration

CodeQN 26131-039
Glass colourWhite

Dimensions & mounting

130 × 130 D 68
MountingWall
Dimensions, mm130 × 130 × 68
Case materialFluted glass diffuser
Warranty3 years

Light distribution — cd/klm

90° 90°
C0 / C180 — 120°

Driver

External · constant current · on/off — 36V / 300mA
