Air series · Recessed downlight
Air Downlight 15W

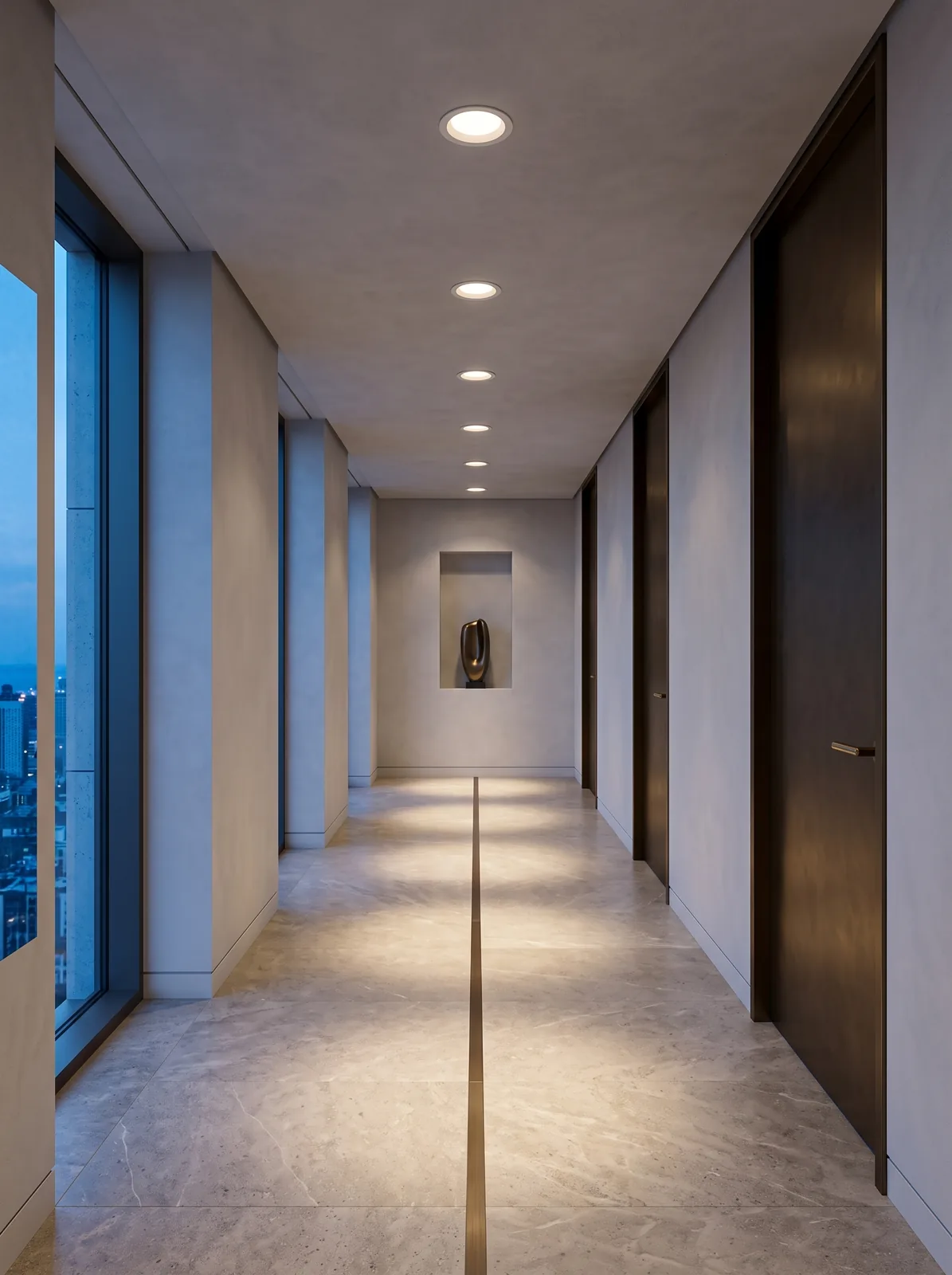

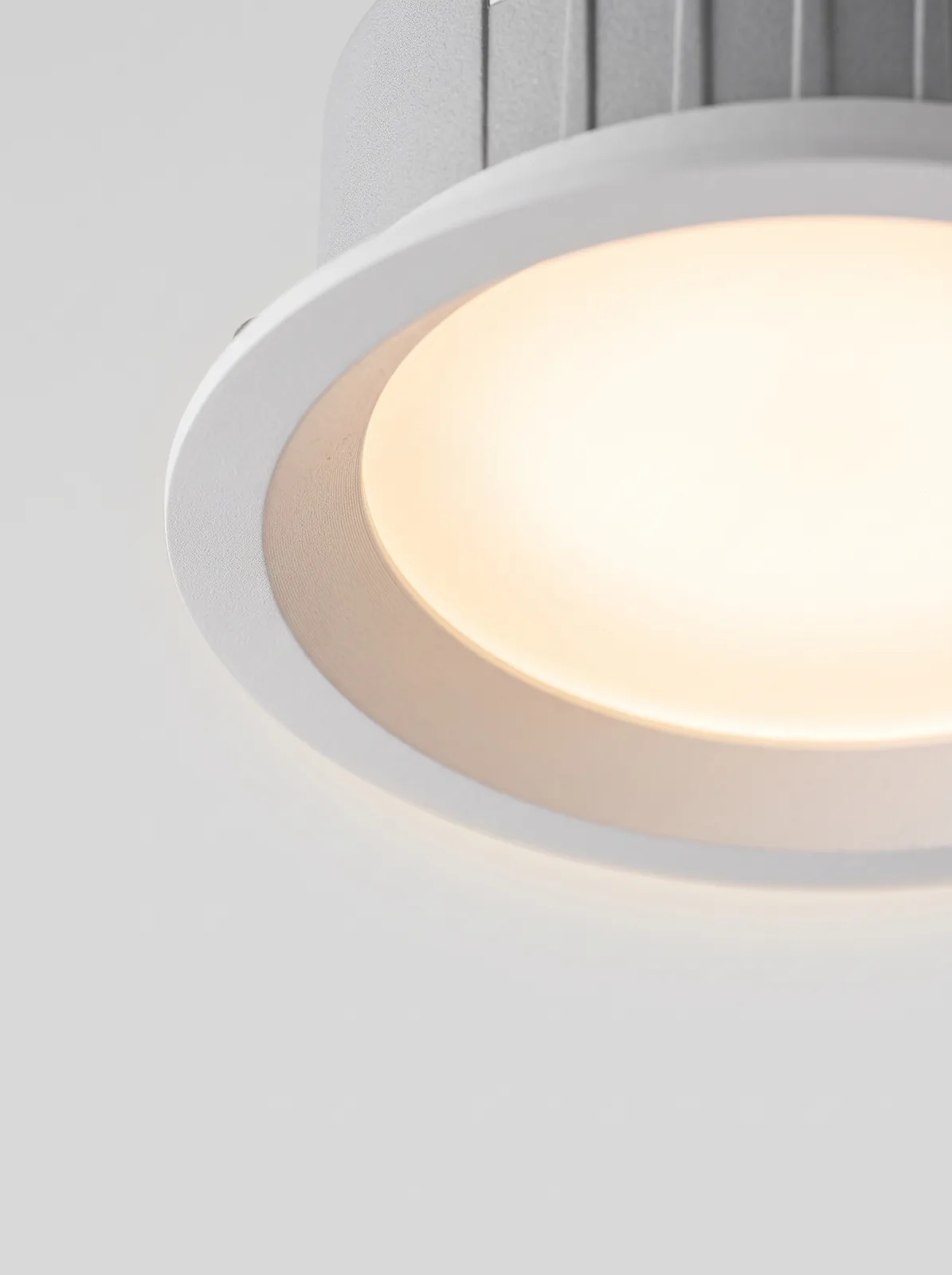

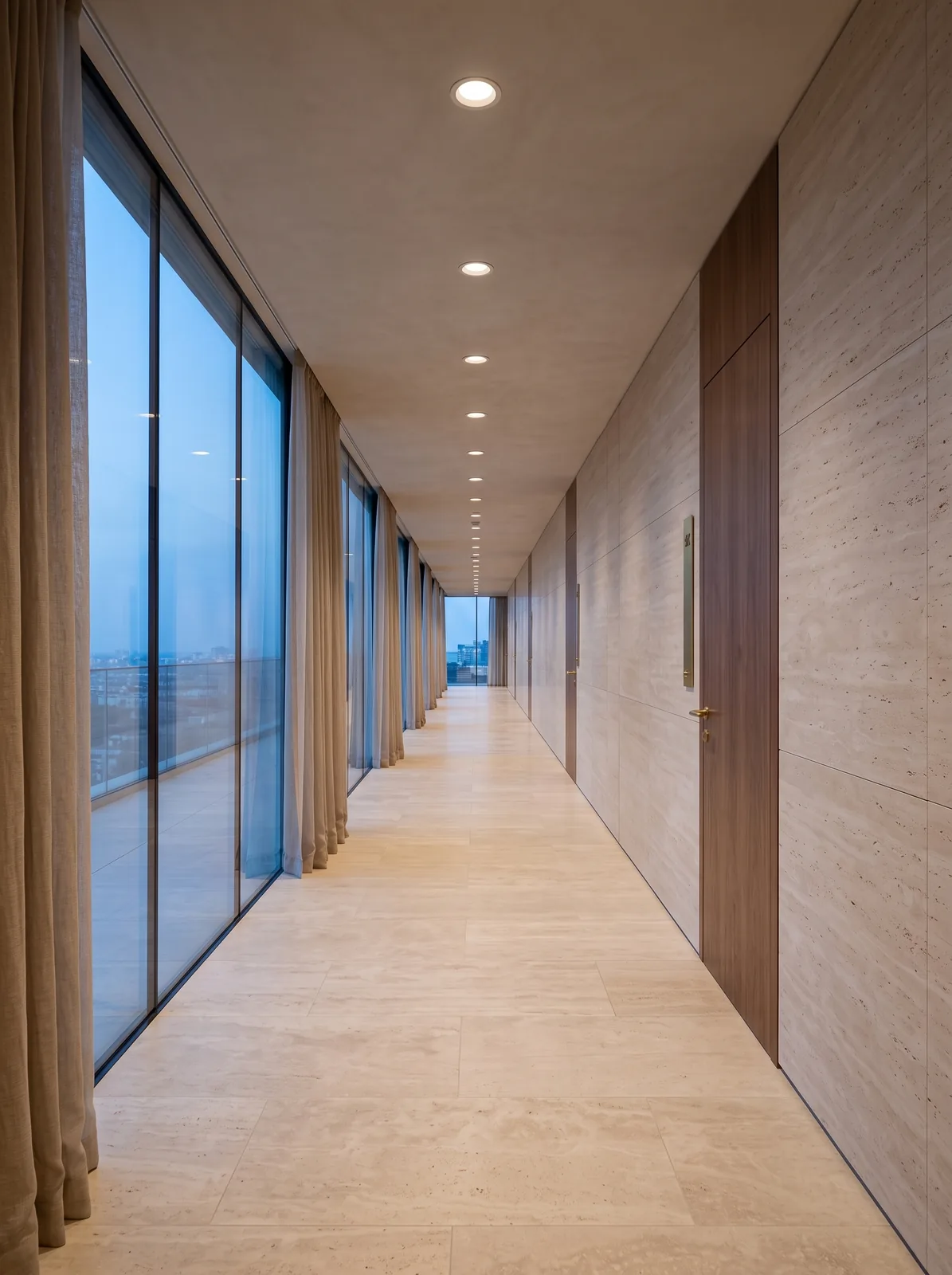

QV 11181-15A slim recessed LED downlight with on-board switchable colour temperature — 3000, 4000 or 6500K, set at installation. The 15W output delivers 1200 lm from a Ø 110 body (Ø 100 cut-out) — corridors, bathrooms and compact rooms.
Air Downlight 15W (QV 11181-15) is built as a recessed luminaire and specified at LED 15W, with 3000/4000/6500K switch, a colour rendering index of CRI ≥80 and IP20 ingress protection. It is finished in Sandy White, and is typically specified for residential, hotel, office schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Luminous flux, lm | 1200lm |
| CCT, K | 3000/4000/6500K switch |
| Power consumption, W | 15W · 220–240V |
| Color rendering (CRI) | ≥80 |
| IP Code | IP20 |
| Size · cut-out | Ø 110 × H 36 · Cut-out Ø 100 |
| Finishes | Sandy White |
Applications

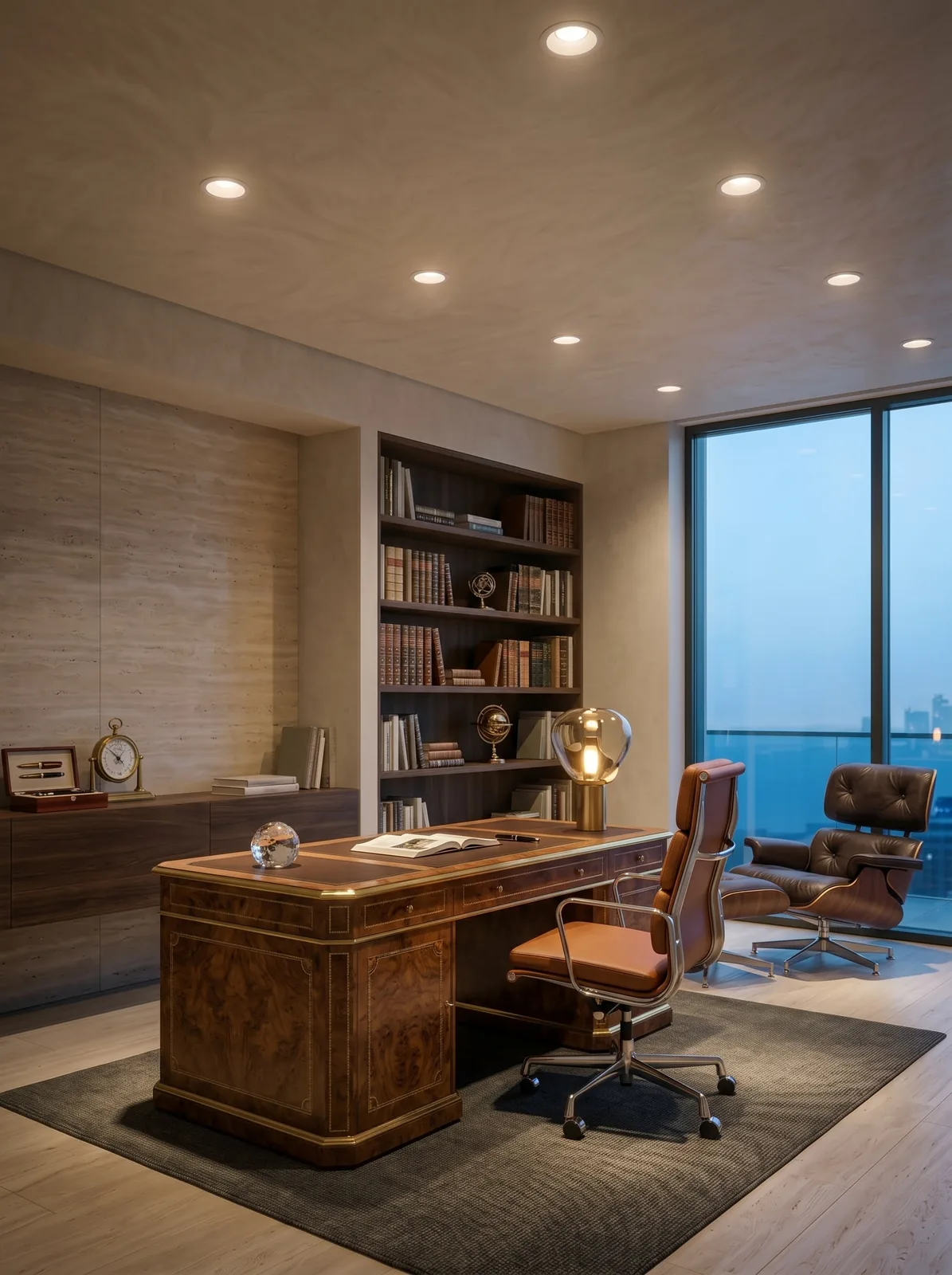

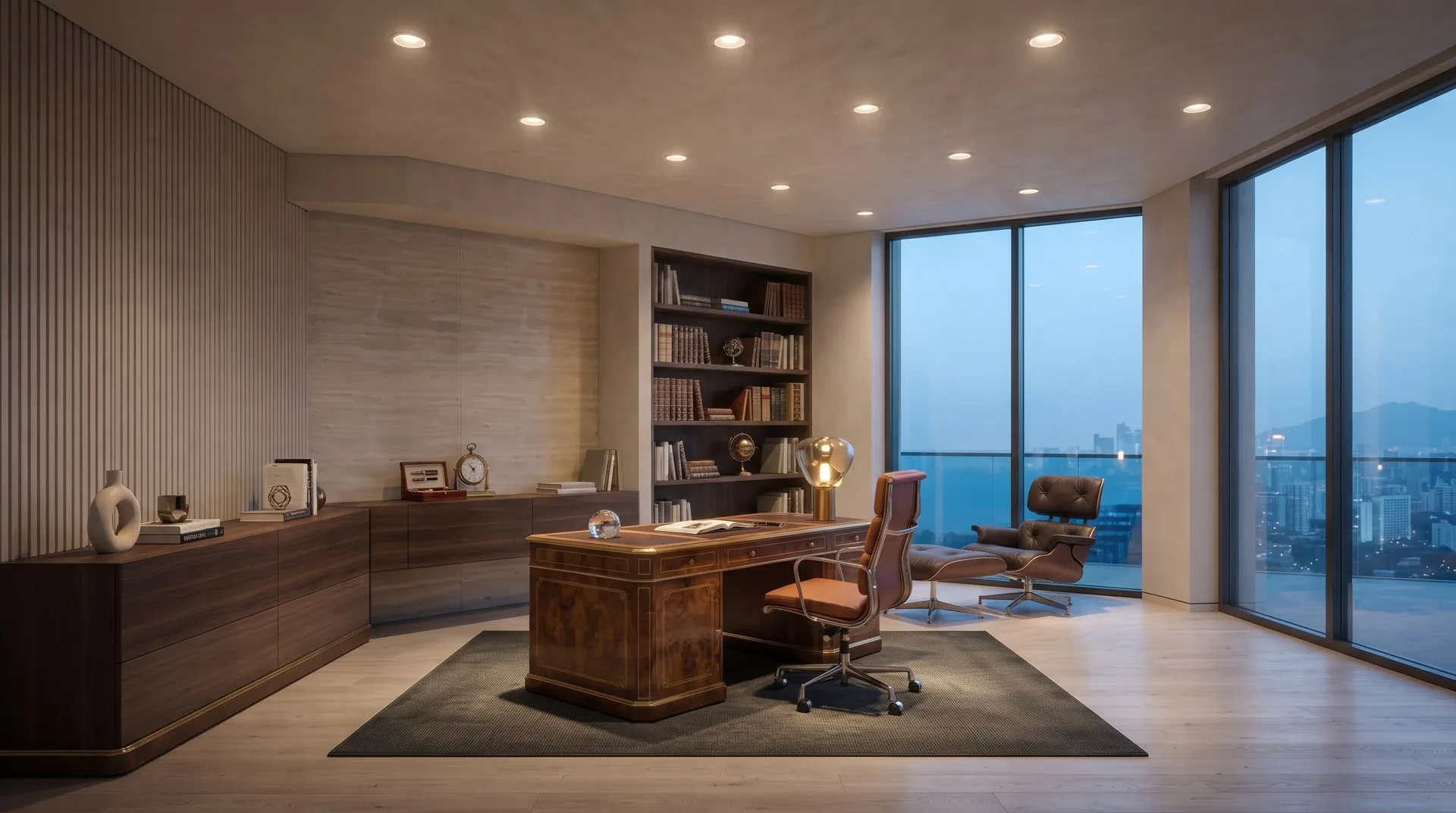

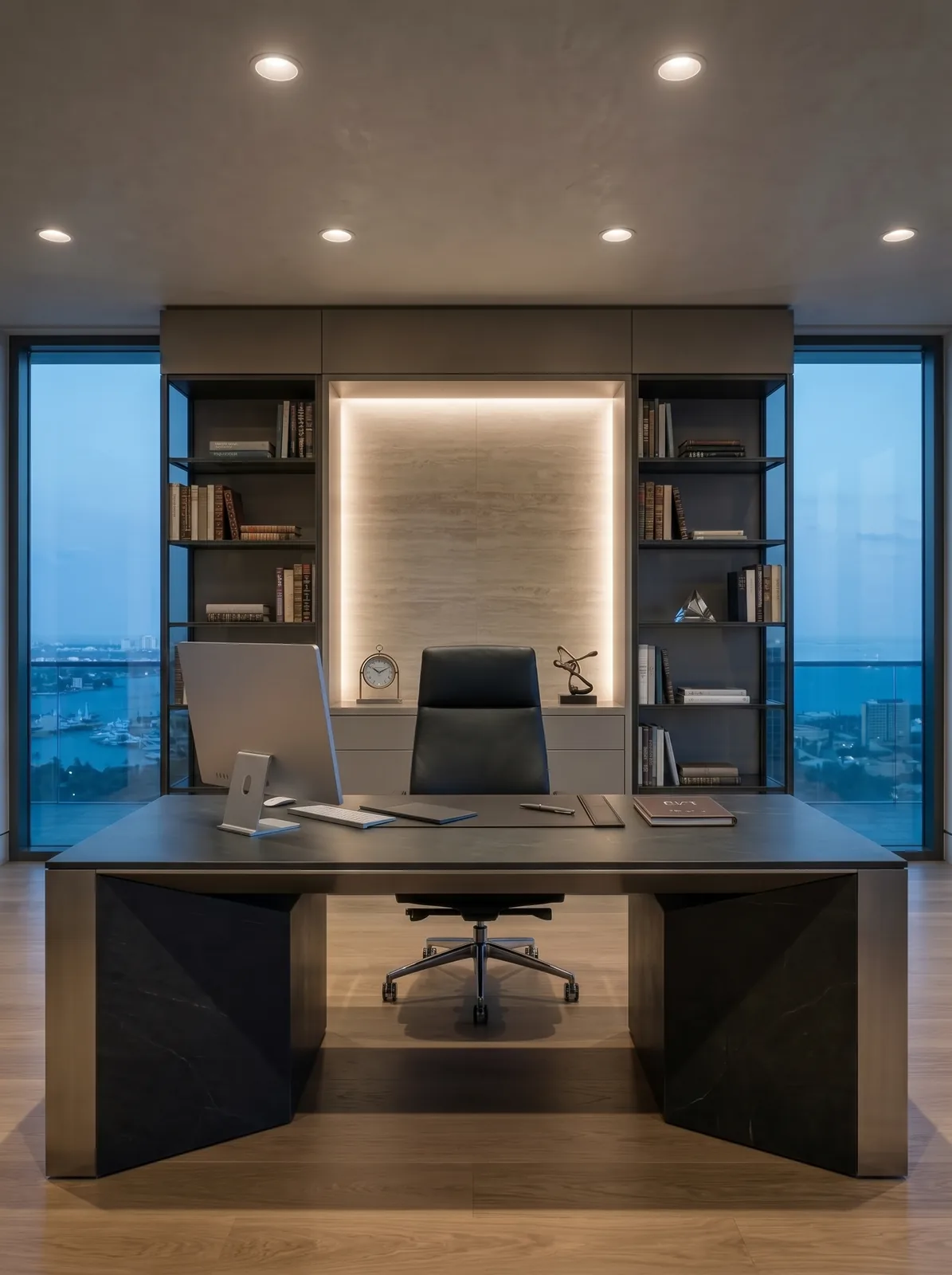

ResidentialHotelOffice
Configure Air
Dimensions & mounting
| Mounting | Recessed |
| Cut-out, mm | Ø 100 |
| Dimensions, mm | Ø 110 × H 36 |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
C0 / C180 — 110°
