Air series · Recessed downlight
Air Downlight 20W

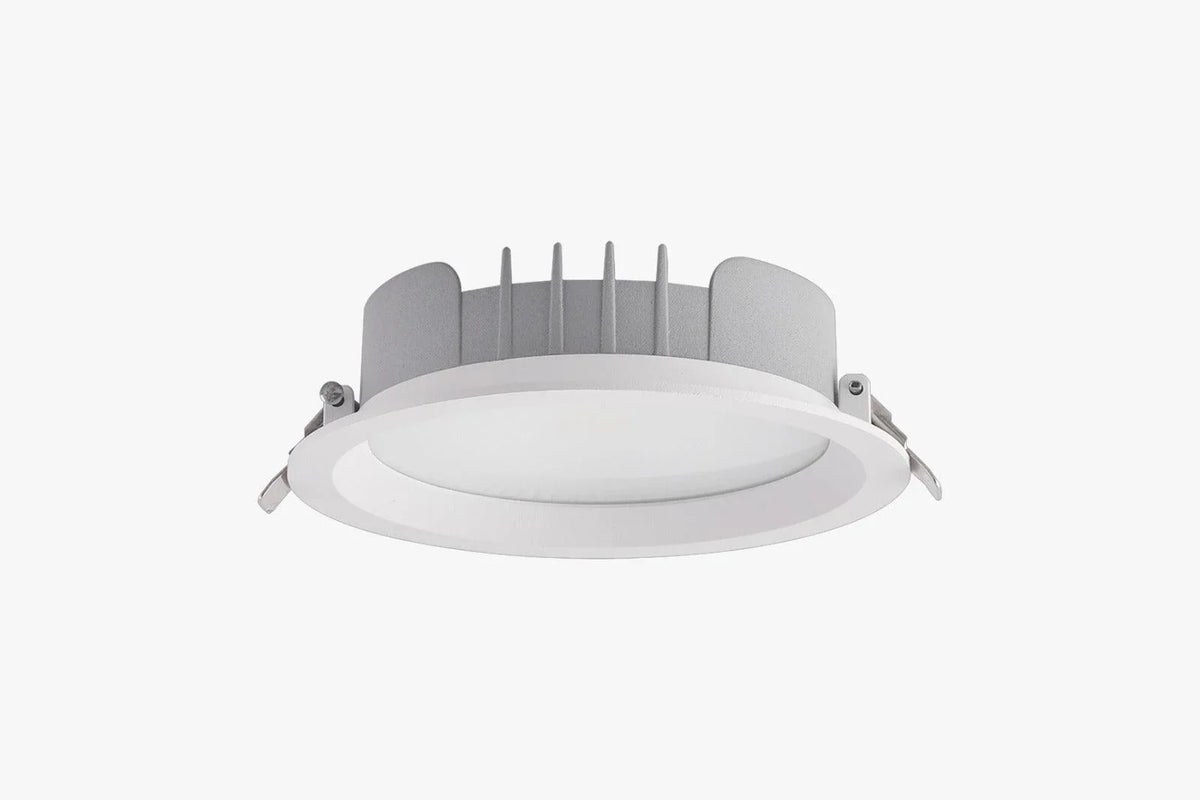

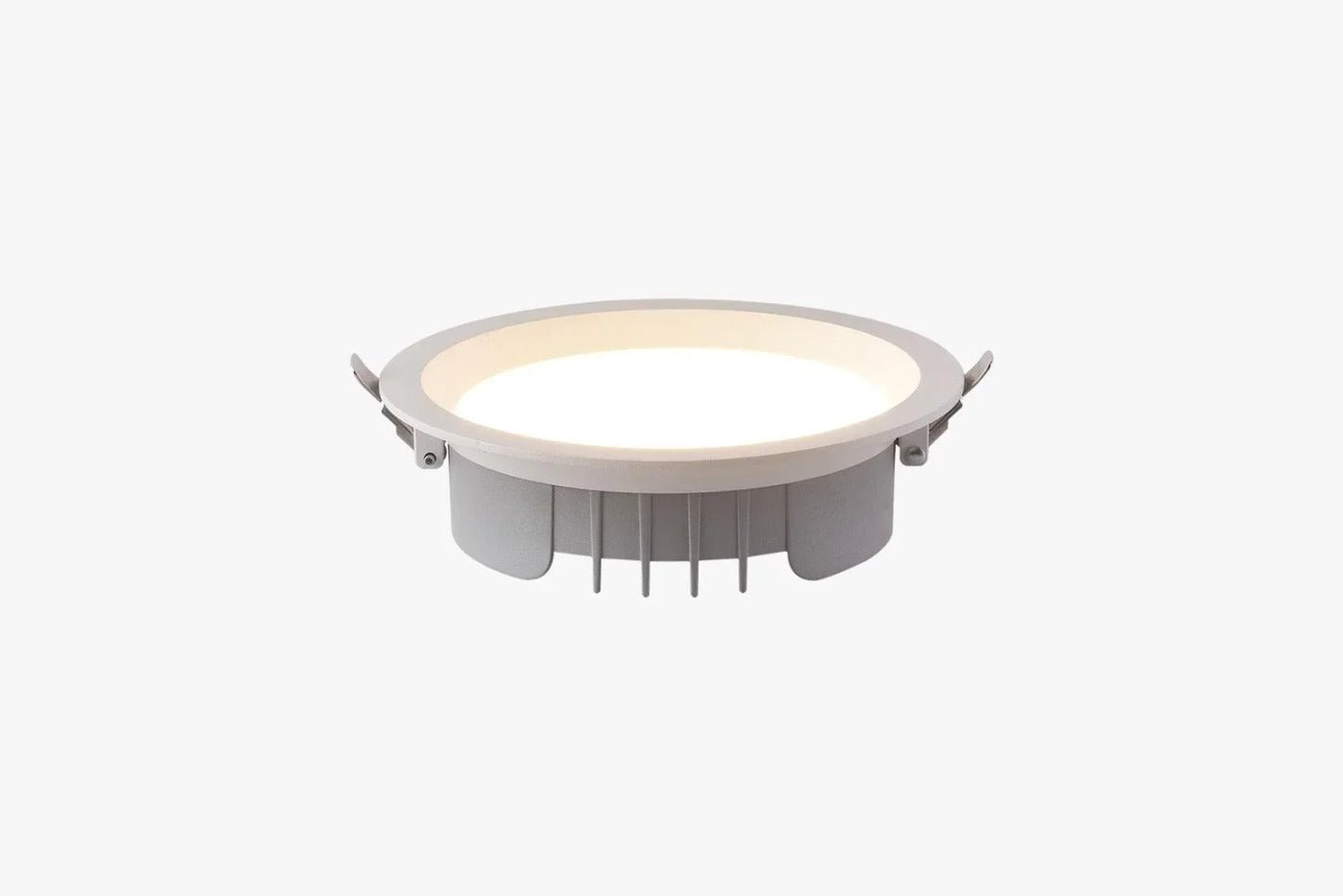

QV 11181-20A slim recessed LED downlight with on-board switchable colour temperature — 3000, 4000 or 6500K, set at installation. The 20W output delivers 1800 lm from a Ø 140 body (Ø 125 cut-out) — living rooms, kitchens and open-plan spaces.
Air Downlight 20W (QV 11181-20) is built as a recessed luminaire and specified at LED 20W, with 3000/4000/6500K switch, a colour rendering index of CRI ≥80 and IP20 ingress protection. It is finished in Sandy White, and is typically specified for residential, hotel, office schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Luminous flux, lm | 1800lm |
| CCT, K | 3000/4000/6500K switch |
| Power consumption, W | 20W · 220–240V |
| Color rendering (CRI) | ≥80 |
| IP Code | IP20 |
| Size · cut-out | Ø 140 × H 36 · Cut-out Ø 125 |
| Finishes | Sandy White |
Applications
ResidentialHotelOffice
Configure Air
Dimensions & mounting
| Mounting | Recessed |
| Cut-out, mm | Ø 125 |
| Dimensions, mm | Ø 140 × H 36 |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
C0 / C180 — 110°
