Black Nib Garden Post

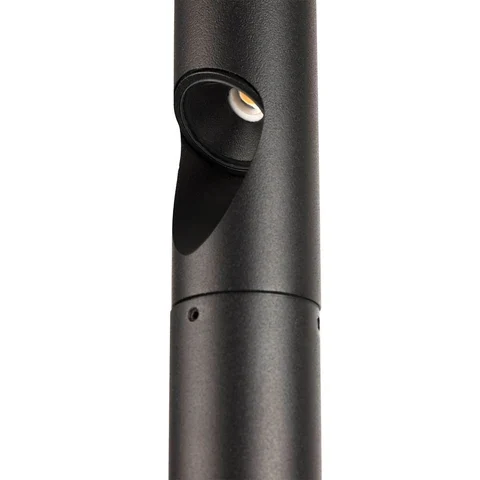

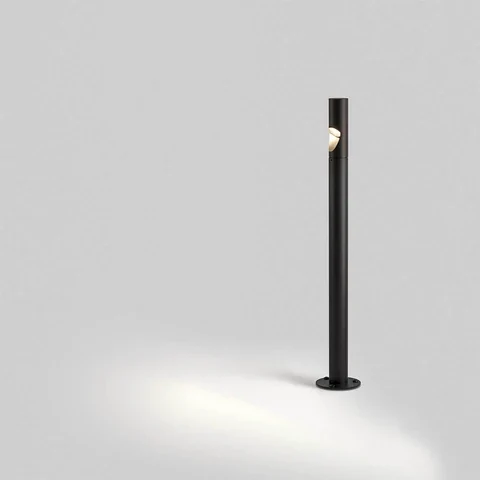

A 40 mm post cut away near the top to make one angled window, with a small reflector set back inside it. Nothing is visible from the far side and nothing points up: the light leaves at 60° through that one opening and lands as a soft scallop on the path or the planting beside it, which is why 60 lm is enough. 3 W from a Cree XP-E2 at CRI above 80, 3000 K as standard with 2700 K and 4000 K to order, and the driver is built into the post so it wires straight to 100–240 V. IP65 powder-coated aluminium, matte Sandy Black.

Black Nib Garden Post (QN 26373-453) is built as a ground luminaire and specified at LED 3W, with 3000K · 2700K · 4000K (order option), a colour rendering index of CRI ≥80 and IP65 ingress protection. It is finished in Sandy Black, and is typically specified for landscape, residential, hotel, restaurant schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
