Black Umbra Wall Light

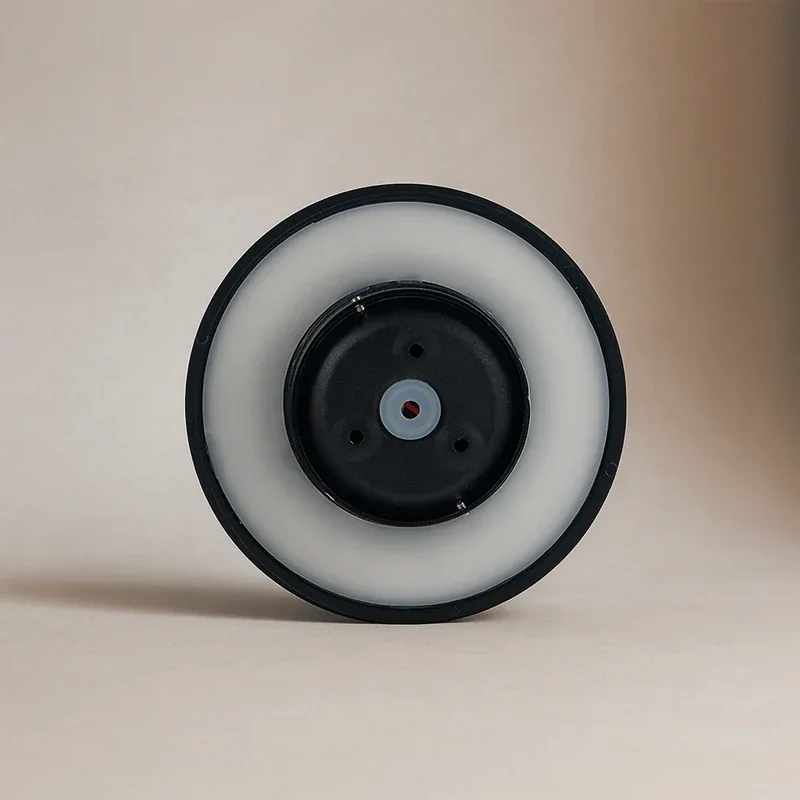

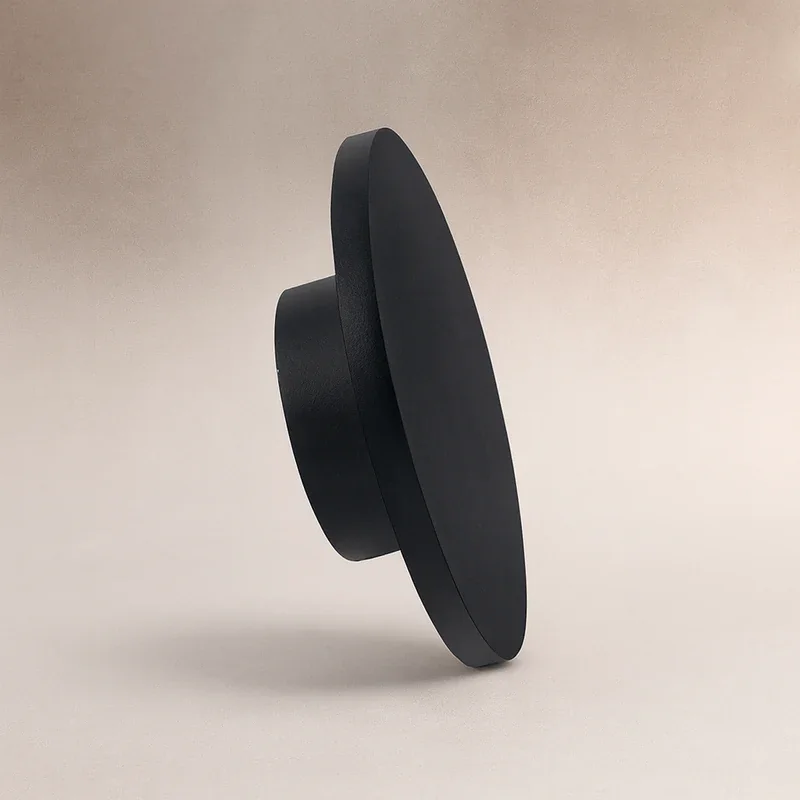

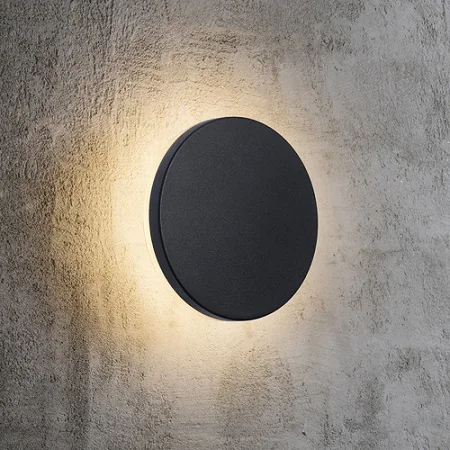

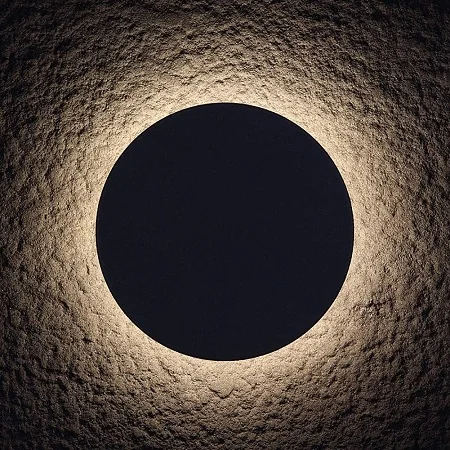

A Ø 140 mm disc held a finger off the wall, with every diode facing back into the gap — so the fixture itself stays dark and what you see is the ring of light it throws onto the surface behind it. On render, brick or board the halo picks up the texture; on smooth plaster it reads as a clean circle of glow. 7.2 W from an Edison SMD board at CRI above 80, 3000 K as standard with 4000 K to order. The driver is built in and takes 100–277 V, and the body is IP65 aluminium, so the same piece marks an entrance wall, a stair or a sheltered façade. Matte Sandy Black.

Black Umbra Wall Light (QN 38432-439) is built as a wall luminaire and specified at LED 7.2W, with 3000K · 4000K (order option), a colour rendering index of CRI ≥80 and IP65 ingress protection. It is finished in Sandy Black, and is typically specified for residential, hotel, restaurant, landscape schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
