Tandem series · Up/down wall cylinder

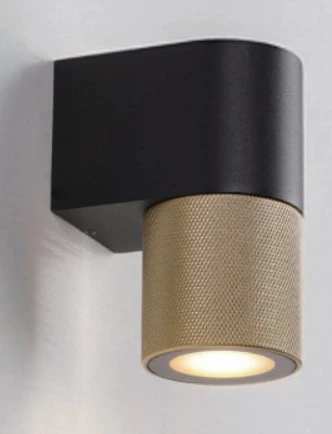

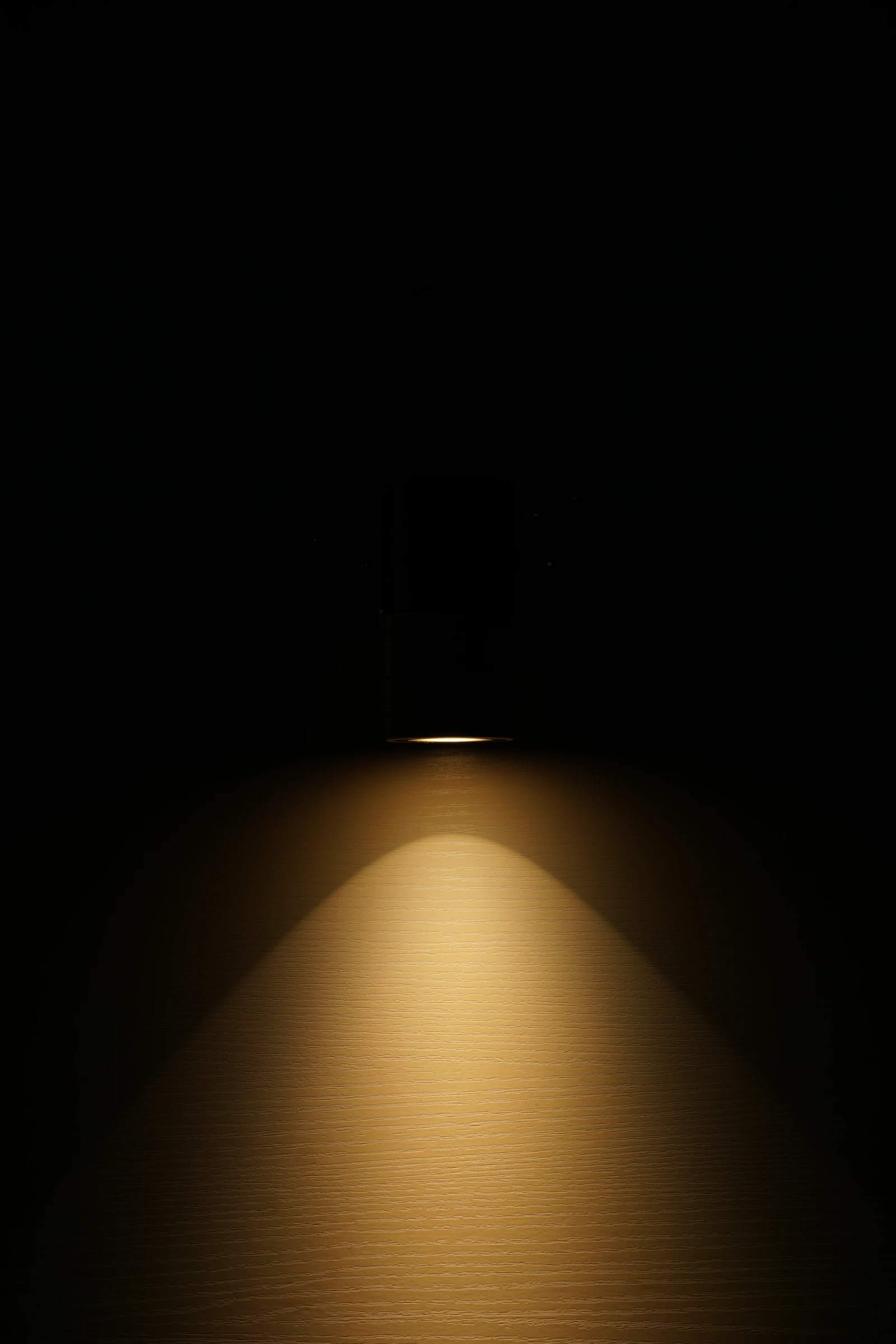

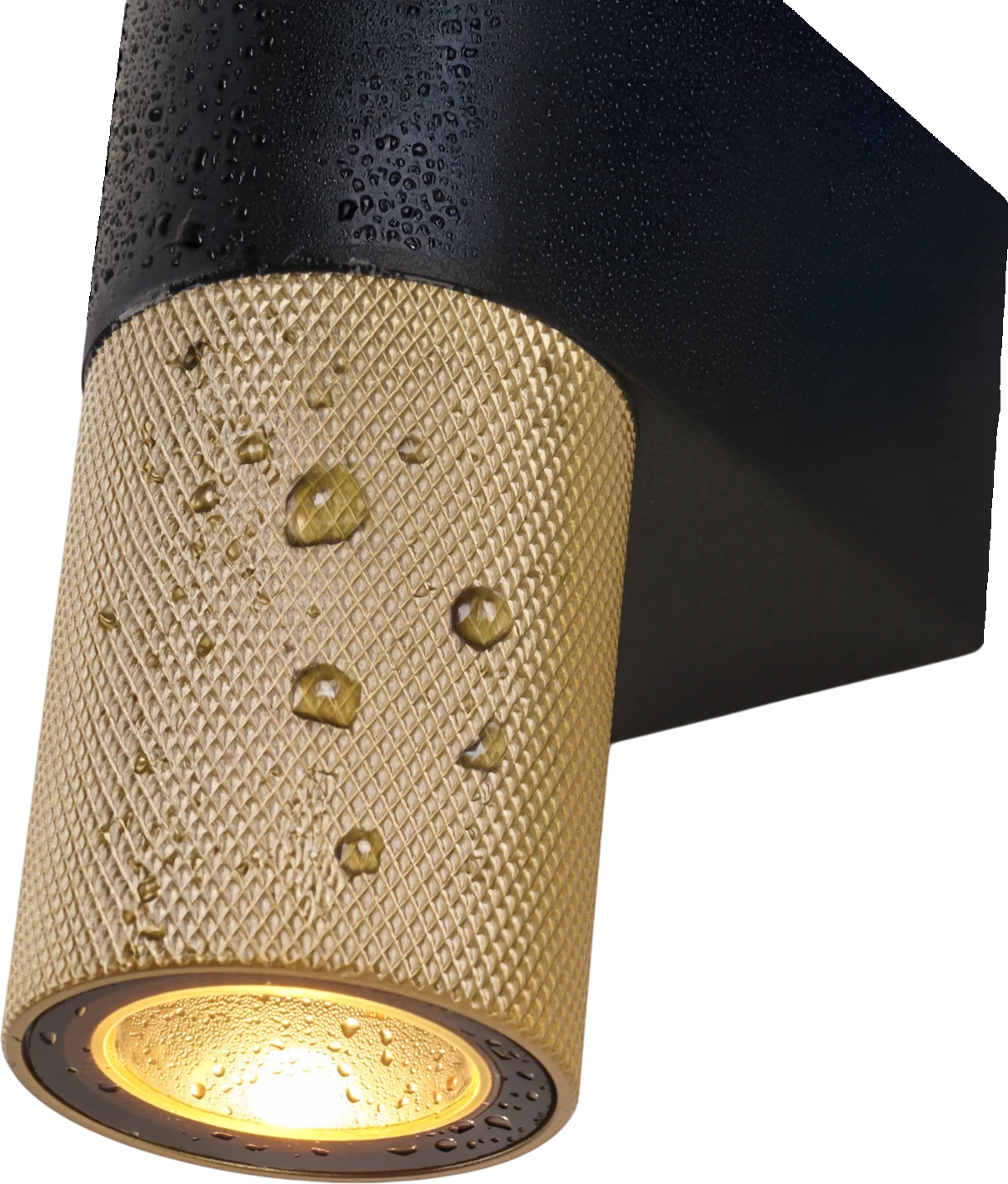

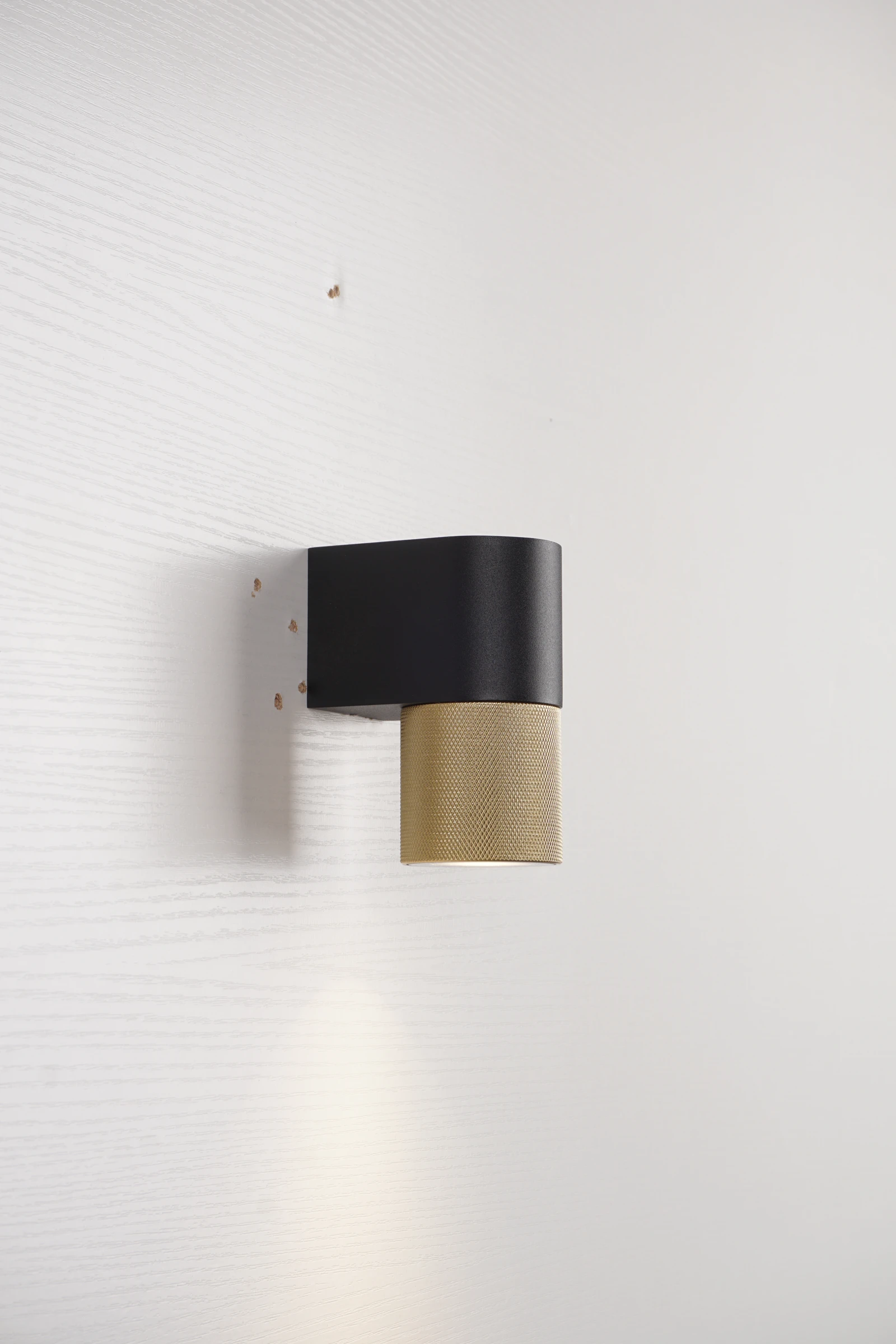

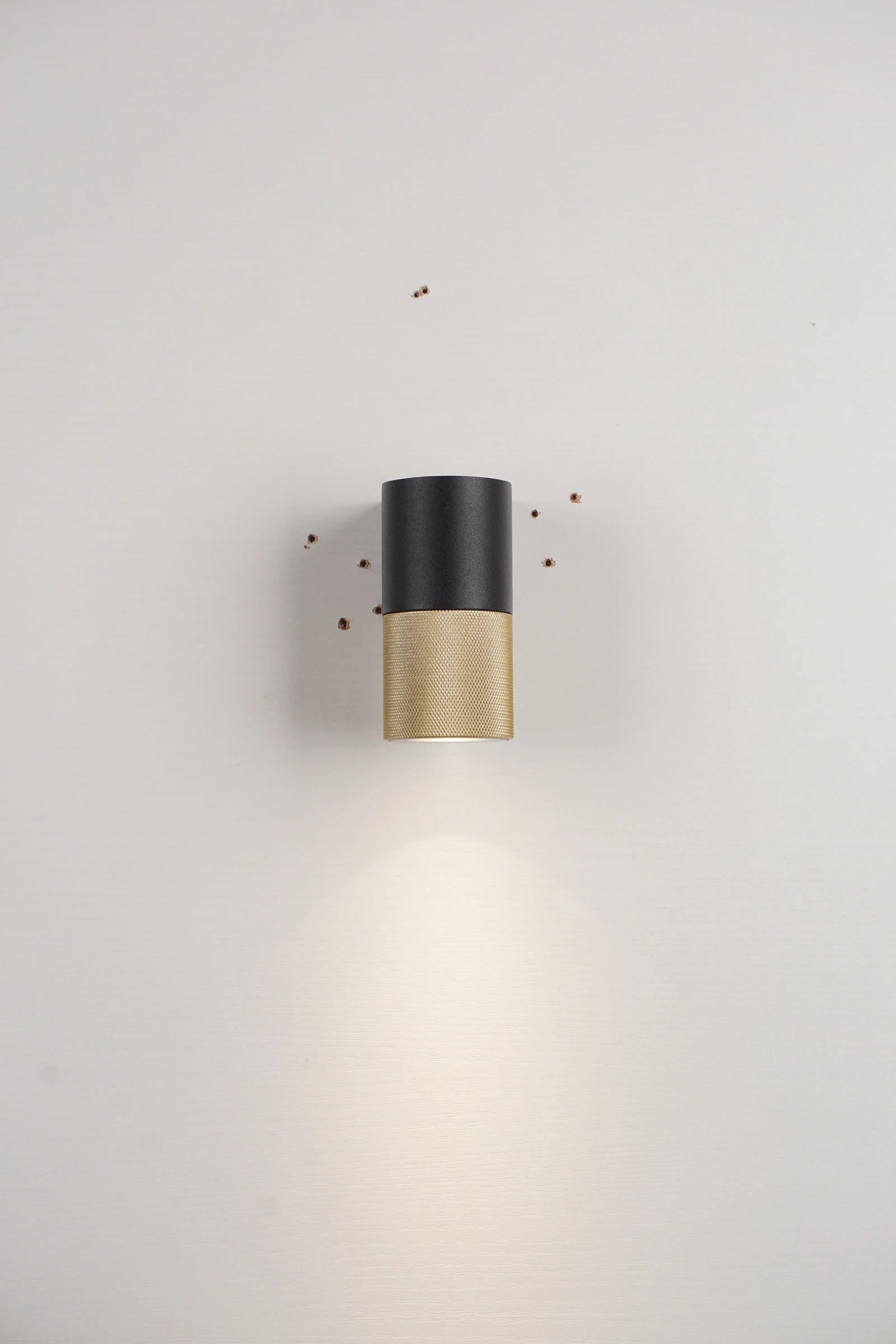

Gold Tandem Single Wall Light

QN 38338-397

The single-head Tandem: the same Ø55 cylinder and 24° optic as the twin, shortened to one downward blade of light for door surrounds, low walls and rhythms where an upward beam would spill onto a soffit. A gold ring sits against the black body, so the fitting reads as a detail rather than a box. IP65 sealing suits it to exposed elevations as well as sheltered interiors.

Gold Tandem Single Wall Light (QN 38338-397) is built as a wall luminaire and specified at LED 6W, with 3000K (4000K / 6500K on request), a colour rendering index of CRI 90 and IP65 ingress protection. It is finished in Gold, and is typically specified for facade, entrance, terrace, corridor schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.

Luminous flux, lm526lm (measured, 3000K) / 867lm (vendor)
CCT, K 3000K (4000K / 6500K on request)
Power consumption, W6W (6.8W measured) · 220–240V ~ 50/60Hz
Color rendering (CRI)90
Luminous efficacy77.3 lm/W
Light sourceCOB LED
IP CodeIP65
SizeØ 55 × W 80 × H 108
Finishes Gold

Applications

FacadeEntranceTerraceCorridor

Configure Tandem

Beam angle

CCT

Your configuration

CodeQN 38338-397
FinishGold
Beam angle24°
CCT3000K

Dimensions & mounting

Ø 55 H 108
MountingSurface · wall
Dimensions, mmØ 55 × W 80 × H 108
Case materialAluminum · gold ring
Working temperature−10°C to +45°C
Warranty3 years

Light distribution — cd/klm

90° 90°
C0 / C180 — 24°

Driver

Internal · constant current 150mA / 28–42V — 220–240V ~ 50/60Hz
