Tandem series · Up/down wall cylinder

Black Tandem Twin Wall Light

QN 38322-395

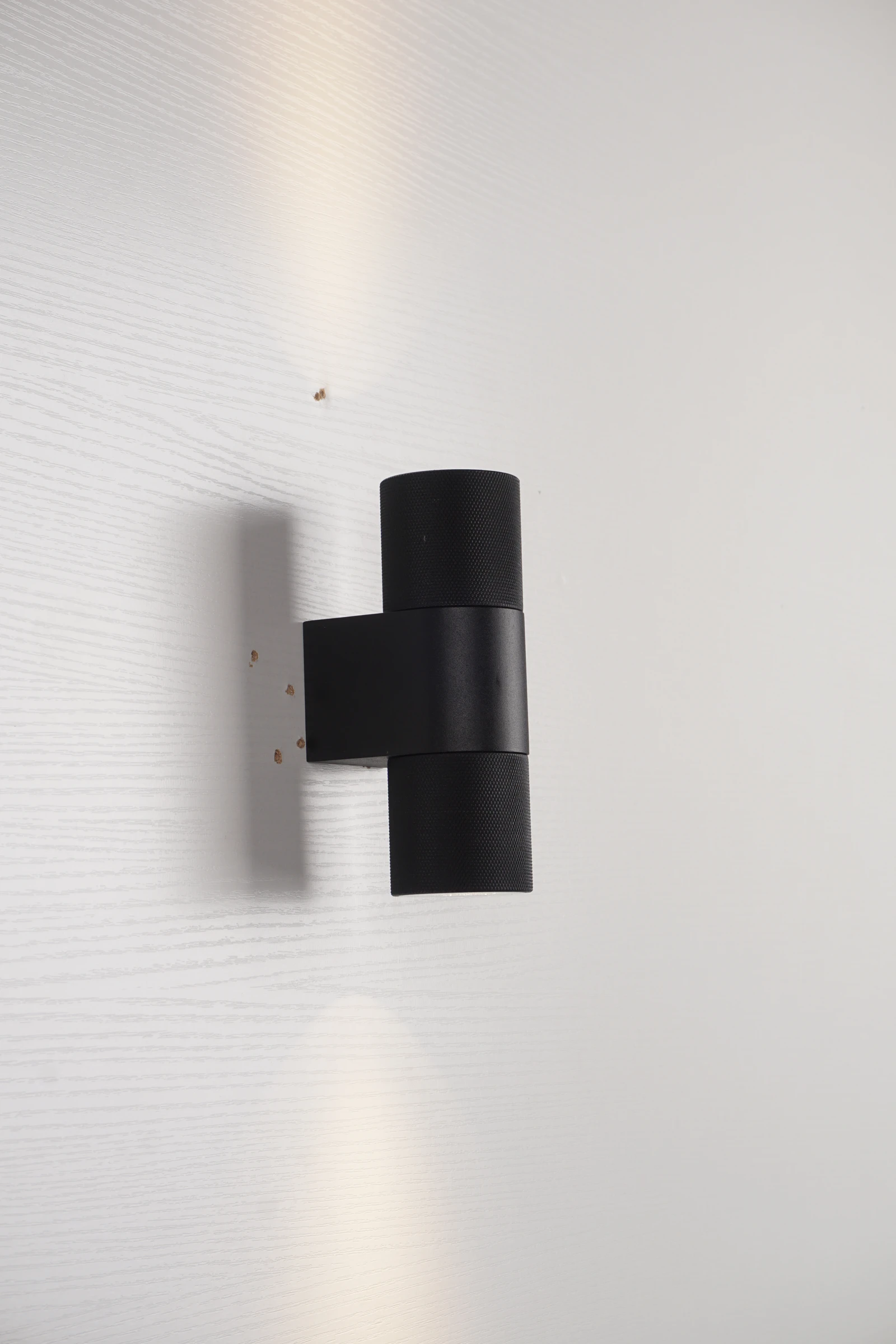

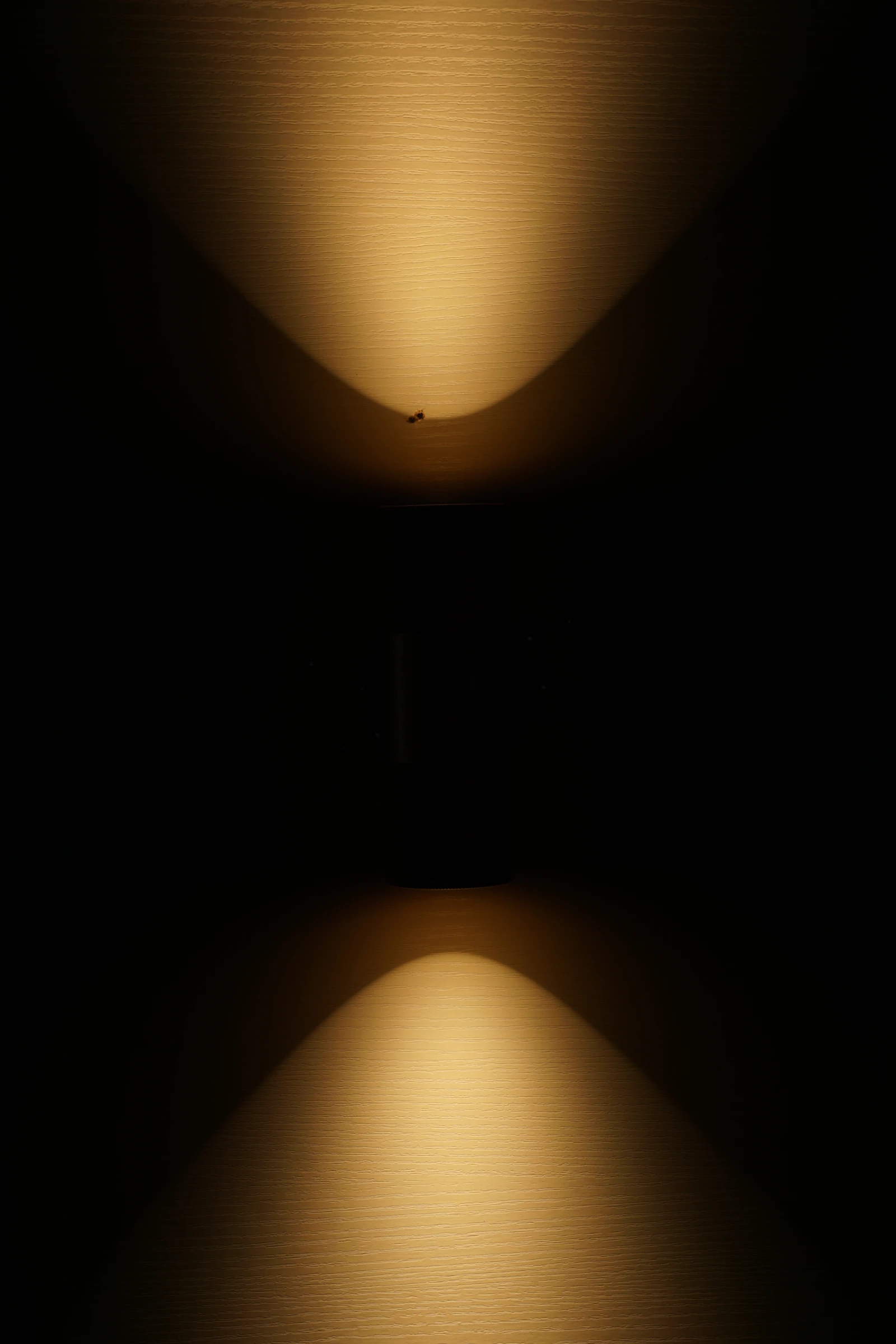

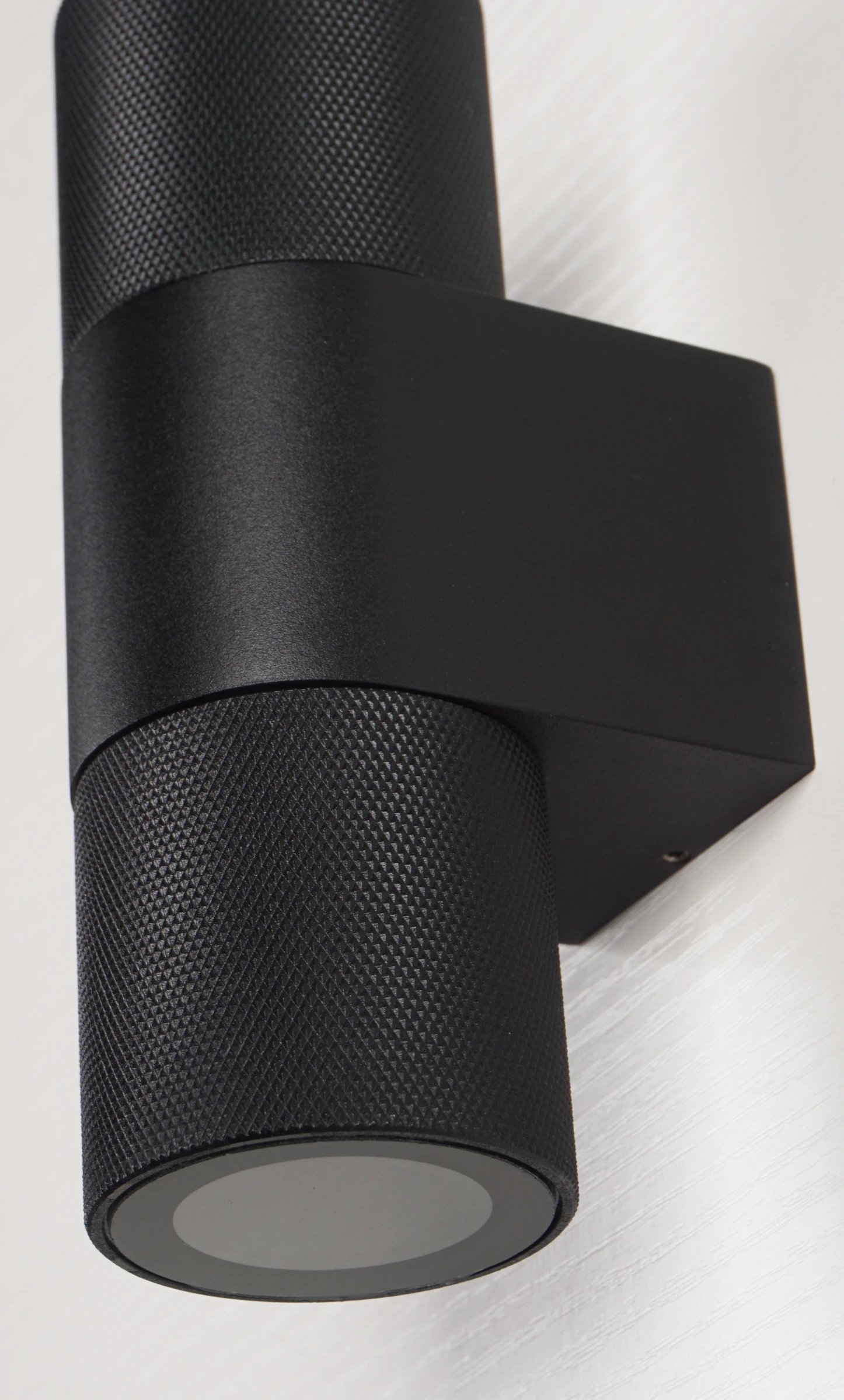

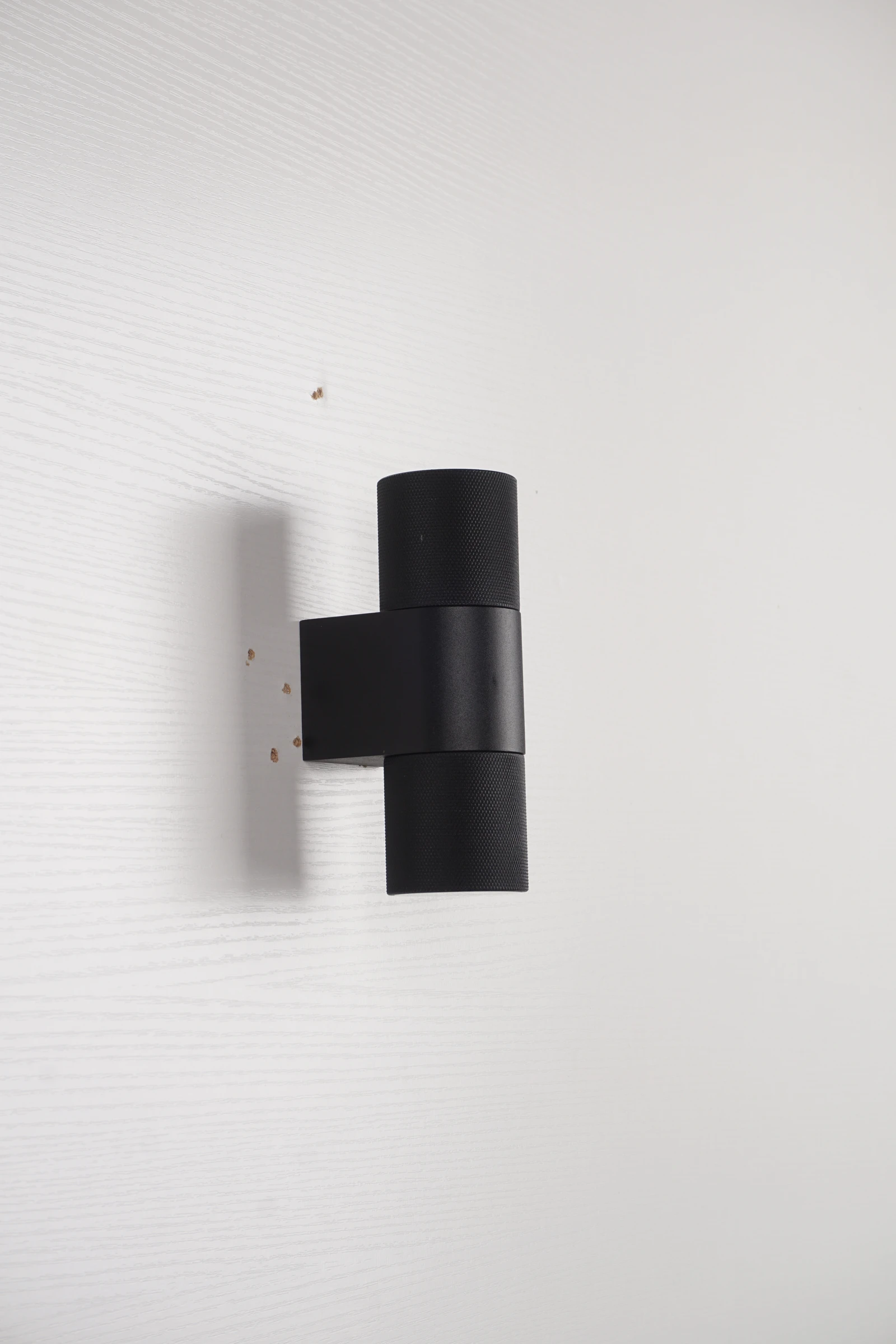

A slim Ø55 cylinder that throws a narrow beam up the wall and another straight down, so a single point of fixing draws two tight blades of light instead of a flood. The 24° optic keeps the beams crisp enough to graze stone, brick and render, and CRI 90 holds the material's real colour. IP65 sealing takes it outdoors — entrance walls, terraces, façades — as readily as a stairwell or corridor. Finished in Sandy Black.

Black Tandem Twin Wall Light (QN 38322-395) is built as a wall luminaire and specified at LED 2×6W, with 3000K (4000K / 6500K on request), a colour rendering index of CRI 90 and IP65 ingress protection. It is finished in Sandy Black, and is typically specified for facade, entrance, terrace, corridor schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.

Luminous flux, lm1073lm (measured, 3000K) / 867lm (vendor)
CCT, K 3000K (4000K / 6500K on request)
Power consumption, W2×6W (12.9W measured) · 220–240V ~ 50/60Hz
Color rendering (CRI)90
Luminous efficacy80.1 lm/W
Light sourceCOB LED
IP CodeIP65
SizeØ 55 × W 80 × H 161
Finishes Sandy Black · Gold

Applications

FacadeEntranceTerraceCorridor

Configure Tandem

Finish — Sandy Black

Beam angle

CCT

Your configuration

CodeQN 38322-395
FinishSandy Black
Beam angle24°
CCT3000K

Dimensions & mounting

Ø 55 H 161
MountingSurface · wall
Dimensions, mmØ 55 × W 80 × H 161
Case materialAluminum
Working temperature−10°C to +45°C
Warranty3 years

Light distribution — cd/klm

90° 90°
C0 / C180 — 24° up/down

Driver

Internal · constant current 150mA / 28–42V — 220–240V ~ 50/60Hz
