Holo series · Recessed spot
Holo Bath Spot 17
QV 11201-017The IP44-rated Holo for bathrooms and covered wet areas — sealed face, compact Ø 56 cut-out.

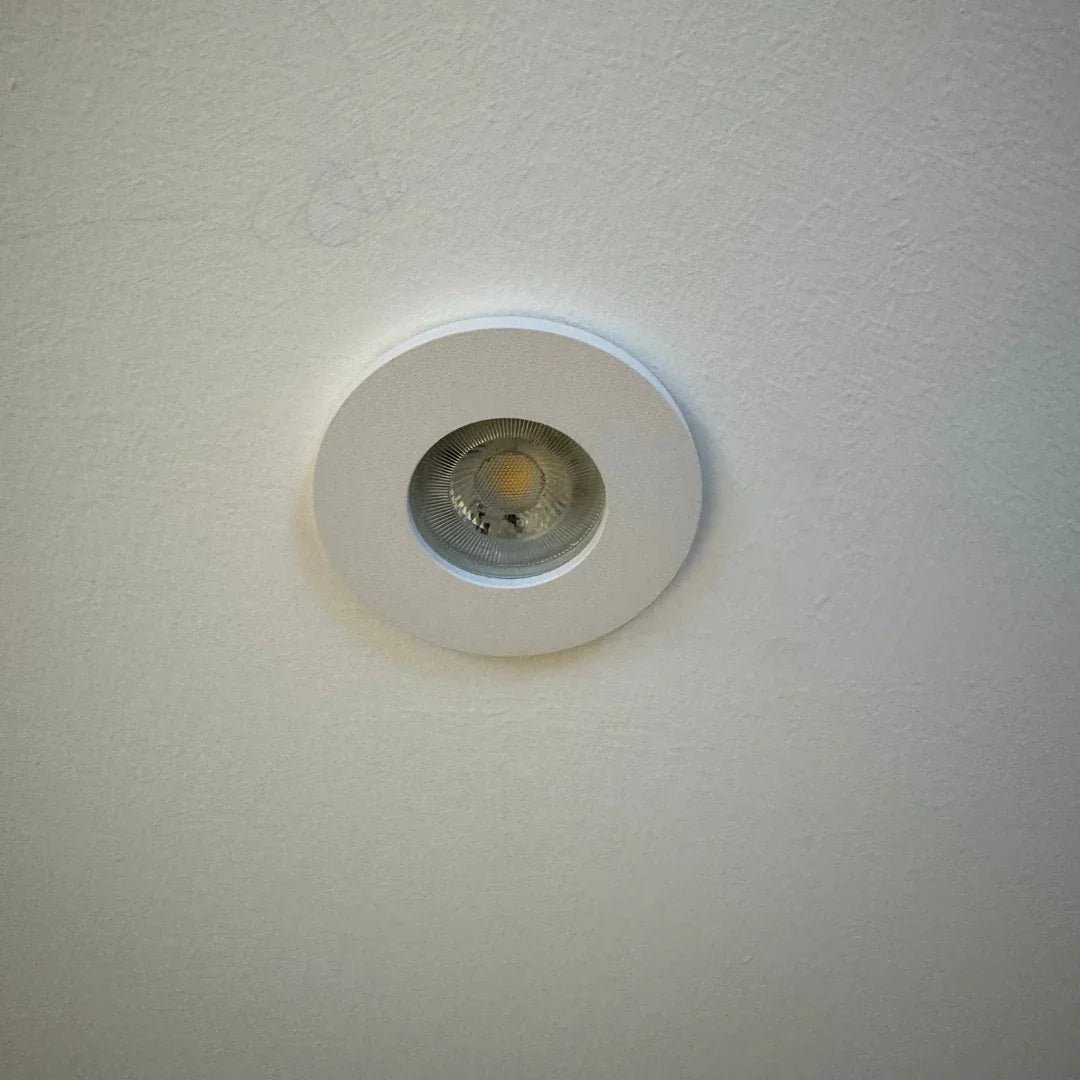

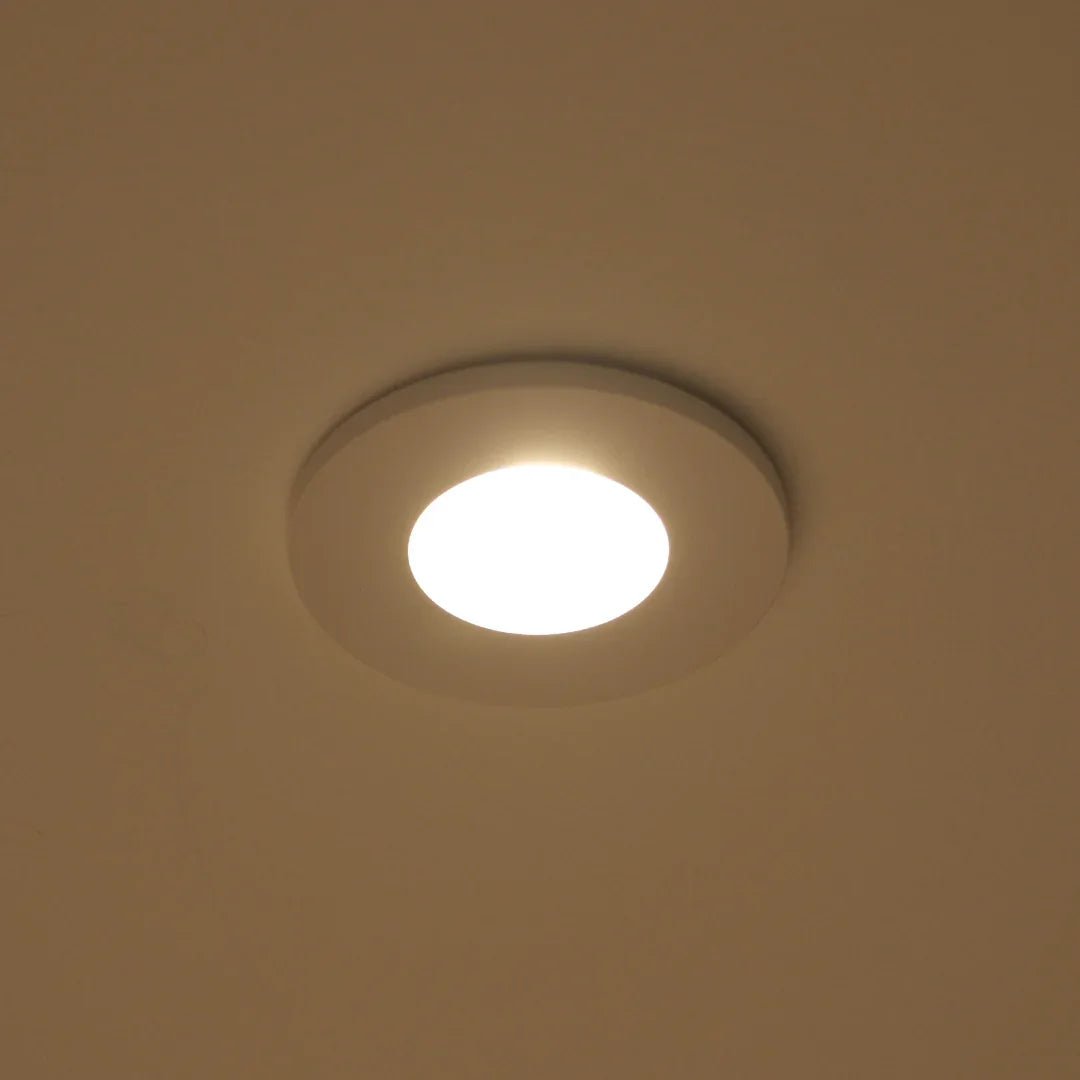

Holo Bath Spot 17 (QV 11201-017) is built as a recessed luminaire and specified at GU10 max 50W, with IP44 ingress protection. It is finished in Sandy White, and is typically specified for bathroom, residential, hotel schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Availability | Made to order |
| Luminous flux, lm | Lamp dependent |
| Power consumption, W | Lamp dependent · 220–240V |
| Color rendering (CRI) | Lamp dependent |
| IP Code | IP44 |
| Size · cut-out | Ø 84 × H 30 · Cut-out Ø 56 |
| Finishes | Sandy White |
Applications
BathroomResidentialHotel
Configure Holo
Your configuration
CodeQV 11201-017
FinishSandy White
AvailabilityMade to order
PriceSign in to view
Dimensions & mounting
| Mounting | Recessed |
| Cut-out, mm | Ø 56 |
| Dimensions, mm | Ø 84 × H 30 |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
C0 / C180 — lamp dependent
Downloads
Datasheet (PDF)↓ DownloadPhotometry (IES / LDT)Request file →2D / CAD — Technical drawing (PDF)↓ Download3D model (simplified) — STEP↓ Download3D model (simplified) — OBJ↓ Download3D model (simplified) — DXF↓ DownloadInstallation sheet (PDF)↓ DownloadMounting guideRequest file →
The simplified 3D model is an envelope generated from the published dimensions for layout and clash checks; it carries no optics, driver or fixing detail. The manufacturer's CAD is supplied on request.
