White Pin Spot 6W

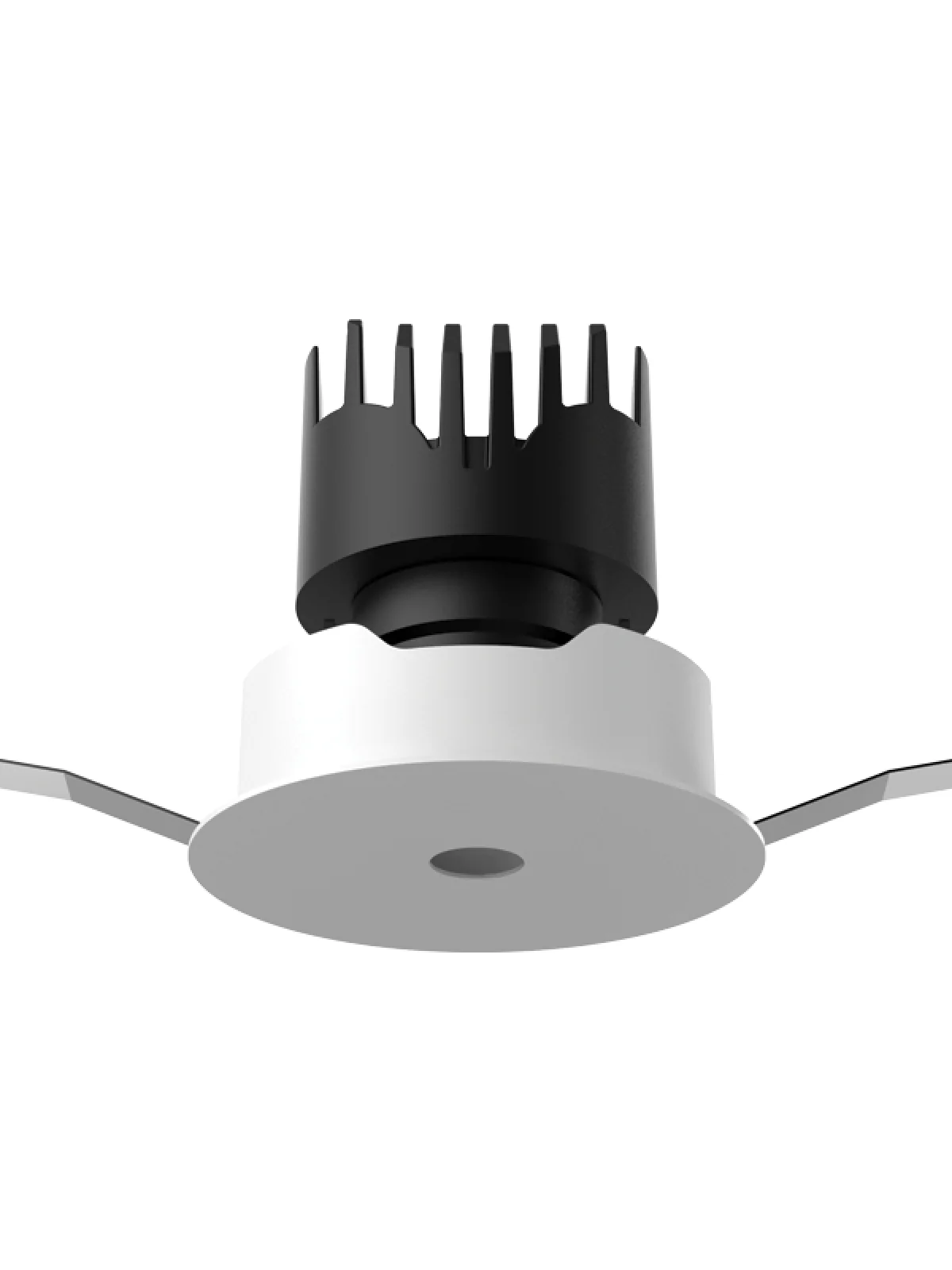

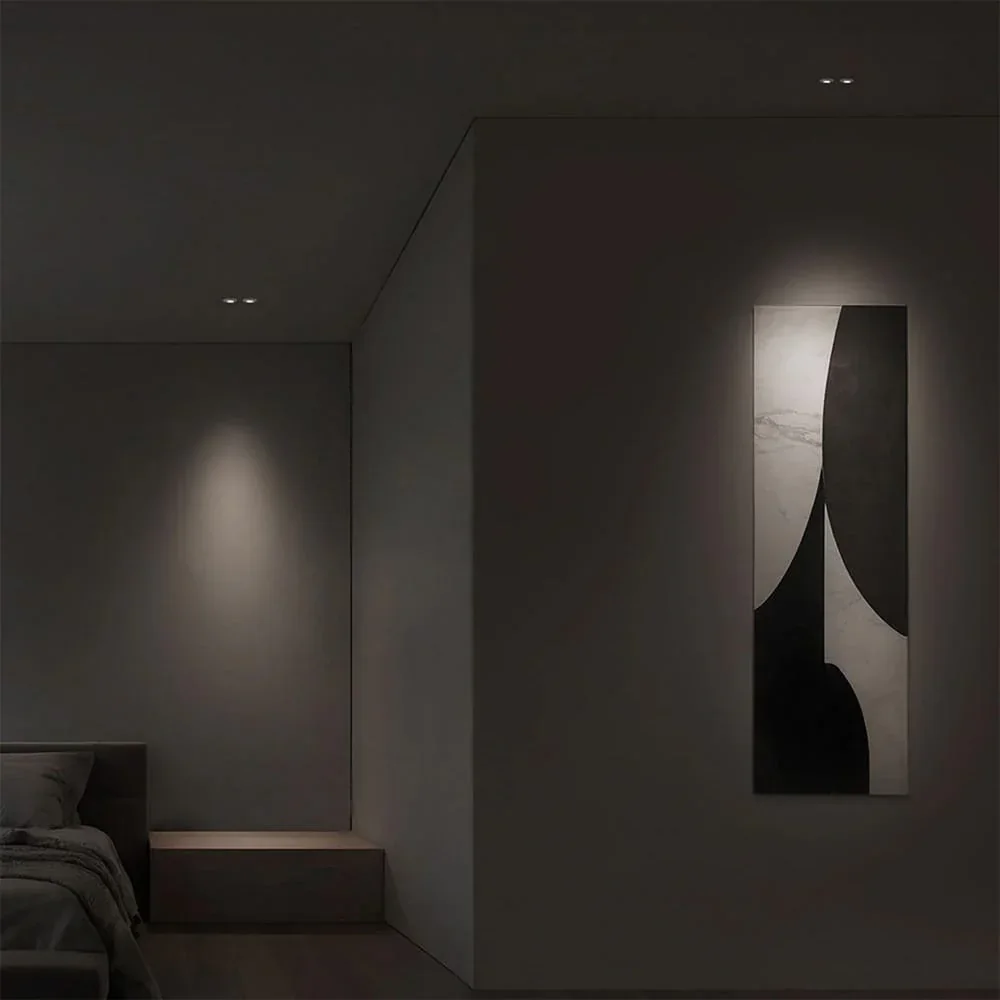

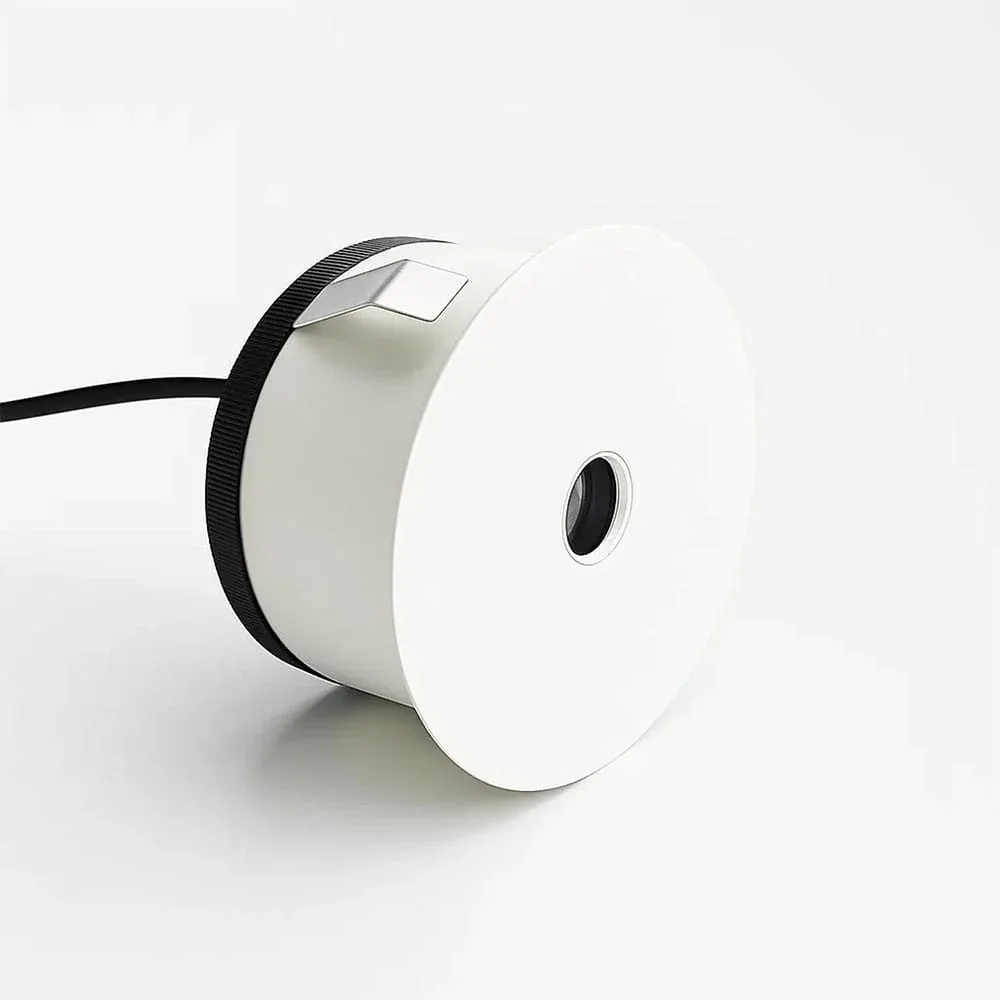

QN 11141-043A recessed spot with an 18 mm mini-aperture — the fitting all but disappears into the ceiling, leaving light without a visible source for clean, uninterrupted ceilings. The LED is buried deep behind the tiny opening, so glare falls to UGR <4 at 22° — the highest tier of visual comfort for bedrooms, suites, galleries and museum showcases. A 30° adjustable tilt aims the beam at artwork, walls and objects, and the DALI order option brings it into scene control. The smaller of two power sizes, sharing one look across ceiling heights and accent needs.
White Pin Spot 6W (QN 11141-043) is built as a recessed luminaire and specified at LED 6W, with 3000K (2700K / 4000K on request), a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in White, and is typically specified for residential, hotel, gallery, boutique schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Luminous flux, lm | — |
| CCT, K | 3000K (2700K / 4000K on request) |
| Power consumption, W | 6W · 36V / 150mA |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <4 (22°) / <6 (36°) |
| IP Code | IP20 |
| Size · cut-out | Ø 71 × H 70 · Cut-out Ø 65 |
| Finishes | White |
Applications
Configure Pin
Your configuration
Dimensions & mounting
| Mounting | Spring clips |
| Cut-out, mm | Ø 65 |
| Dimensions, mm | Ø 71 × H 70 |
| Aperture, mm | Ø 18 |
| Adjustable tilt | 30° |
| Case material | Aluminum, white |
| Warranty | 3 years |
Light distribution — cd/klm
Driver
Version follows the control selection: On/Off · DALI
