Holo Round Spot 09 — Sandy White
Recessed
QV 11201-009

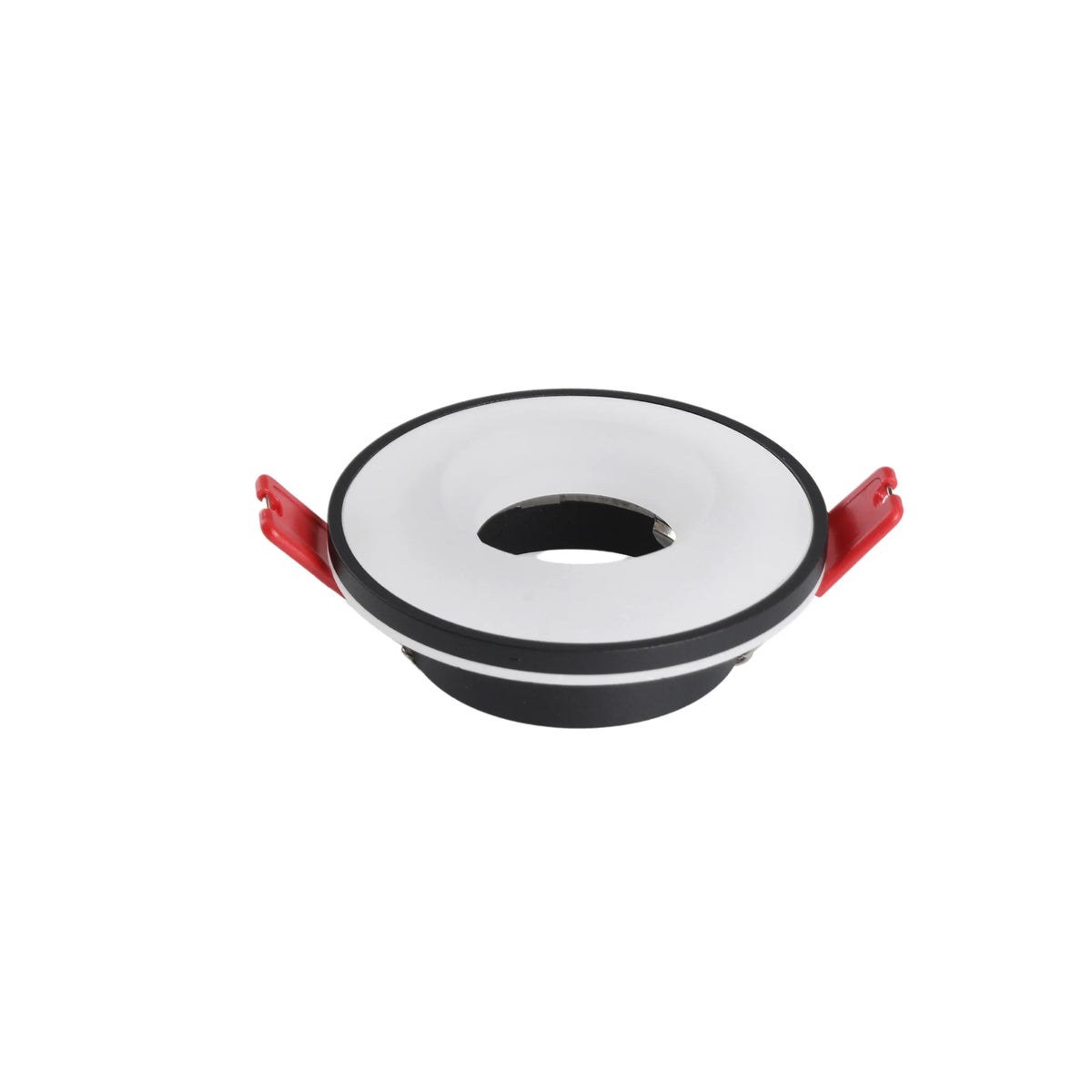

Holo Round Spot 09 — Sandy White
Holo series · Recessed spot

Holo Round Spot 09

QV 11201-009
GU10 max 50WIP20Lamp dependentCRI Lamp dependent
General description

A bevelled round trim with a recessed source — quiet general downlighting with a small visible face.

Technical information
LampGU10 · max 50W
Input voltage, V220–240V
CCT, KLamp dependent
Color rendering (CRI)Lamp dependent
IP CodeIP20
Cut-out, mmØ 68
Dimensions, mmØ 94 × H 35
Beam angleLamp dependent
Case materialAluminum
Dimensions — mm
Ø 94 H 35
Light distribution — cd/klm
90° 90° 0°
C0 / C180 — lamp dependent
Finishes
Sandy White
Sandy Black
Applications
HotelResidentialOffice
Specification & ordering
MountingRecessed
Photometric filesIES / LDT on request
PriceSign in to view
Order codes by variant
Sandy White QV 11201-009
Sandy Black QV 11202-009
Download full catalog (PDF) Enquire about this product
