Holo series · Recessed spot
White Holo Square Spot 02

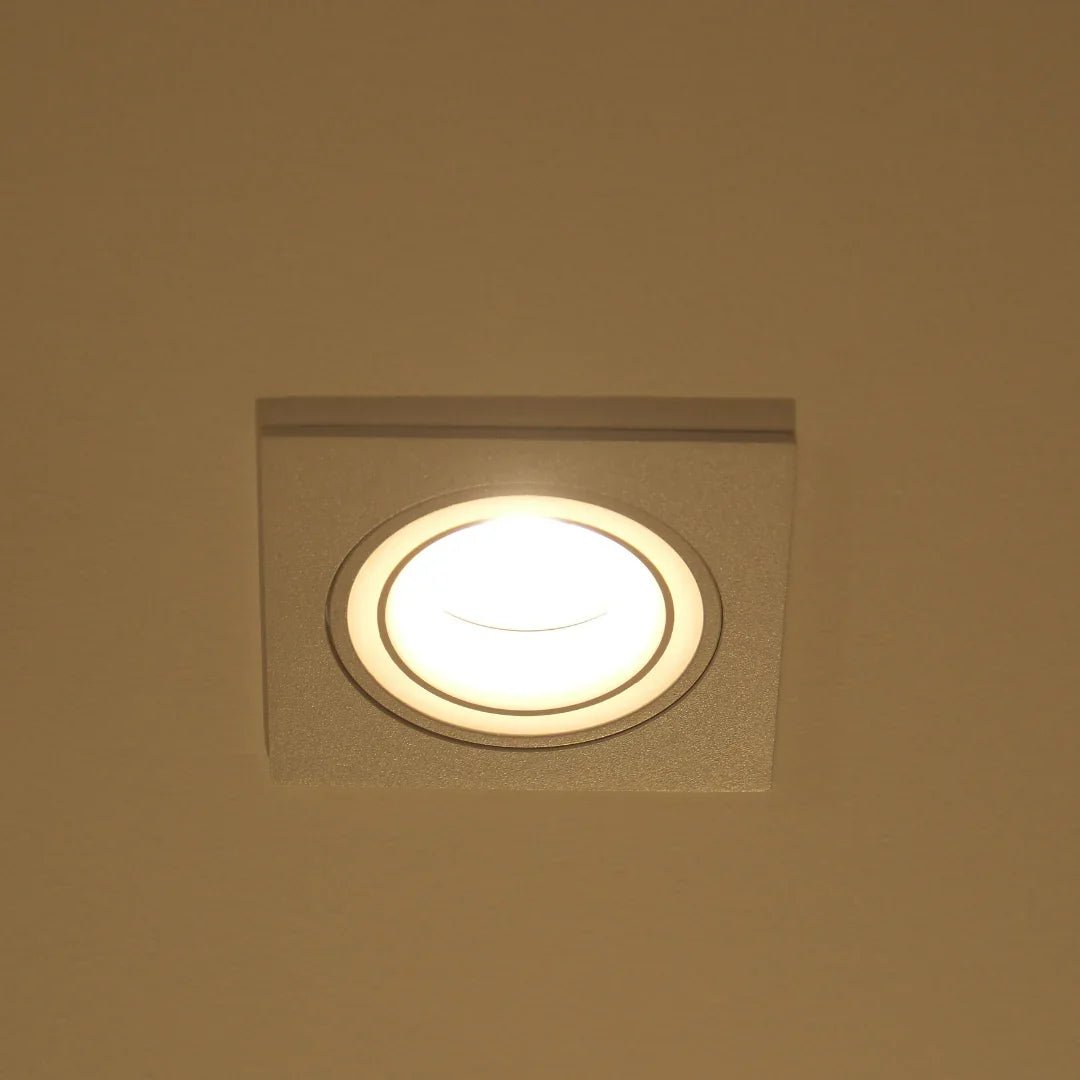

QV 11201-002The square-bezel Holo. A tilted inner cone conceals the source while the flat trim keeps ceiling lines crisp.
White Holo Square Spot 02 (QV 11201-002) is built as a recessed luminaire and specified at GU10 max 50W, with IP20 ingress protection. It is finished in Sandy White, and is typically specified for residential, hotel, office schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Availability | In stock — Ankara |
| Luminous flux, lm | Lamp dependent |
| Power consumption, W | Lamp dependent · 220–240V |
| Color rendering (CRI) | Lamp dependent |
| IP Code | IP20 |
| Size · cut-out | W 92 × H 40 · Cut-out Ø 80 |

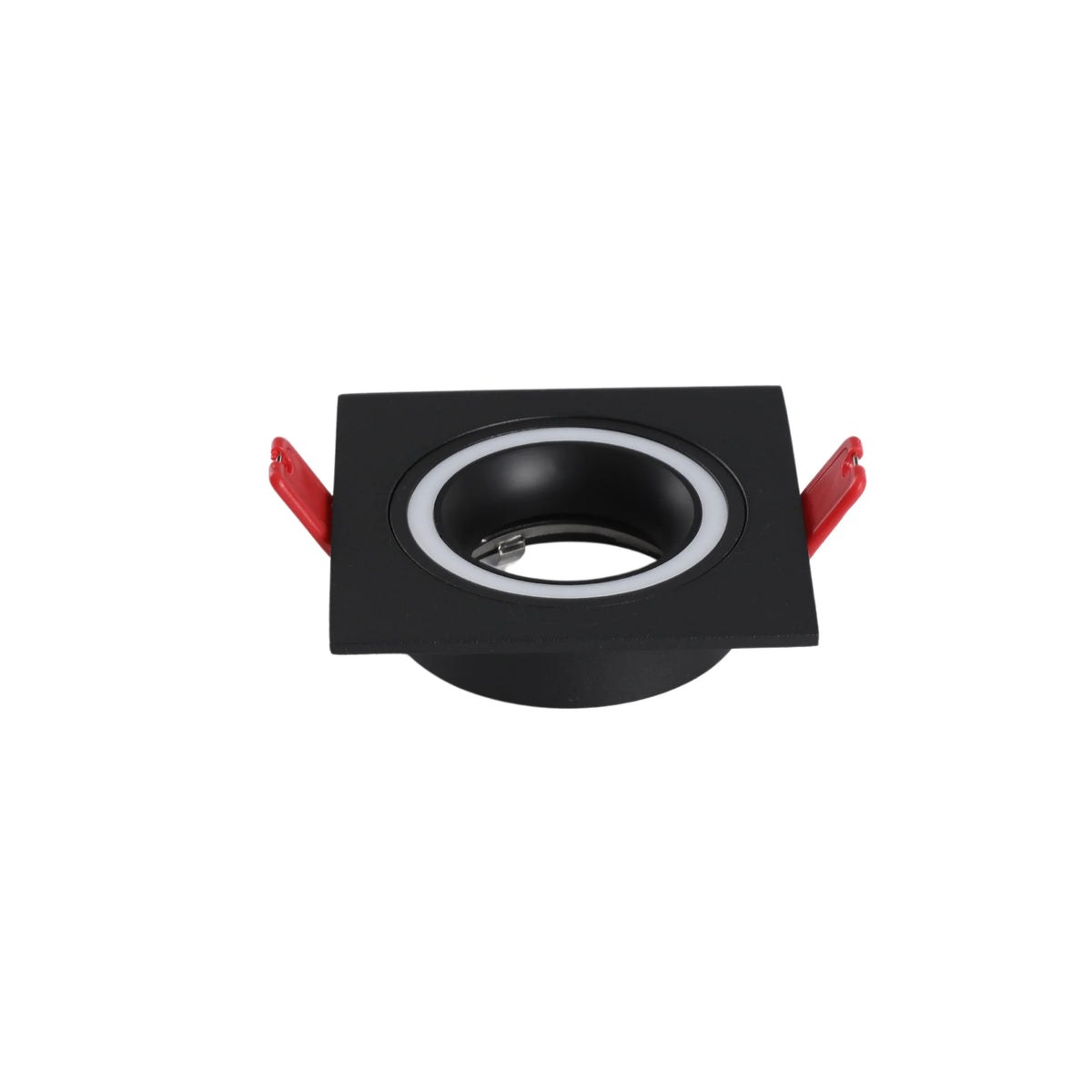

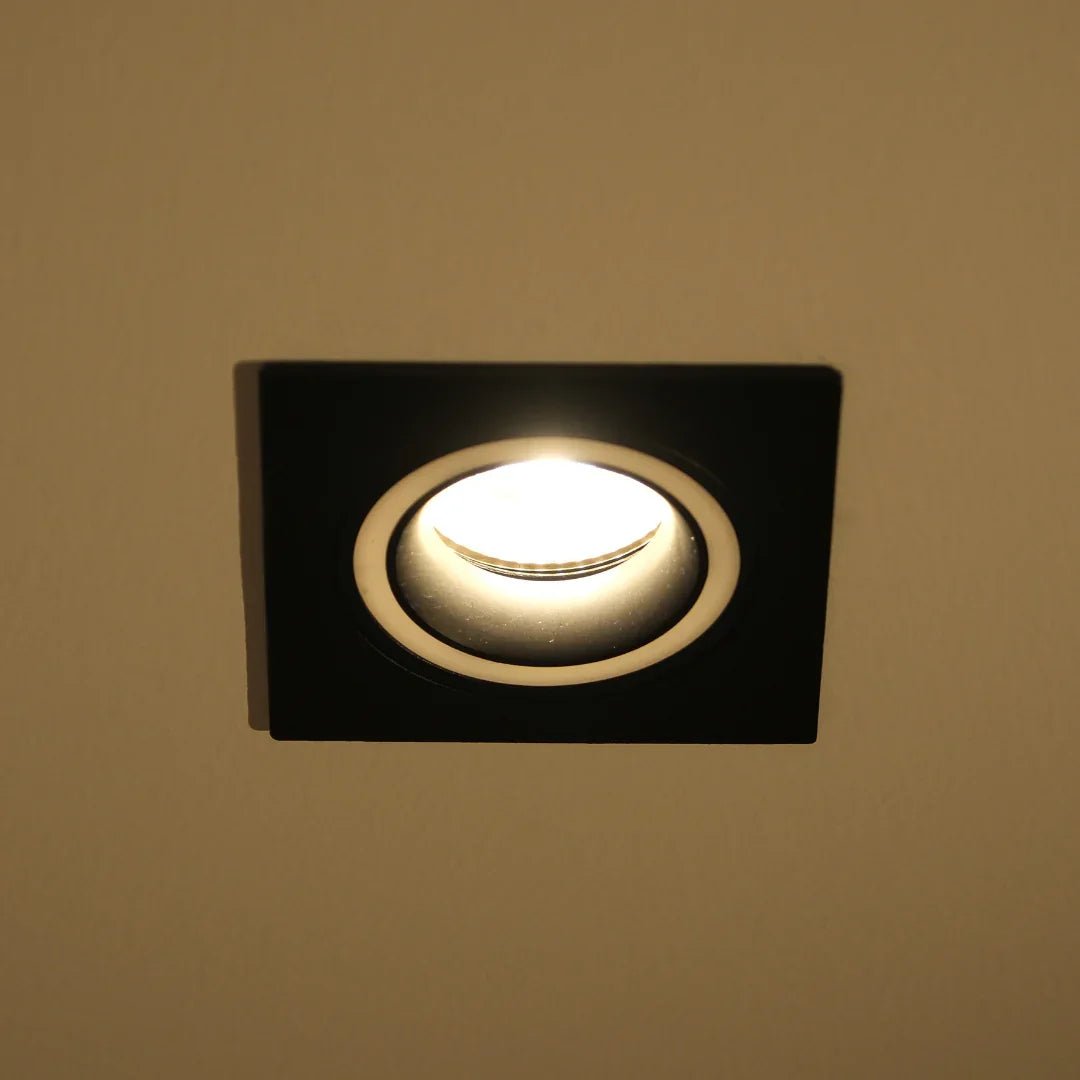

| Finishes | Sandy White · Sandy Black |
Applications
ResidentialHotelOffice
Configure Holo
Your configuration
CodeQV 11201-002
FinishSandy White
AvailabilityIn stock — Ankara
PriceSign in to view
Dimensions & mounting
| Mounting | Recessed |
| Cut-out, mm | Ø 80 |
| Dimensions, mm | W 92 × H 40 |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
C0 / C180 — lamp dependent
Downloads
Datasheet (PDF)↓ DownloadPhotometry (IES / LDT)Request file →2D / CAD — Technical drawing (PDF)↓ Download3D model (simplified) — STEP↓ Download3D model (simplified) — OBJ↓ Download3D model (simplified) — DXF↓ DownloadInstallation sheet (PDF)↓ DownloadMounting guideRequest file →
Datasheet (PDF)↓ DownloadPhotometry (IES / LDT)Request file →2D / CAD — Technical drawing (PDF)↓ Download3D model (simplified) — STEP↓ Download3D model (simplified) — OBJ↓ Download3D model (simplified) — DXF↓ DownloadInstallation sheet (PDF)↓ DownloadMounting guideRequest file →
The simplified 3D model is an envelope generated from the published dimensions for layout and clash checks; it carries no optics, driver or fixing detail. The manufacturer's CAD is supplied on request.
