Lens series · Backlit glass disc
Lens Wall Light

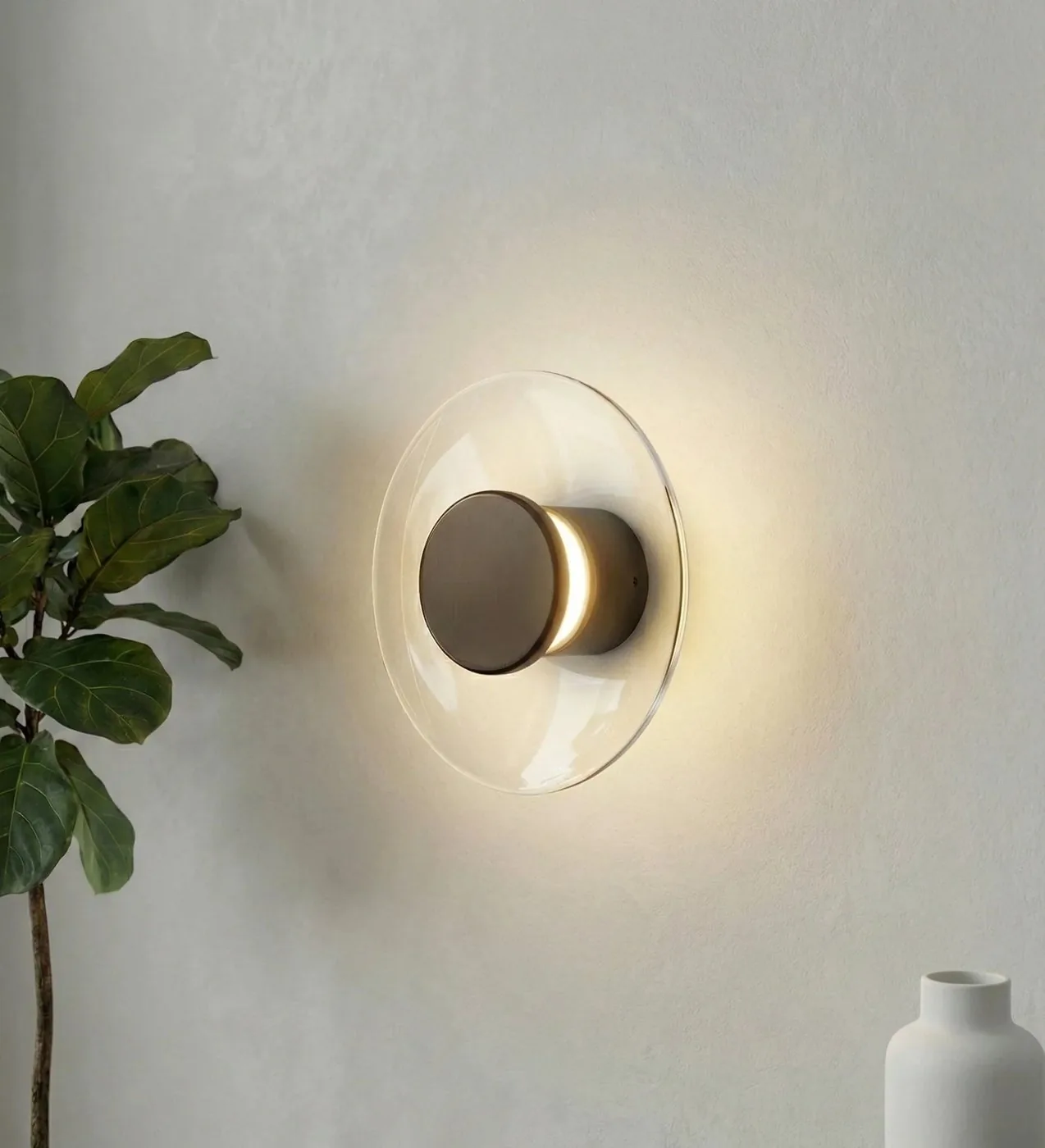

QN 38179-005A halo-backlit glass disc. The layered glass trim floats the light off the wall.
Lens Wall Light (QN 38179-005) is built as a wall luminaire and specified at LED 9W, with 3000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, Matte Silver, Matte Brass, Matte Coffee, and is typically specified for residential, hotel, restaurant schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Luminous flux, lm | 760lm |
| CCT, K | 3000K |
| Power consumption, W | 9W · 36V / 250mA |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | — |
| IP Code | IP20 |
| Size | Ø 350 × D 50 |
| Finishes |

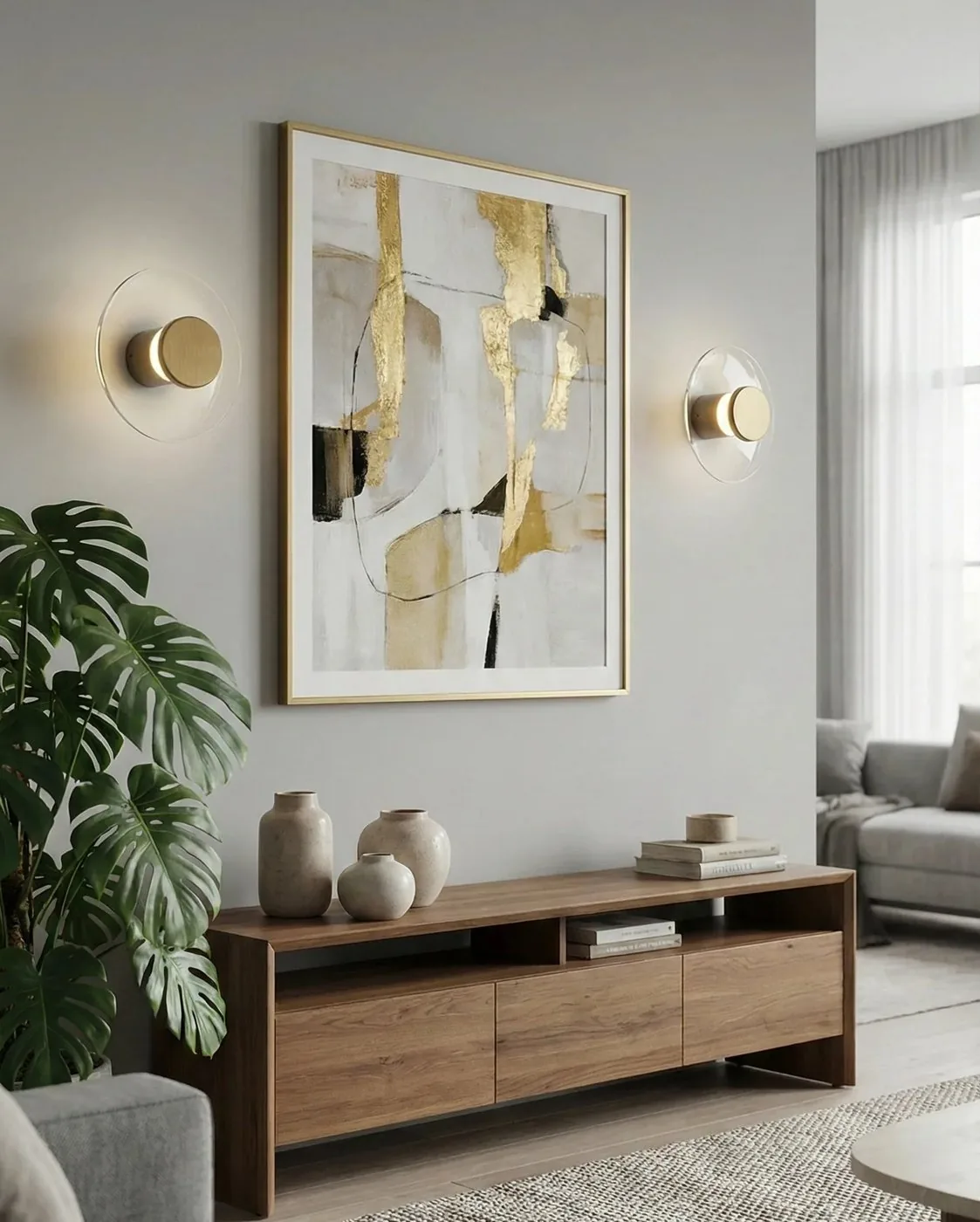

Applications
ResidentialHotelRestaurant
Configure Lens
Your configuration
CodeQN 38179-005
FinishSandy White / Sandy Black / Matte Silver / Matte Brass / Matte Coffee
PriceSign in to view
Dimensions & mounting
| Mounting | Wall |
| Dimensions, mm | Ø 350 × D 50 |
| Case material | Aluminum · glass |
| Warranty | 3 years |
Light distribution — cd/klm
C0 / C180 — halo
Downloads
Datasheet (PDF)↓ DownloadPhotometric test report (PDF) — IES photometric report↓ DownloadPhotometry (IES / LDT)Request file →2D / CAD — Full drawing↓ Download2D / CAD — Front view↓ Download2D / CAD — SketchUp model↓ Download2D / CAD — STEP 3D model↓ DownloadInstallation sheet (PDF)↓ DownloadMounting guideRequest file →
