Trace series · 48V magnetic track
Trace Downlight 106 20W

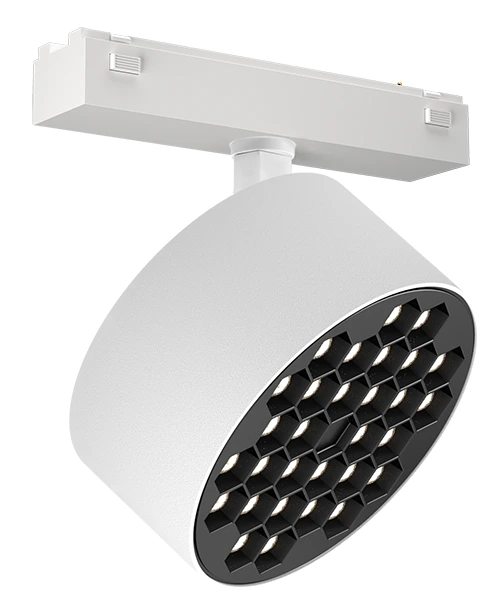

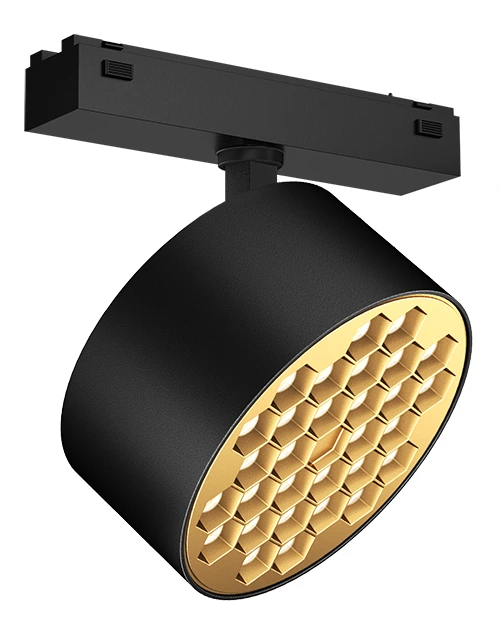

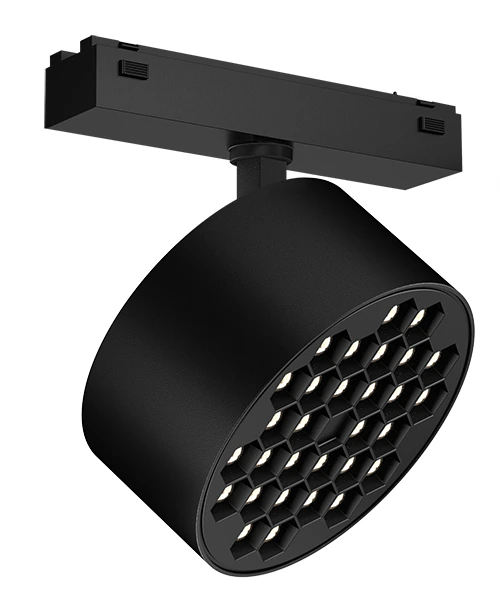

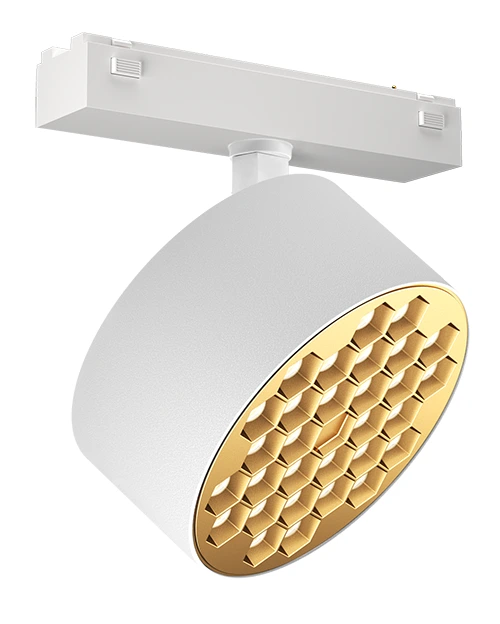

QV 15200-333A 48V magnetic-track downlight drawing 20W at 30° 60°, supplied in Sandy White or Sandy Black. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.
Trace Downlight 106 20W (QV 15200-333) is built as a track luminaire and specified at LED 20W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 2006.4lm (measured) · 1907.1lm at 30° |
| CCT, K | 3000K/4000K/5000K |
| Power consumption, W | 20W · DC 48V |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <19 |
| Light source | OSRAM SMD |
| Driver output | DC9-42V |
| IP Code | IP20 |
| Size | Ø123*H45mm |
| Finishes |
Applications

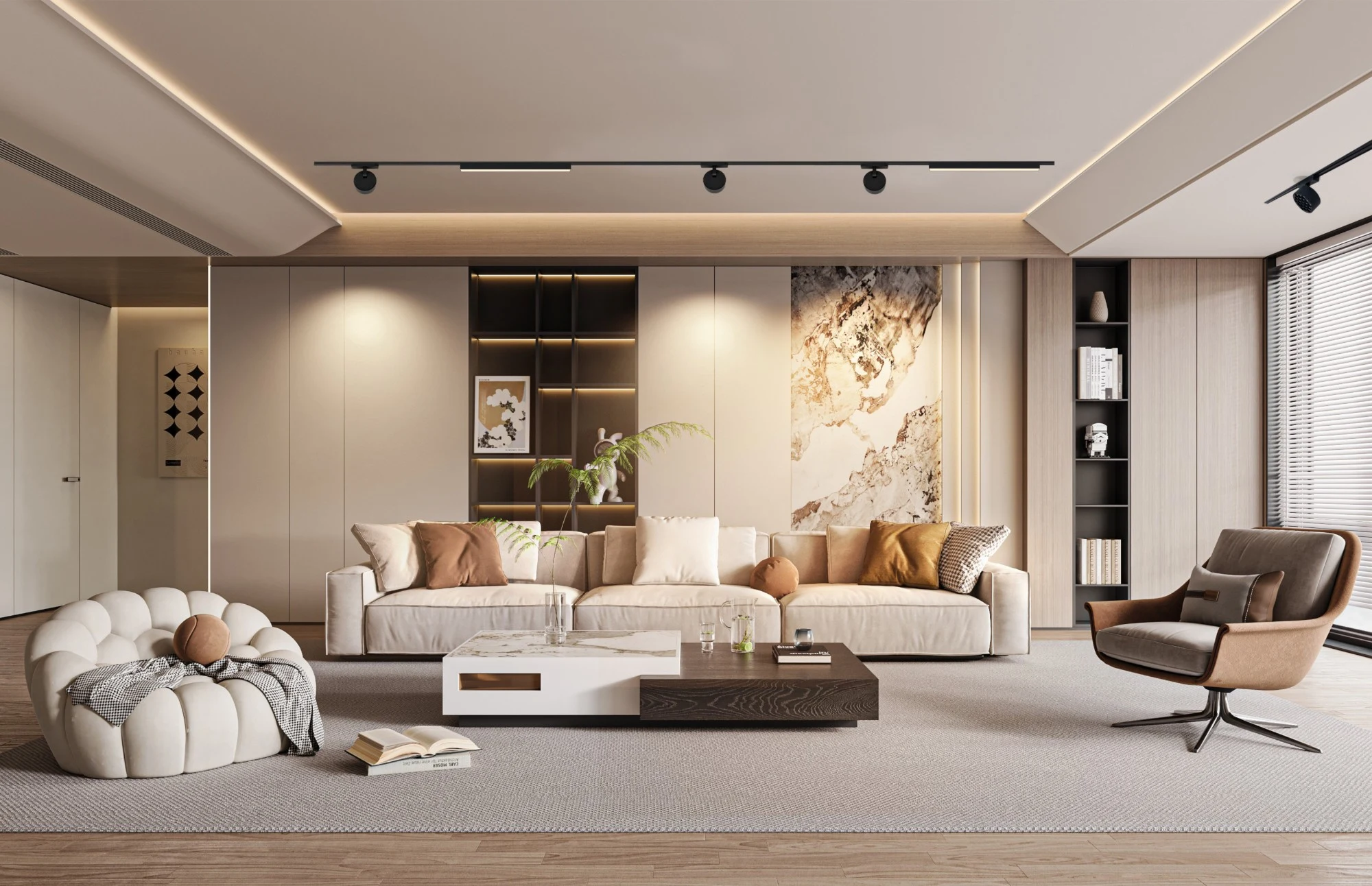

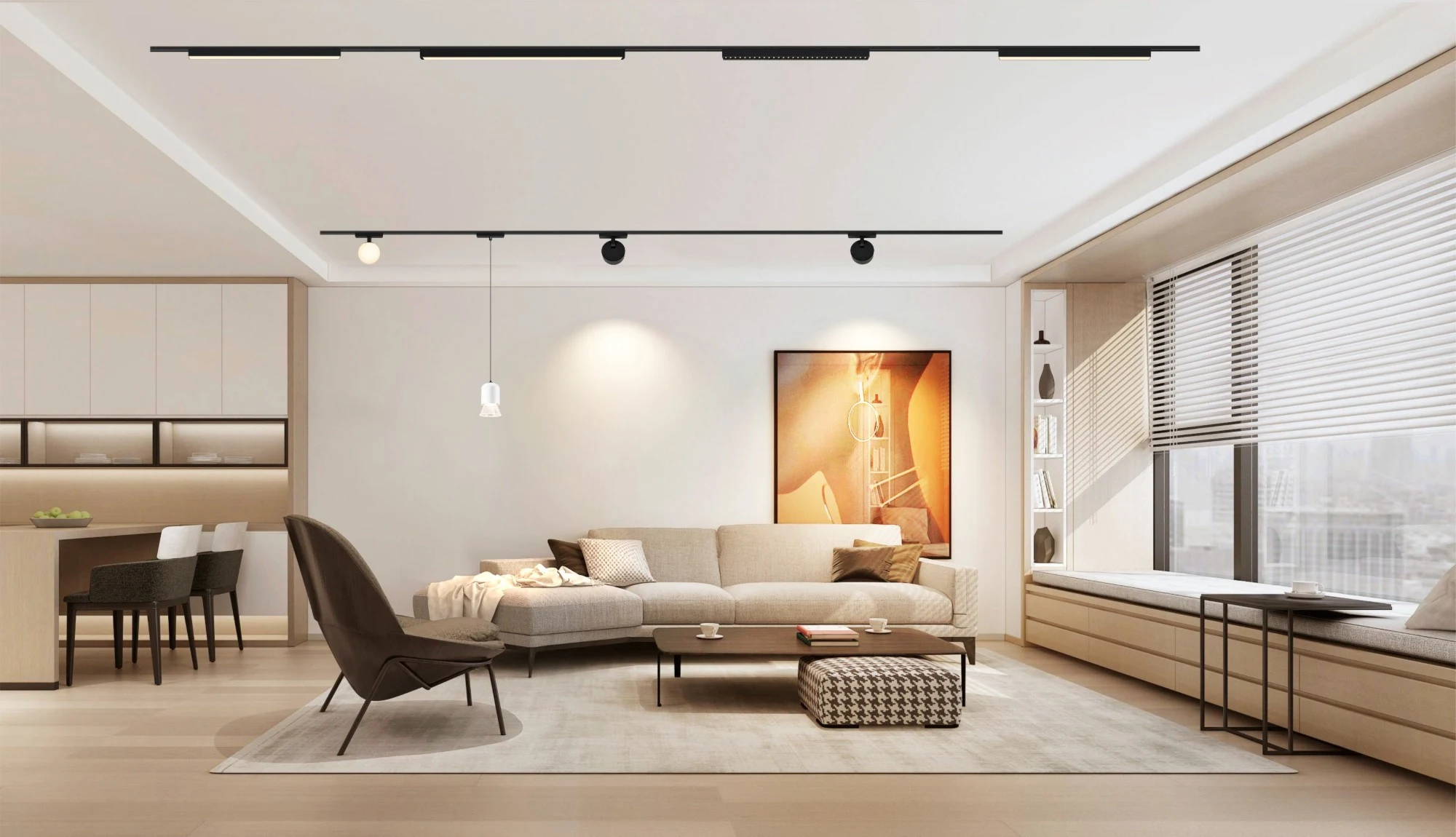

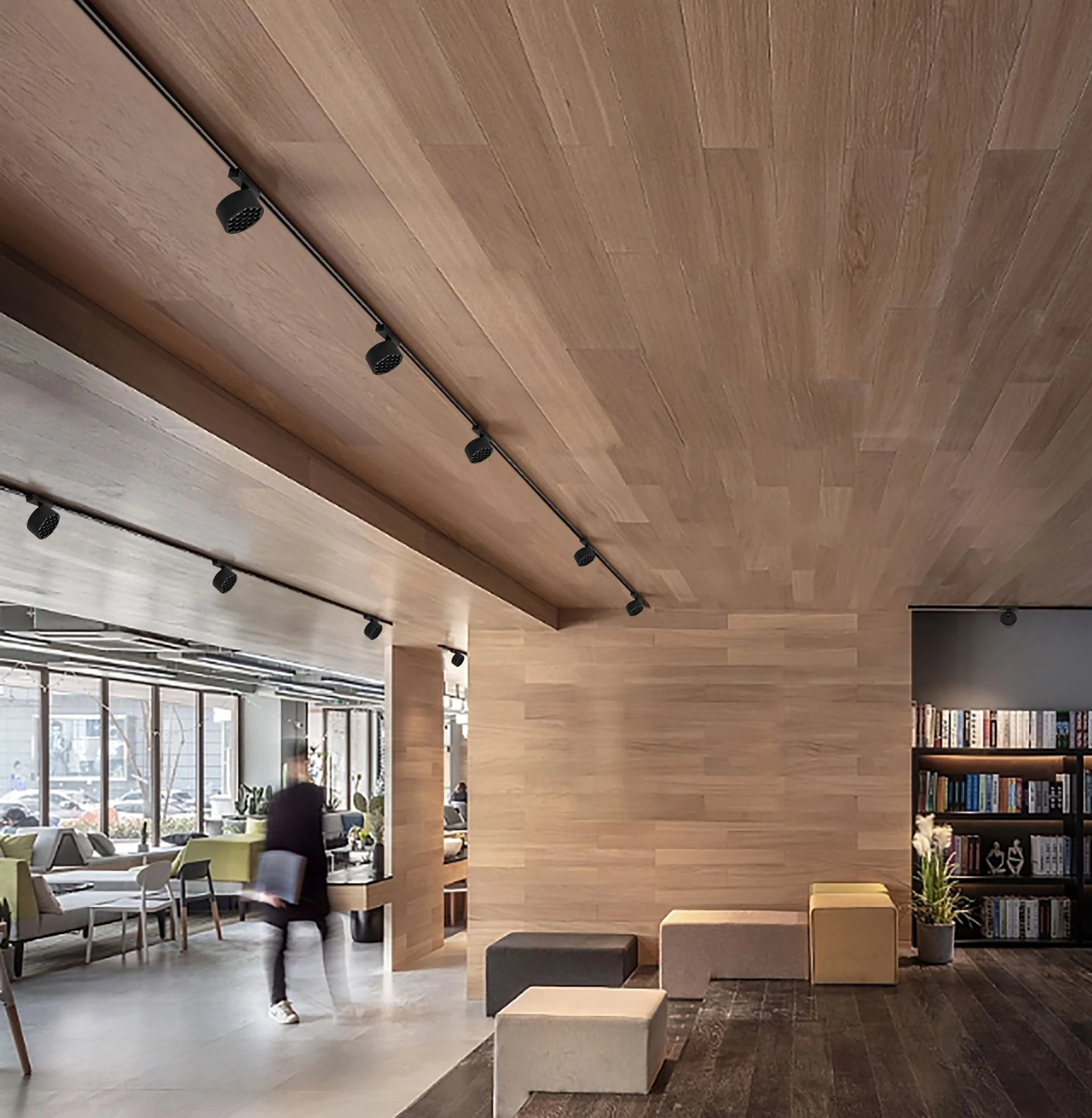

RetailHotelOfficeResidential
Configure Trace
Beam angle
CCT
Control
Order codes by variant
On/OffQV 15200-333
DALIQV 15200-334
Your configuration
CodeQV 15200-333
FinishSandy White / Sandy Black
Beam angle30°
CCT3000K
ControlOn/Off
PriceSign in to view

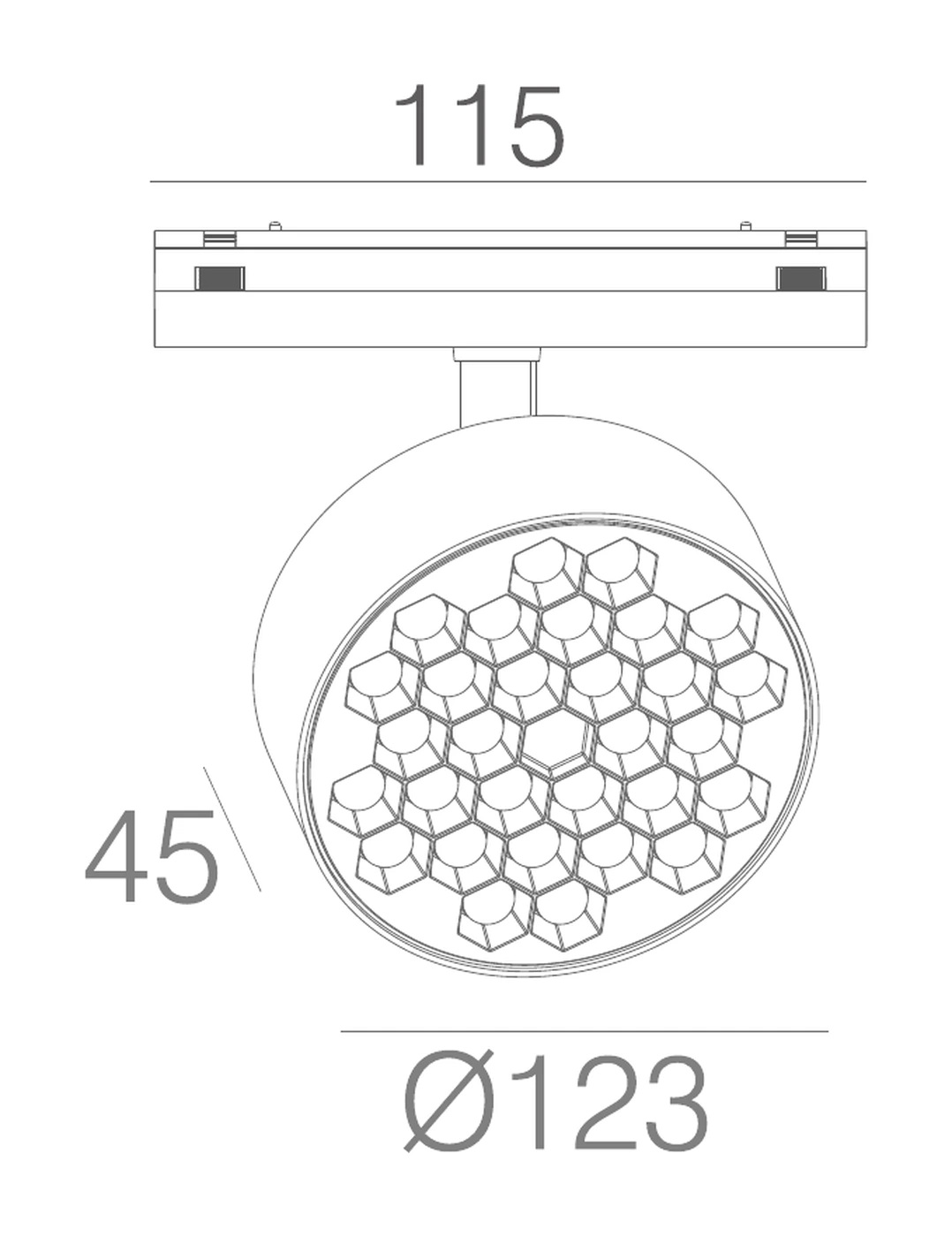

Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | Ø123*H45mm |
| Case material | Aluminum |
