Trace series · 48V magnetic track
Trace Linear 20 12W
QV 15200-233A 48V magnetic-track linear drawing 12W at 110°, supplied in Sandy White or Sandy Black. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.
Trace Linear 20 12W (QV 15200-233) is built as a track luminaire and specified at LED 12W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 880.9lm (3000K) / 902.9lm (4000K) / 924.3lm (5000K) |
| CCT, K | 3000K/4000K/5000K |
| Power consumption, W | 12W · DC 48V |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <22 |
| Luminous efficacy | 82.4 lm/W |
| Light source | OSRAM 2835 3V 0.5W |
| Driver output | DC15-42V 300mA |
| Driver efficiency | ≥92% |
| IP Code | IP20 |
| Size | L293*W25*H28.8mm |
| Finishes | Sandy White · Sandy Black |

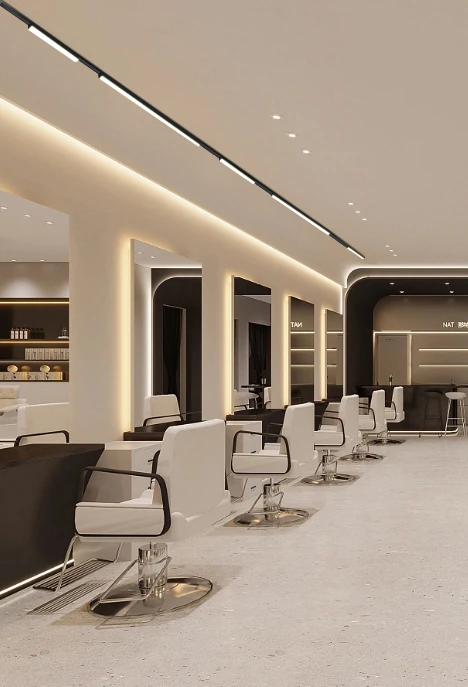

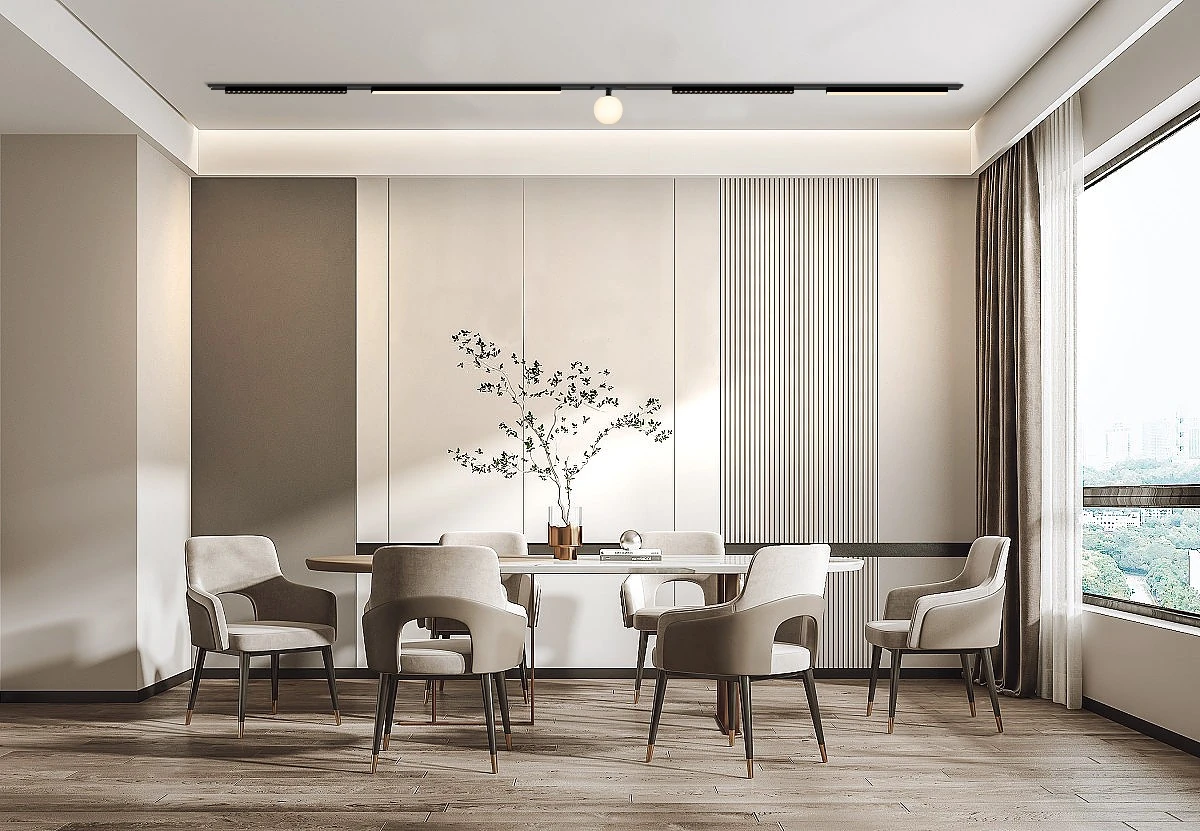

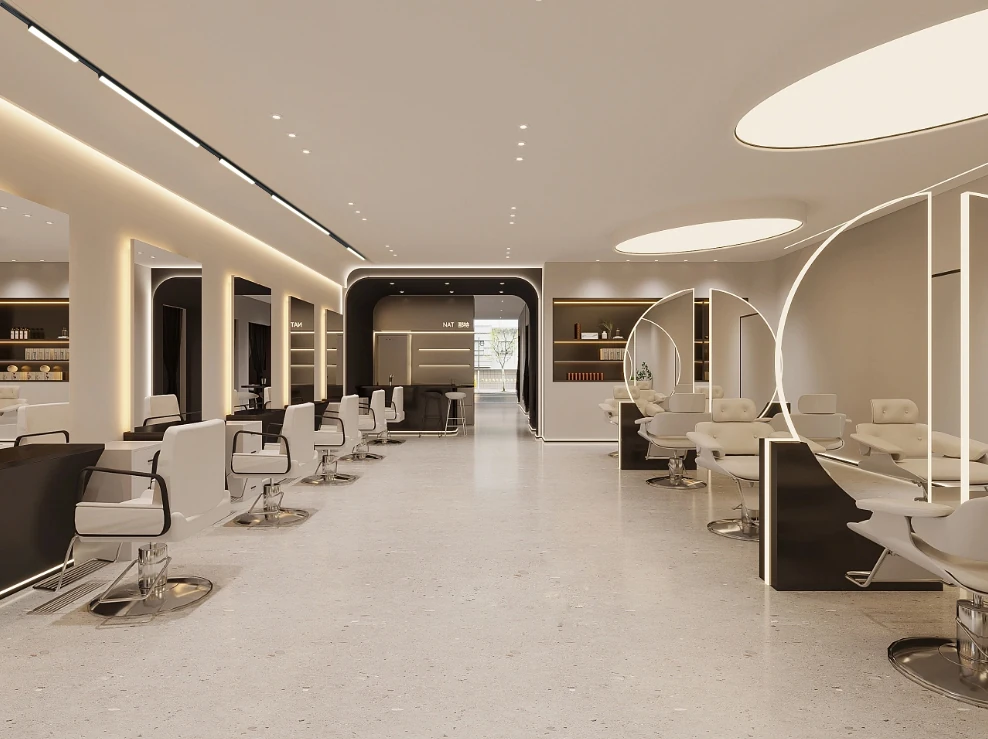

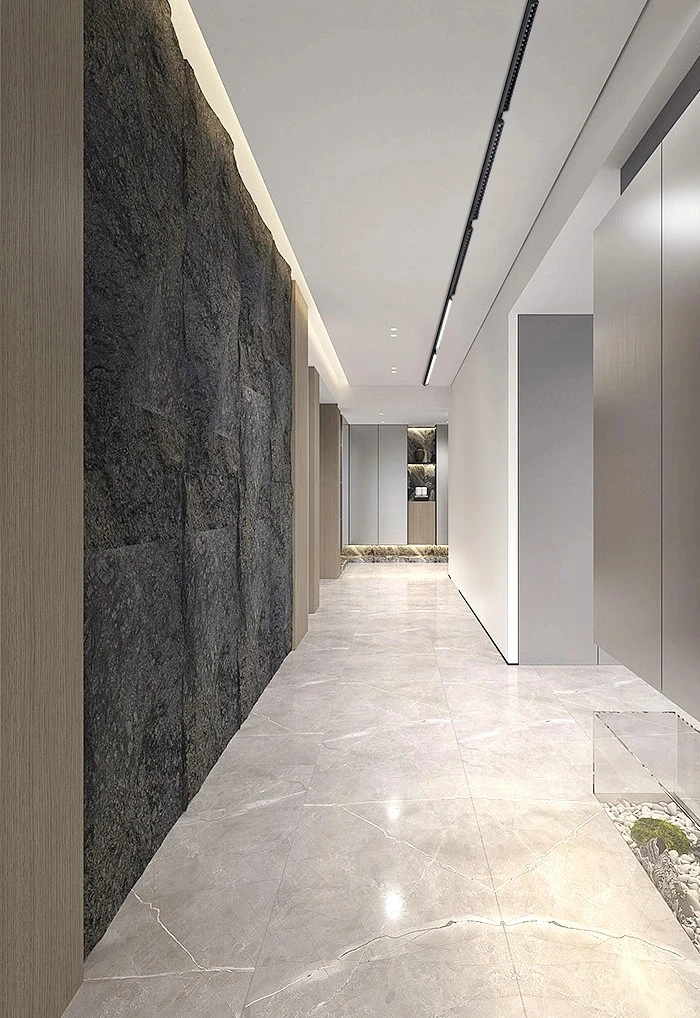

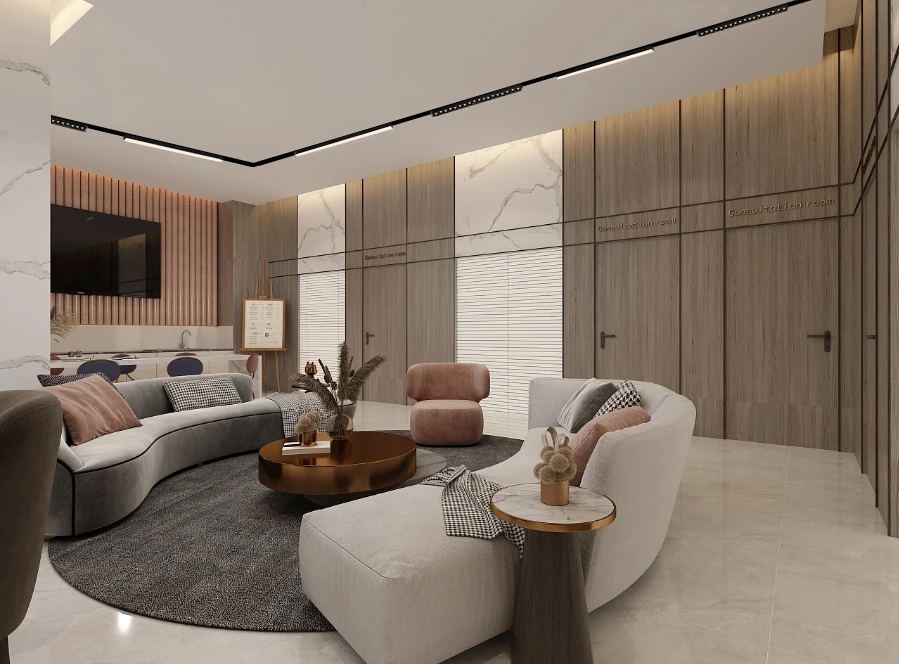

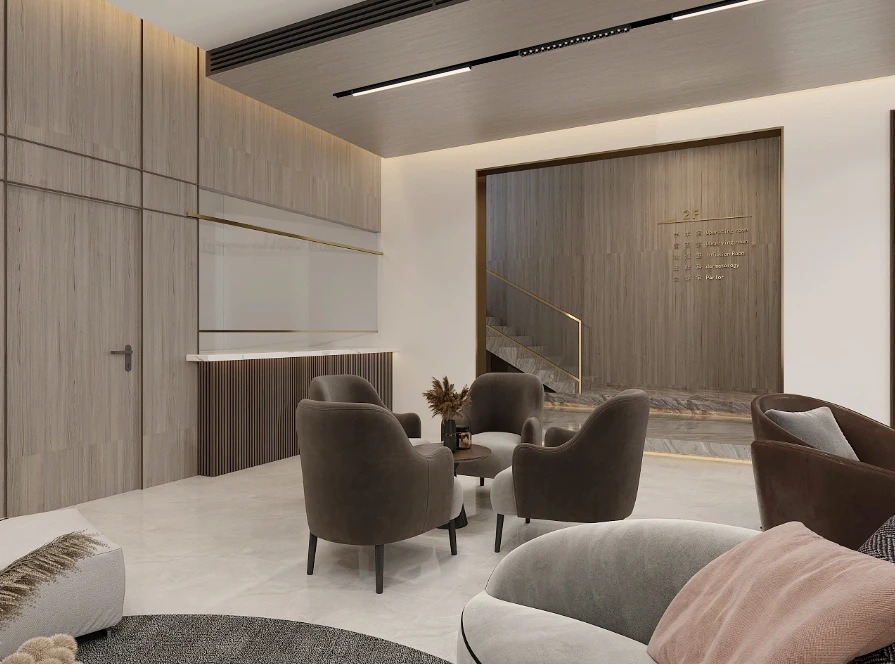

Applications
RetailHotelOfficeResidential
Configure Trace
Your configuration
CodeQV 15200-233
FinishSandy White / Sandy Black
Power12W
CCT3000K
ControlOn/Off
PriceSign in to view
Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | L293*W25*H28.8mm |
| Case material | Aluminum |
| Working temperature | -10°C…+40°C |
| Product standard | IEC / EN 60598-1 |
| Certification | ErP |
| Warranty | 3 years |
