Trace Downlight 123 5W
QV 15200-343A 48V magnetic-track downlight drawing 5W at 80°, supplied in Sandy White or Sandy Black. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.

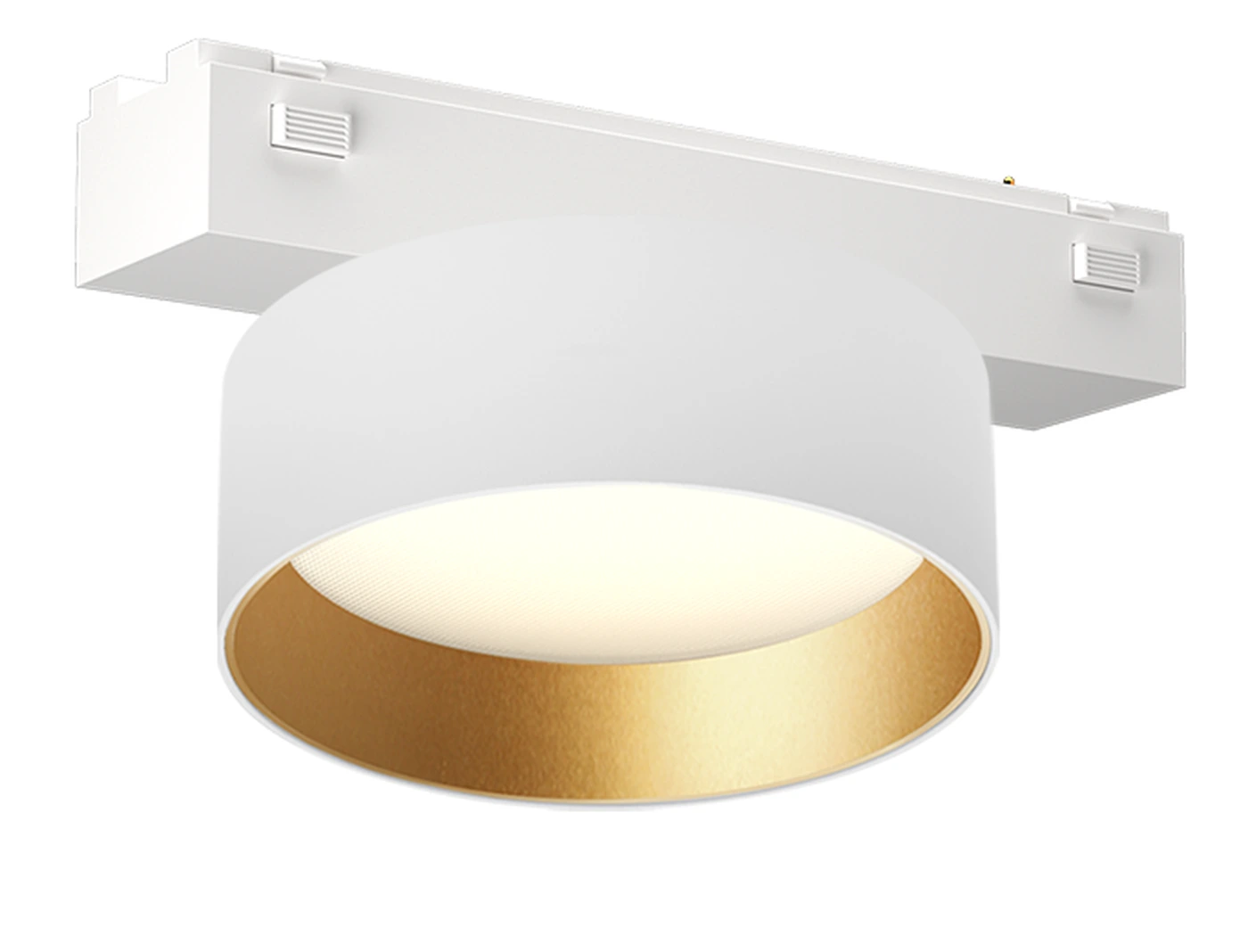

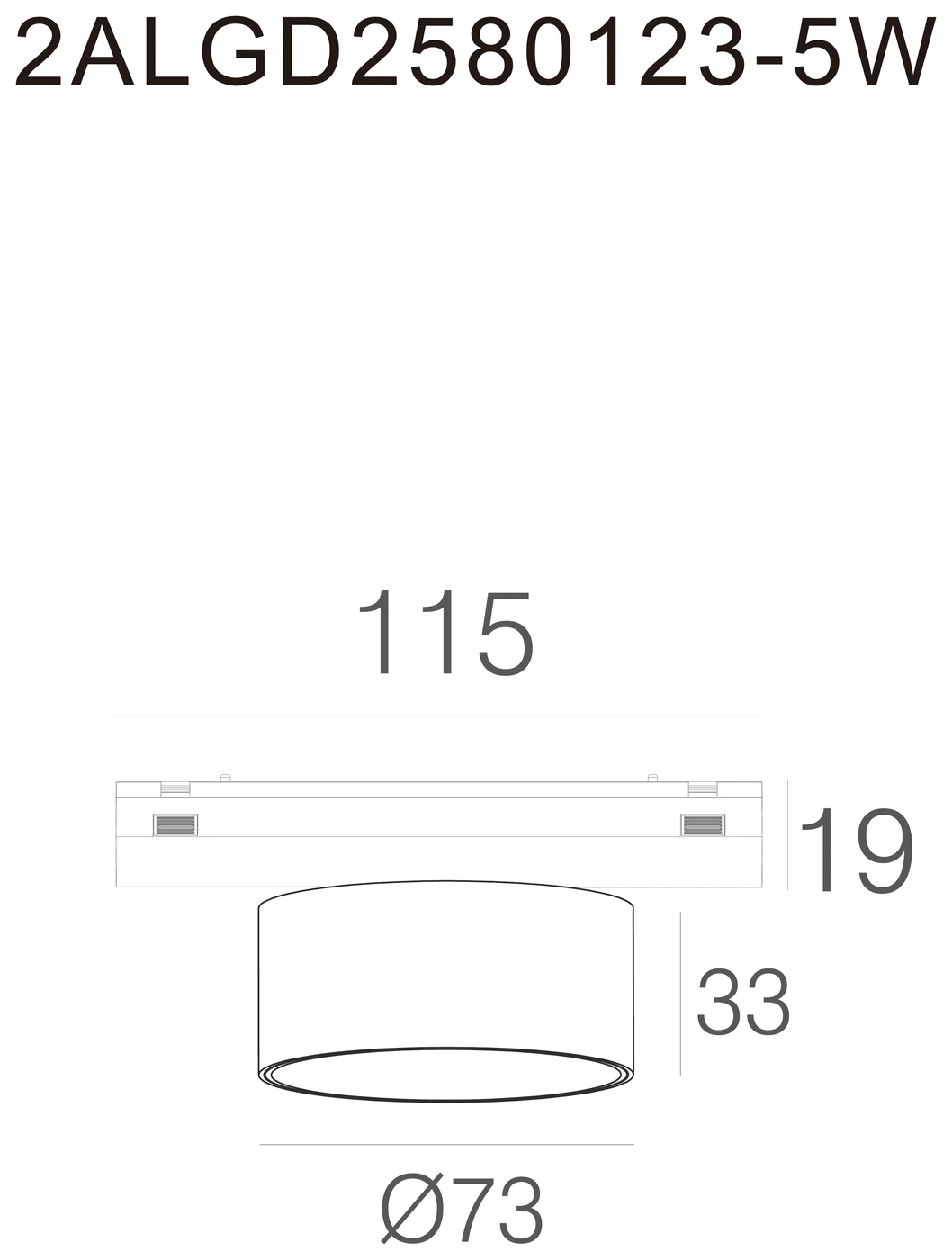

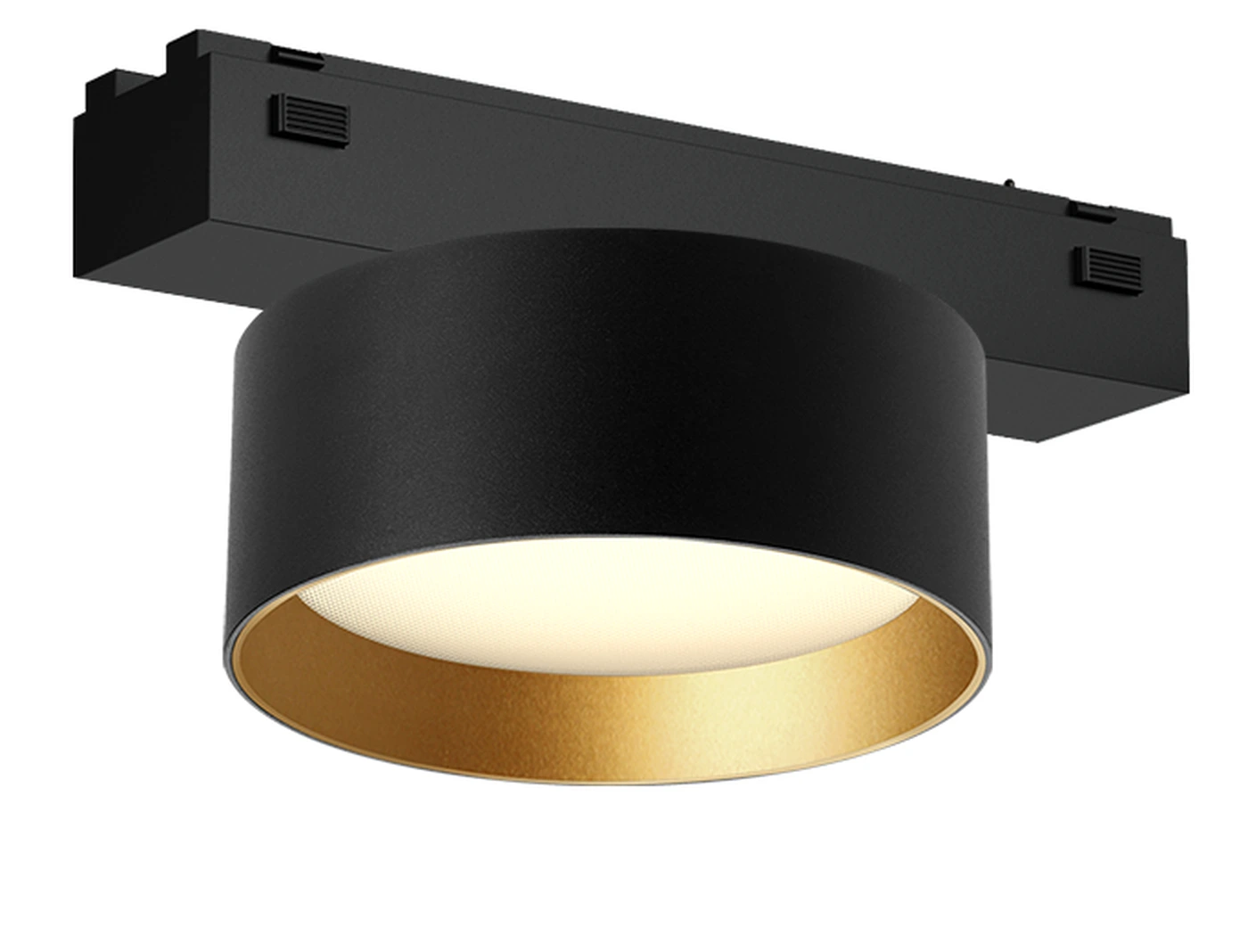

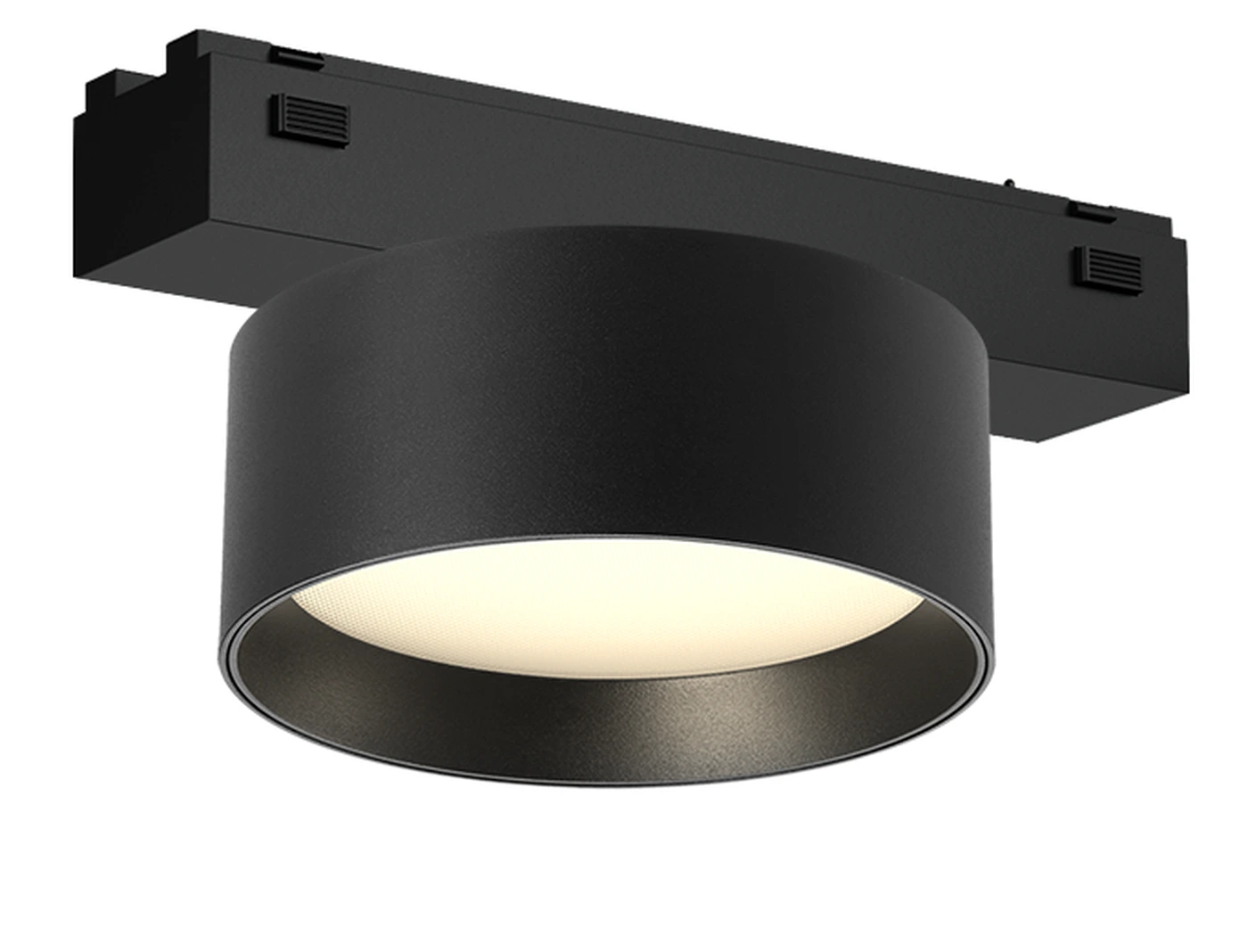

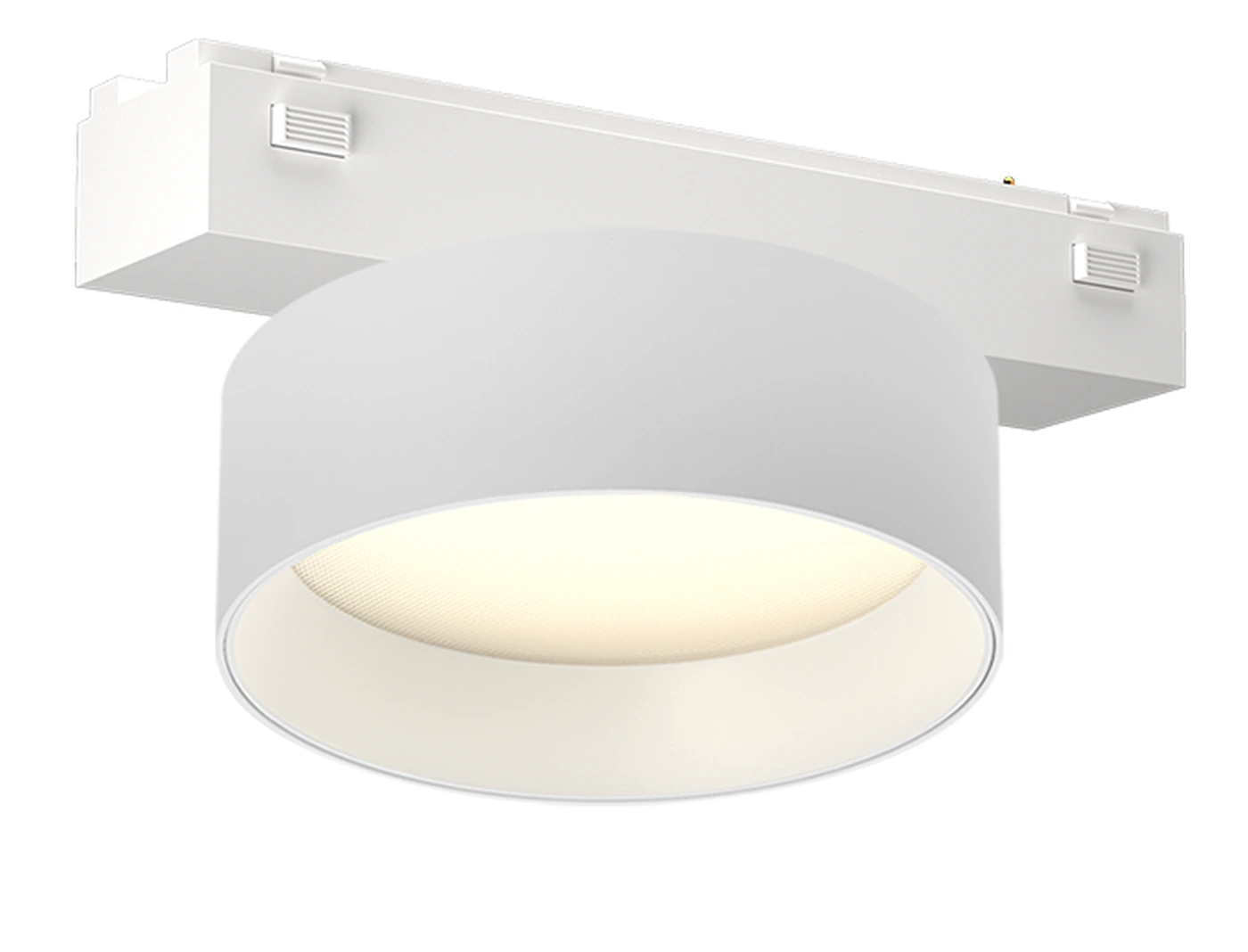

Trace Downlight 123 5W (QV 15200-343) is built as a track luminaire and specified at LED 5W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Availability | Made to order |
| Luminous flux, lm | 147.2lm (measured 2.16 W at test) |
| CCT, K | 3000K/4000K/5000K |
| Power consumption, W | 5W · DC 48V |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <22 |
| Light source | OSRAM |
| Driver output | DC3-42V 150mA |
| Driver efficiency | ≥92% |
| IP Code | IP20 |
| Size | ϕ73*H33mm |
| Finishes | Sandy White · Sandy Black |

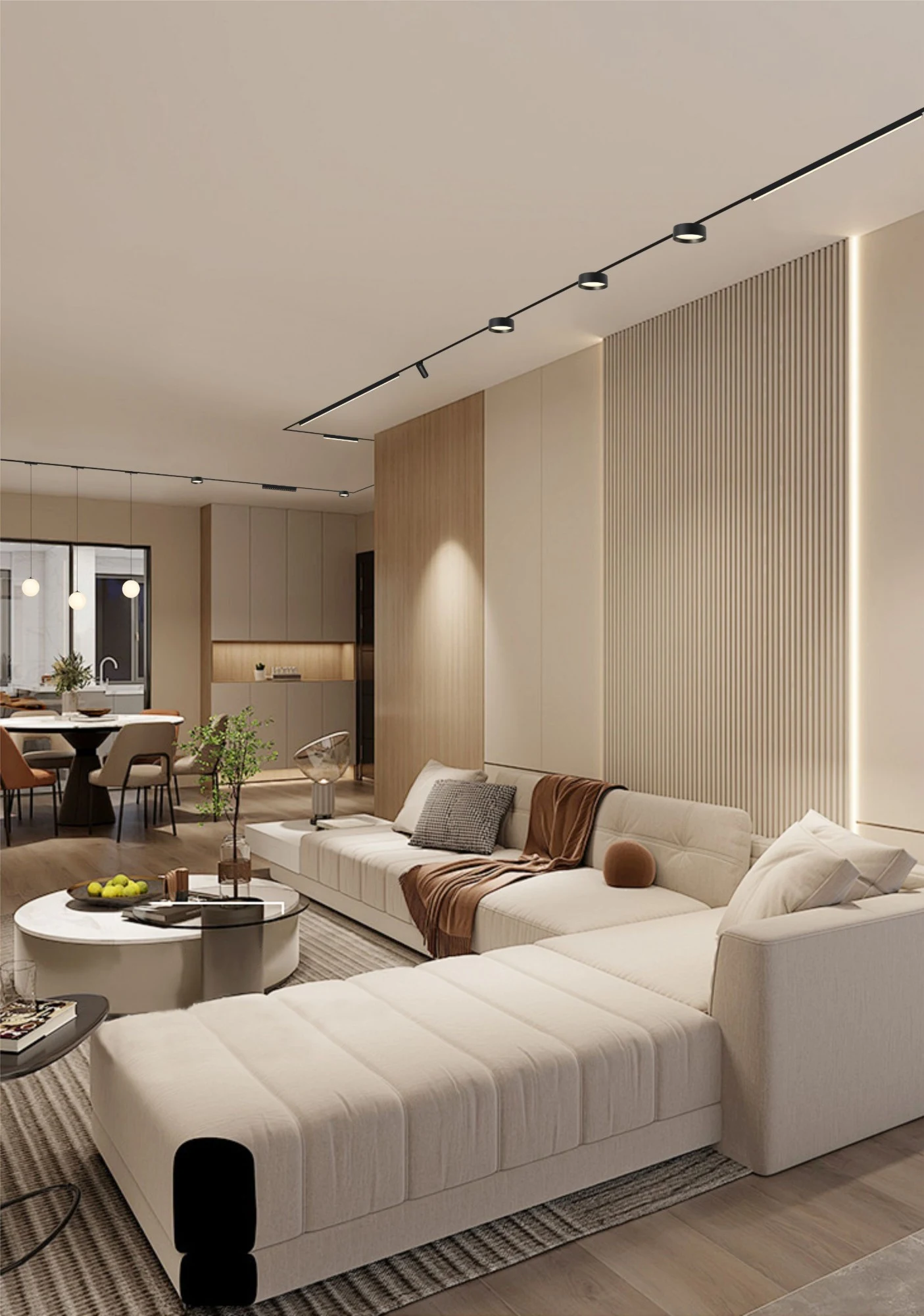

Applications
Configure Trace
Your configuration
Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | ϕ73*H33mm |
| Case material | Aluminum |
| Warranty | 3 years |
Downloads
The simplified 3D model is an envelope generated from the published dimensions for layout and clash checks; it carries no optics, driver or fixing detail. The manufacturer's CAD is supplied on request.
