Trace series · 48V magnetic track
Trace Globe 63 8W · 120mm

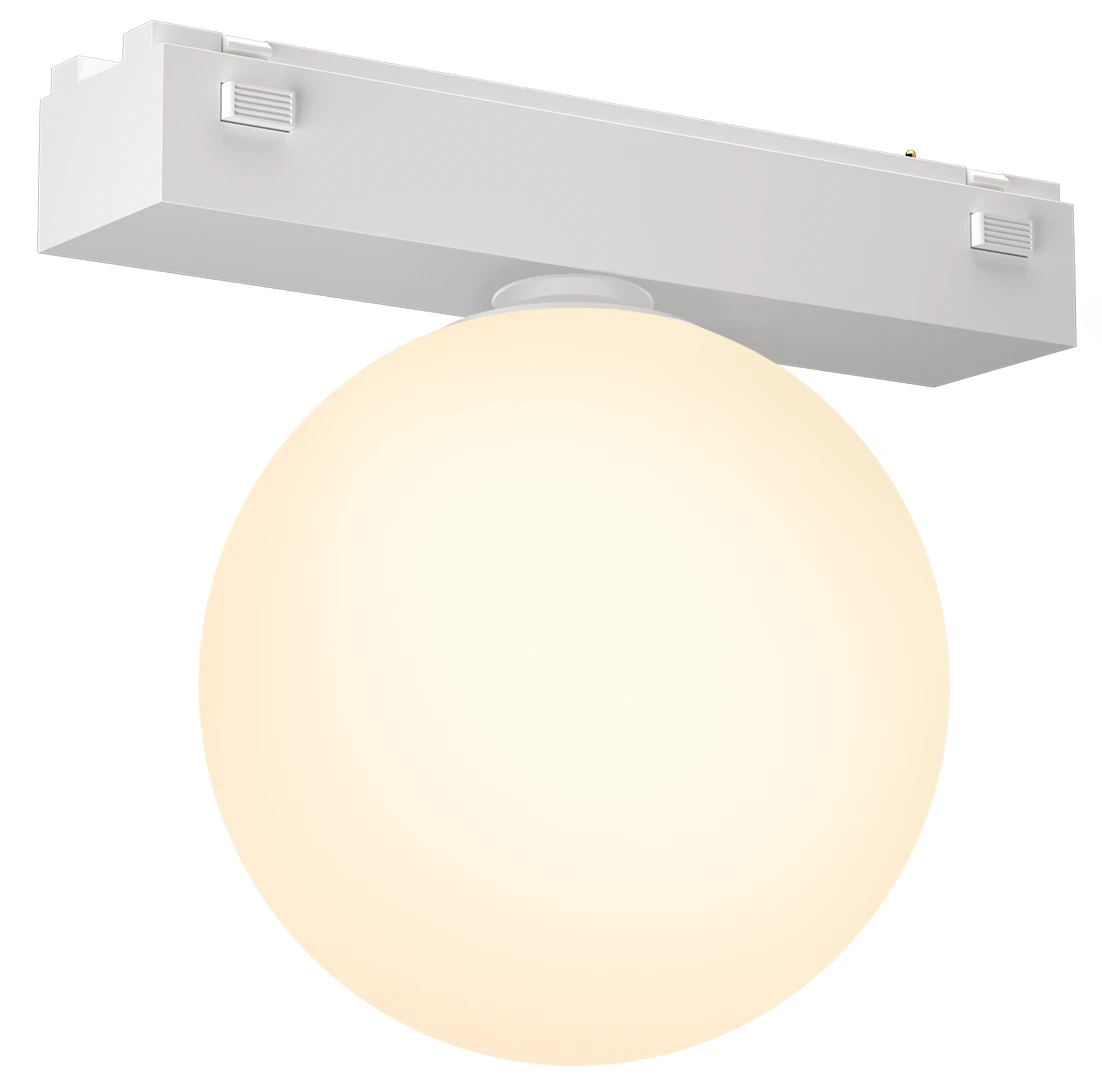

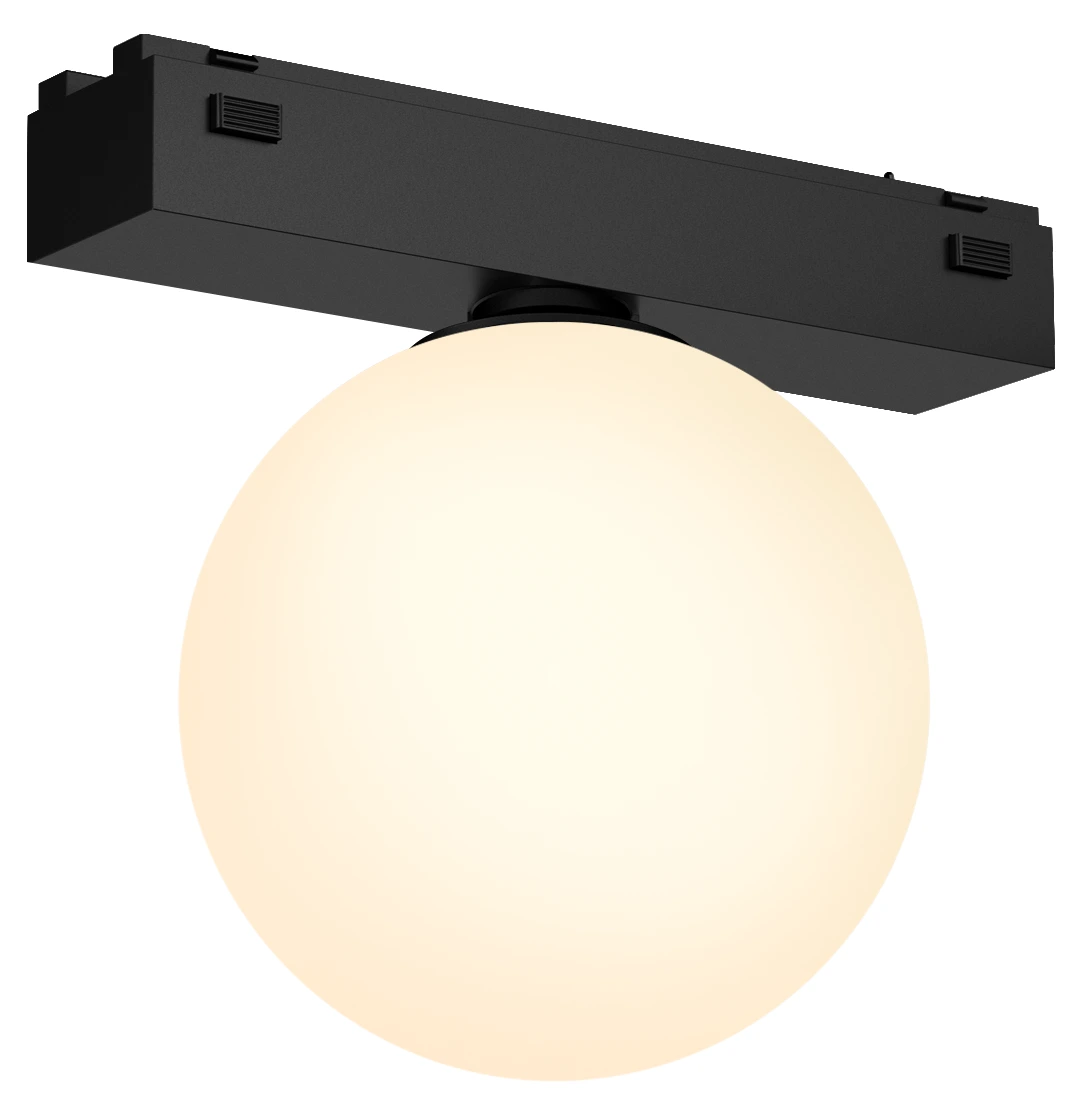

QV 15200-321A 48V magnetic-track globe drawing 8W at 360°, supplied in Sandy White or Sandy Black. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.
Trace Globe 63 8W · 120mm (QV 15200-321) is built as a track luminaire and specified at LED 8W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 758.3lm (measured) |
| CCT, K | 3000K/4000K/5000K |
| Power consumption, W | 8W · DC 48V |
| Color rendering (CRI) | ≥90 |
| IP Code | IP20 |
| Size | Ø120*H144 |
| Finishes |
Applications
RetailHotelOfficeResidential
Configure Trace
CCT
Control
Order codes by variant
On/OffQV 15200-321
DALIQV 15200-322
Your configuration
CodeQV 15200-321
FinishSandy White / Sandy Black
CCT3000K
ControlOn/Off
PriceSign in to view

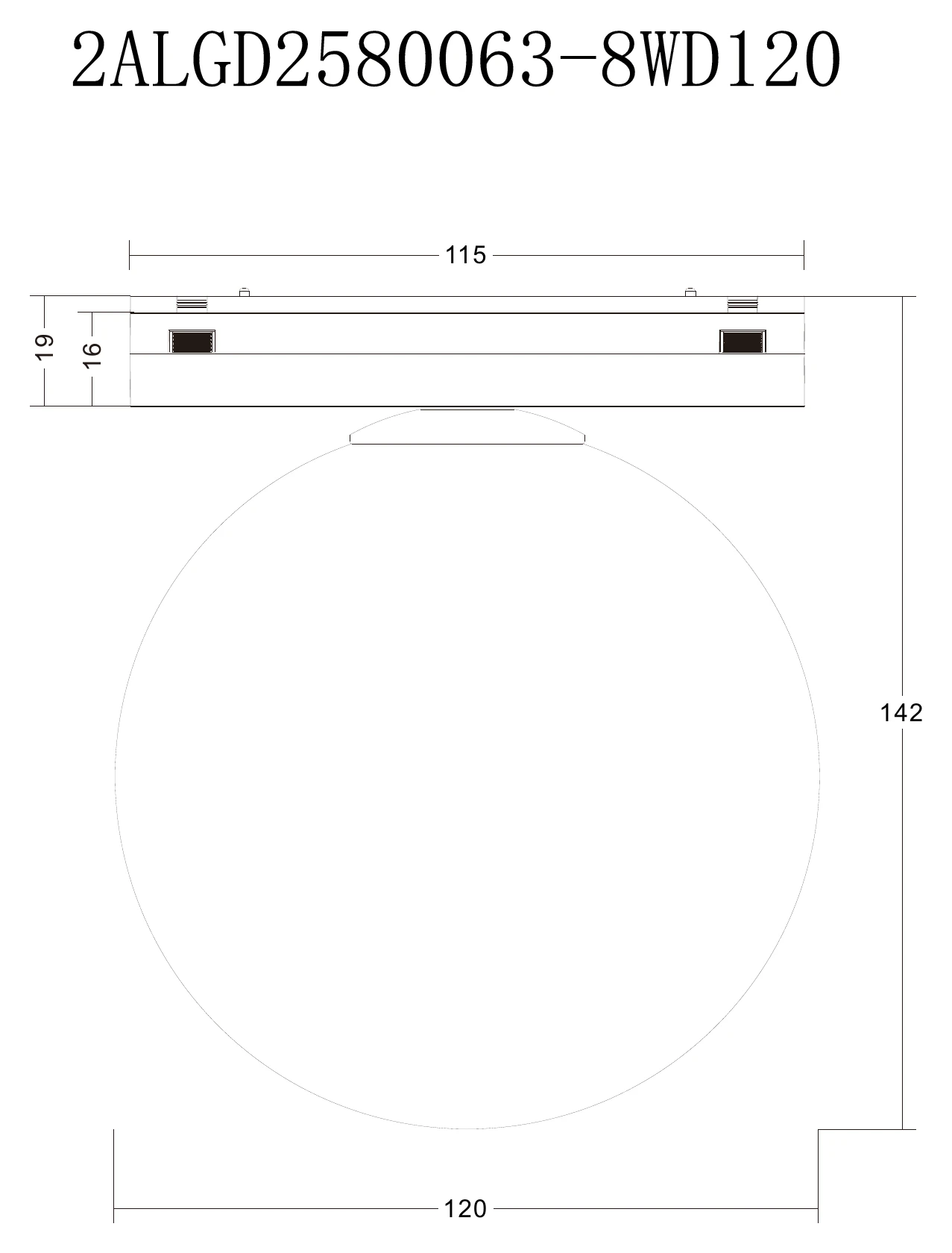

Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | Ø120*H144 |
| Case material | aluminium+glass |
