Trace series · 48V magnetic track
Trace Grille 107 16W

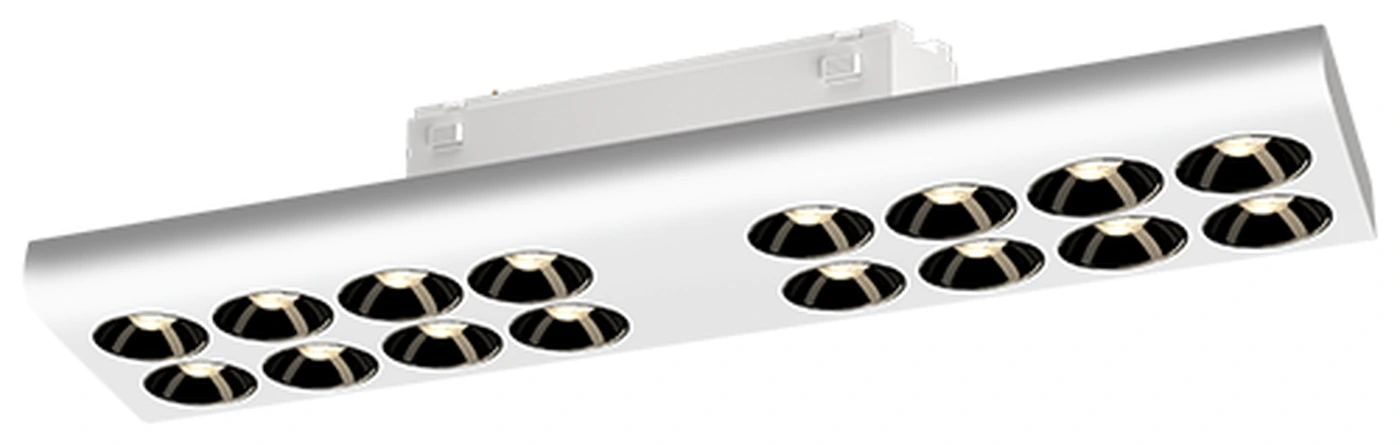

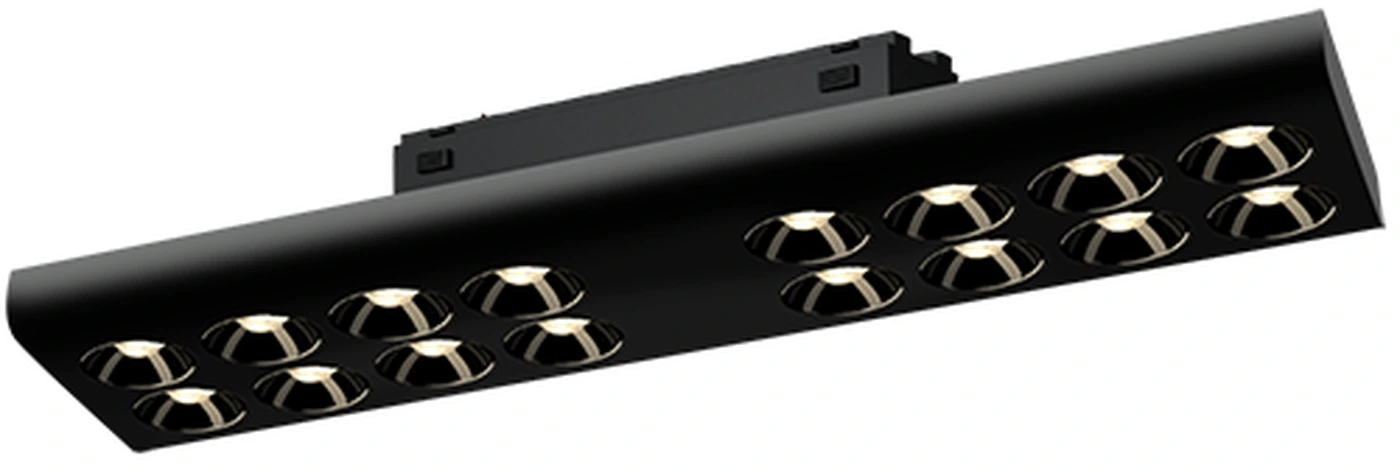

QV 15200-353A 48V magnetic-track grille drawing 16W at 60°/90°, supplied in Sandy White or Sandy Black. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.
Trace Grille 107 16W (QV 15200-353) is built as a track luminaire and specified at LED 16W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 1618.2 / 1666.5lm (measured at 60° / 90°) |
| CCT, K | 3000K/4000K/5000K |
| Power consumption, W | 16W · DC 48V |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <22 |
| Light source | OSRAM |
| Driver output | DC9-42V 400mA |
| IP Code | IP20 |
| Size | L270*W77*H16mm |
| Finishes |

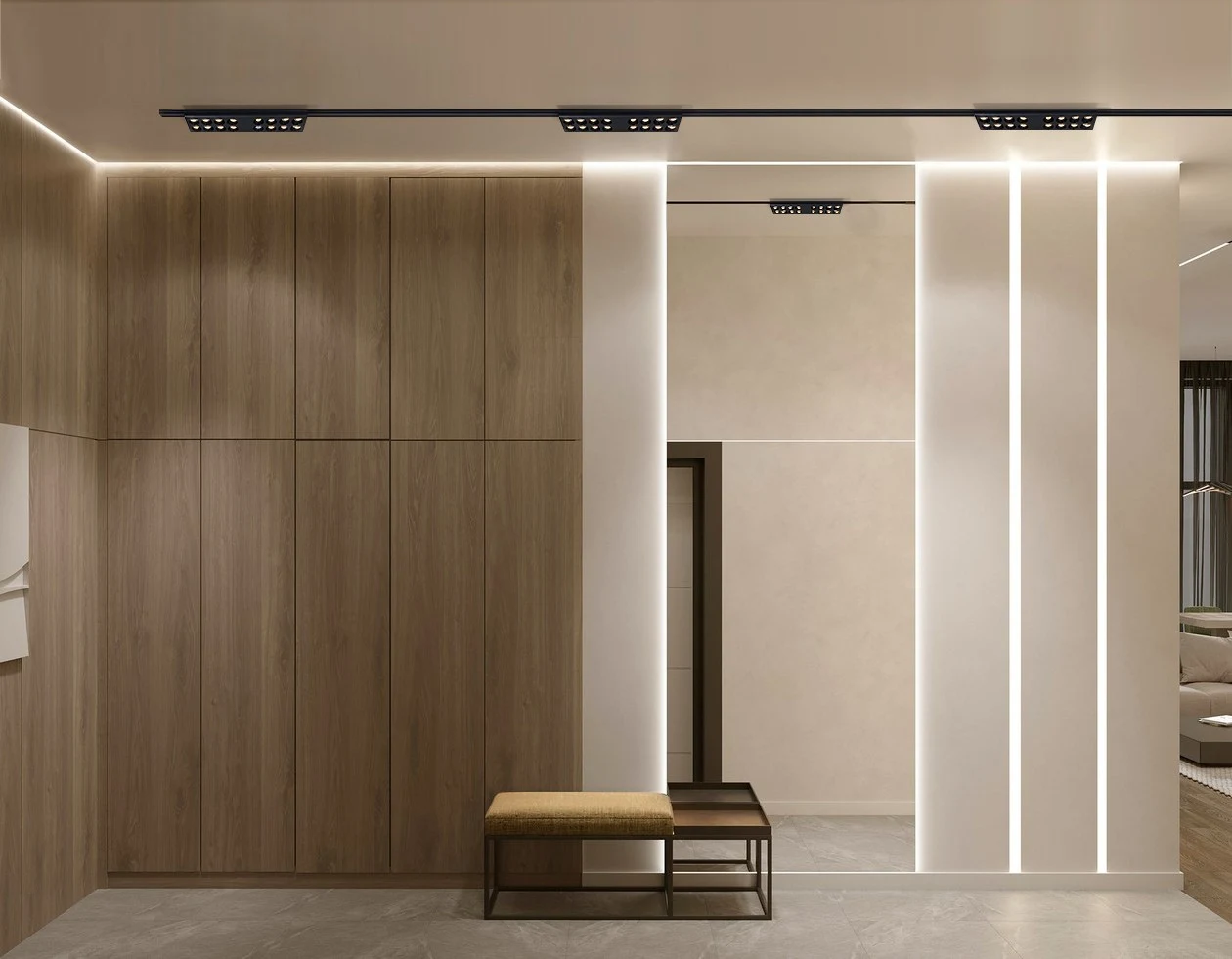

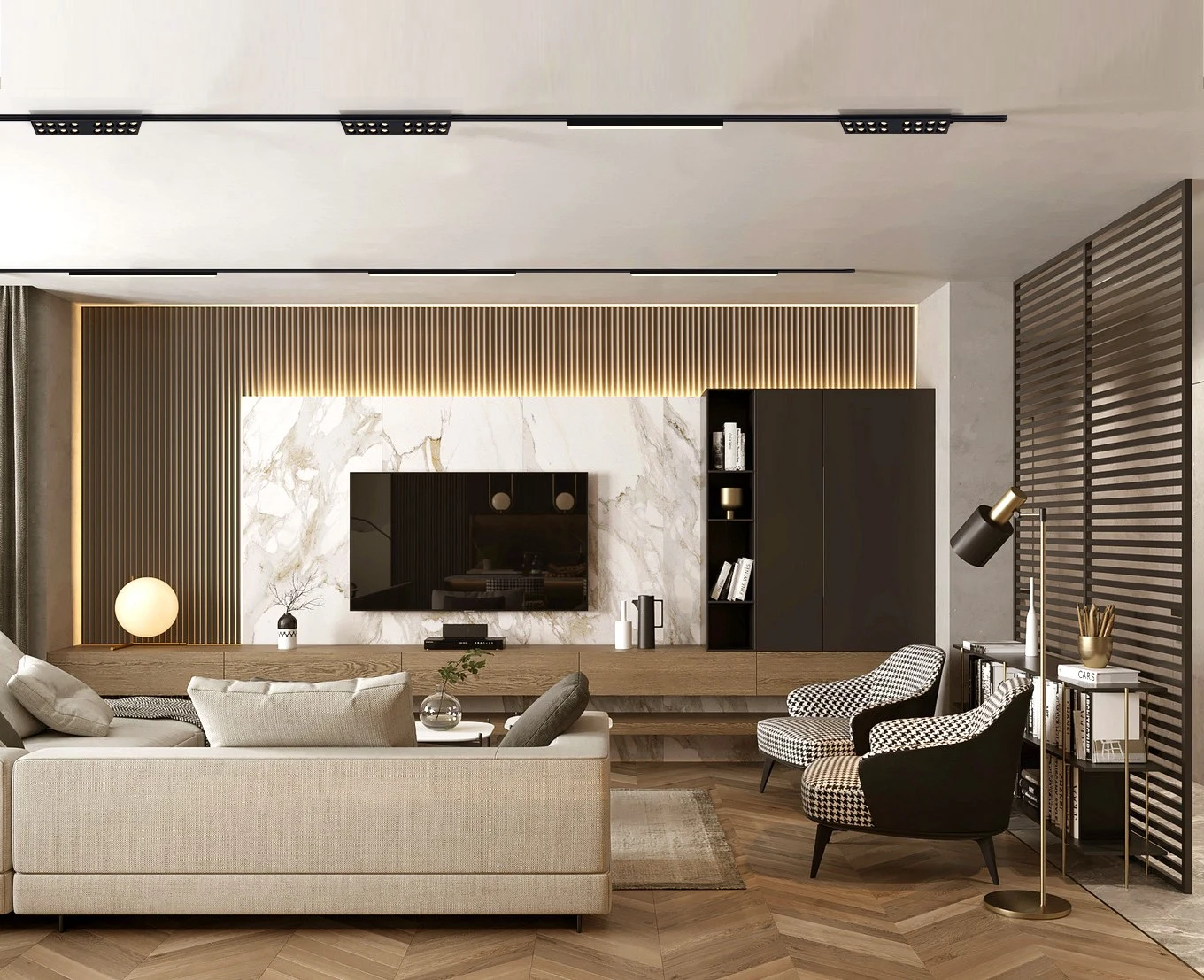

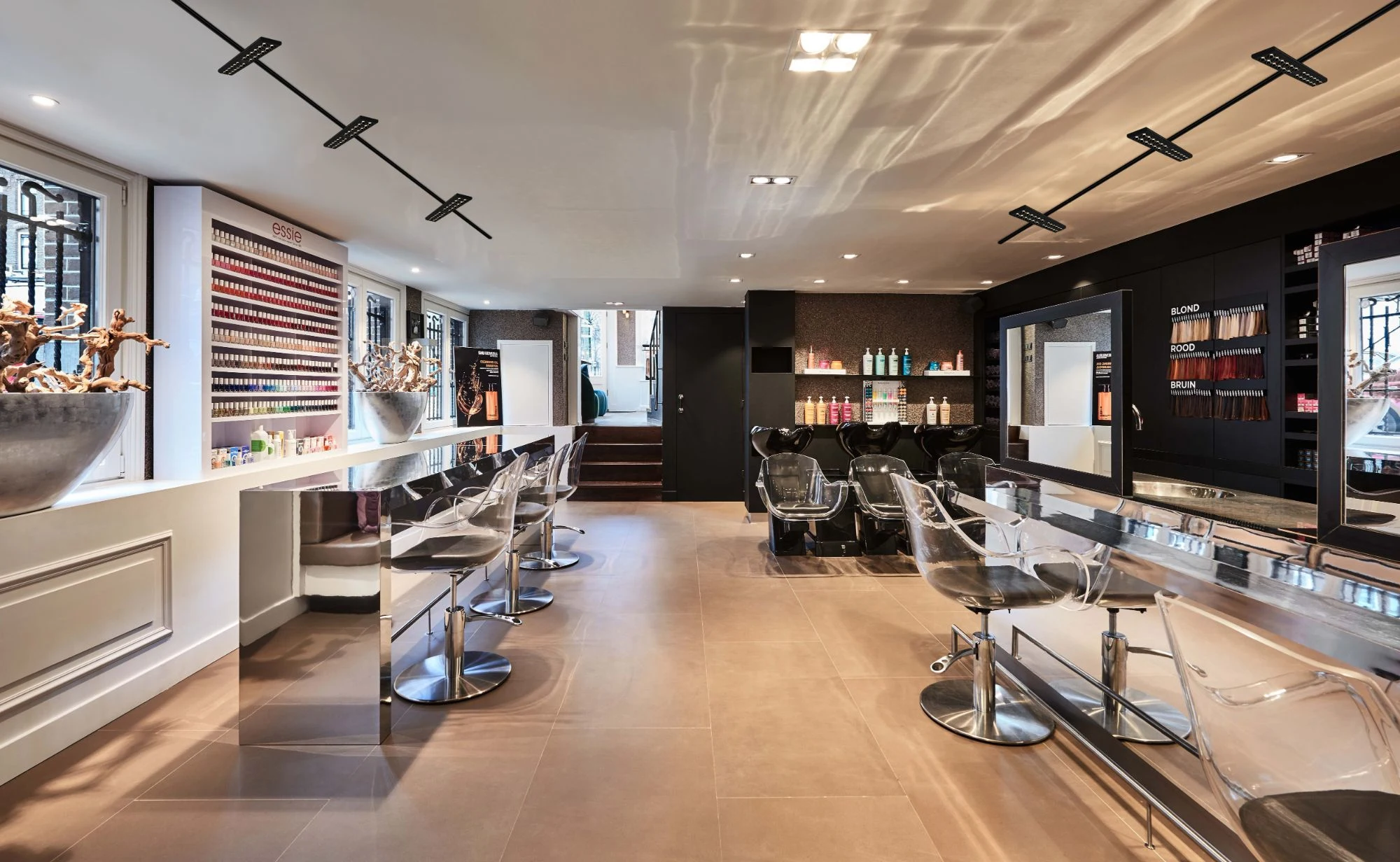

Applications
RetailHotelOfficeResidential
Configure Trace
Beam angle
CCT
Control
Order codes by variant
On/OffQV 15200-353
DALIQV 15200-354
Your configuration
CodeQV 15200-353
FinishSandy White / Sandy Black
Beam angle60°
CCT3000K
ControlOn/Off
PriceSign in to view

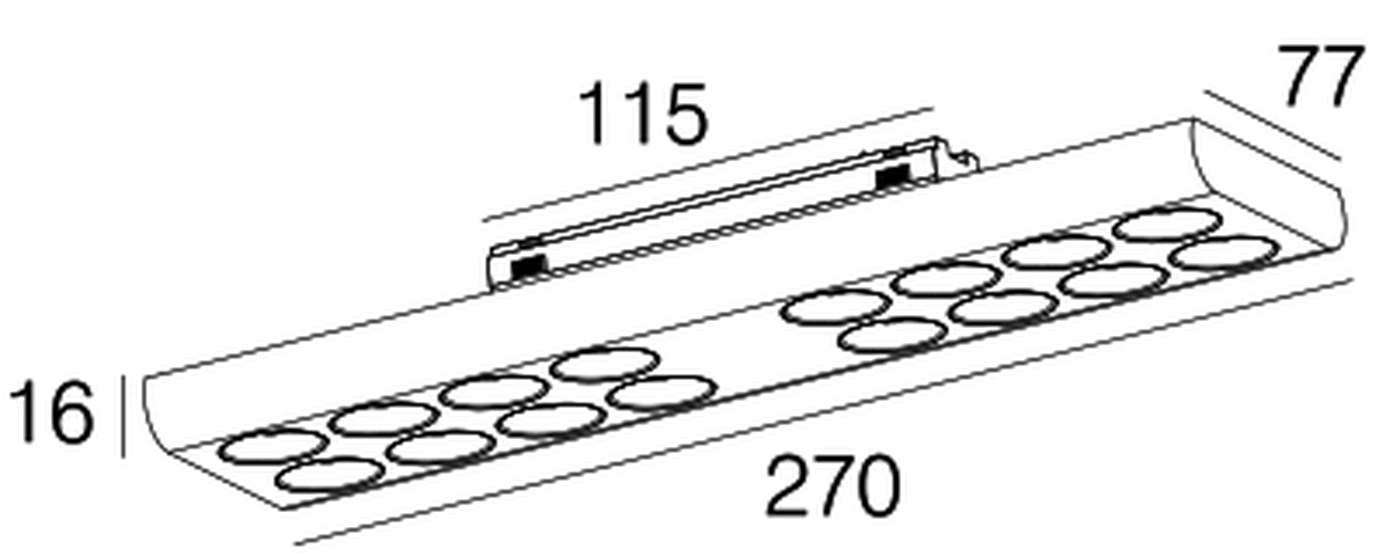

Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | L270*W77*H16mm |
| Case material | Aluminum |
