Trace Spot 31 10W
QV 15200-287A 48V magnetic-track spot drawing 10W at 15°/24°/36°, supplied in Sandy White or Sandy Black. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.

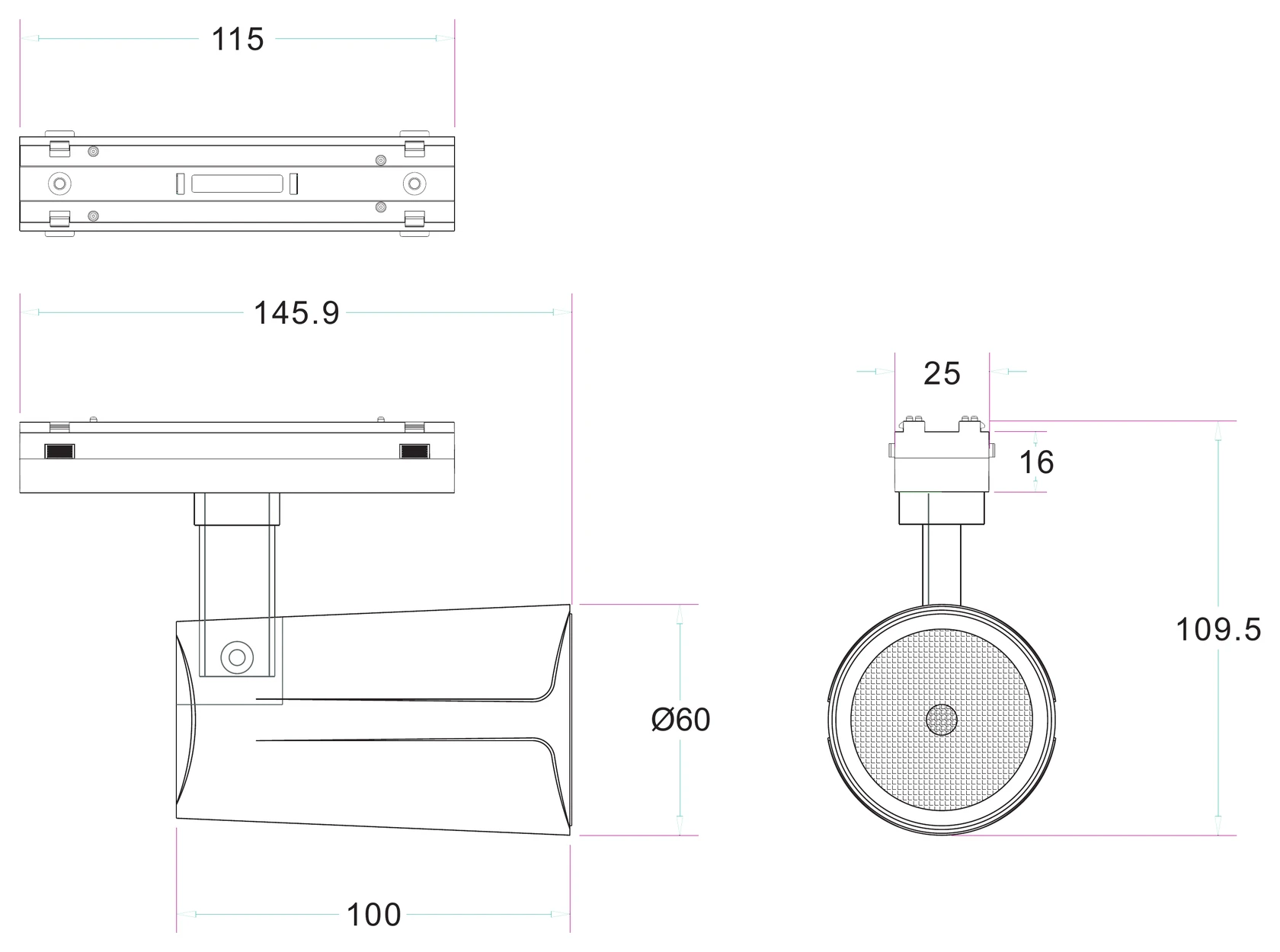

Trace Spot 31 10W (QV 15200-287) is built as a track luminaire and specified at LED 10W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Availability | Made to order |
| Luminous flux, lm | 769.6lm (3000K, measured) |
| CCT, K | 3000K/4000K/5000K |
| Power consumption, W | 10W · DC 48V |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <22 |
| Light source | OSRAM COB 1203 |
| Driver output | DC15-42V 250mA |
| Driver efficiency | ≥92% |
| IP Code | IP20 |
| Size | Ø60*100*109.5mm |
| Finishes | Sandy White · Sandy Black |
Applications
Configure Trace
Your configuration
Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | Ø60*100*109.5mm |
| Case material | Aluminum+PMMA |
| Warranty | 3 years |
Downloads
The simplified 3D model is an envelope generated from the published dimensions for layout and clash checks; it carries no optics, driver or fixing detail. The manufacturer's CAD is supplied on request.
