Trace series · 48V magnetic track

Trace Spot 33 15W

QV 15200-374

A 48V magnetic-track spot drawing 15W at 15°/24°/38°/60°, supplied in Sandy White or Sandy Black. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.

Trace Spot 33 15W (QV 15200-374) is built as a track luminaire and specified at LED 15W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.

Luminous flux, lm1234.5lm (3000K, measured)
CCT, K 3000K/4000K/5000K
Power consumption, W15W · DC 48V
Color rendering (CRI)≥90
IP CodeIP20
SizeØ95*65 mm
Finishes

Applications

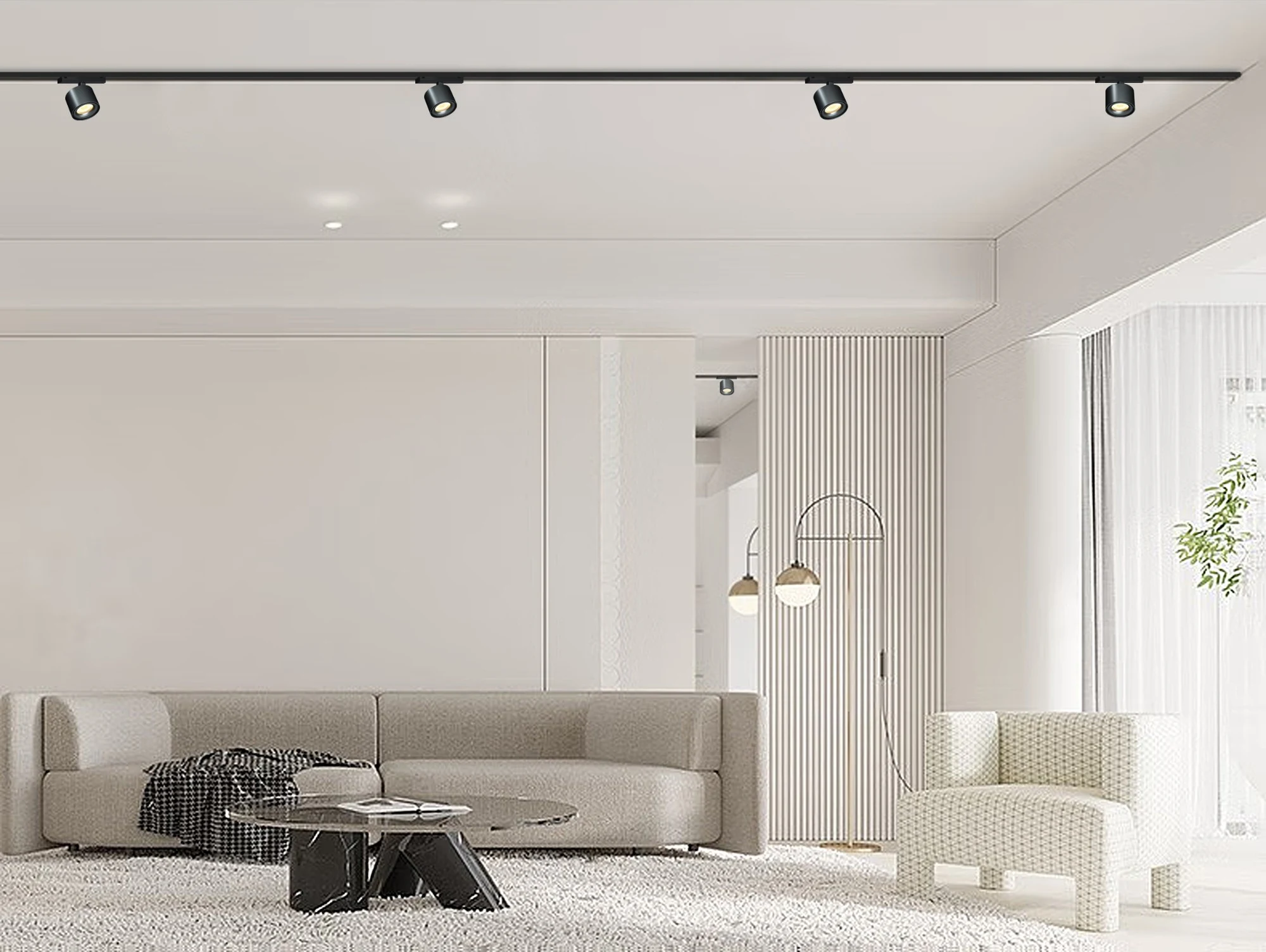

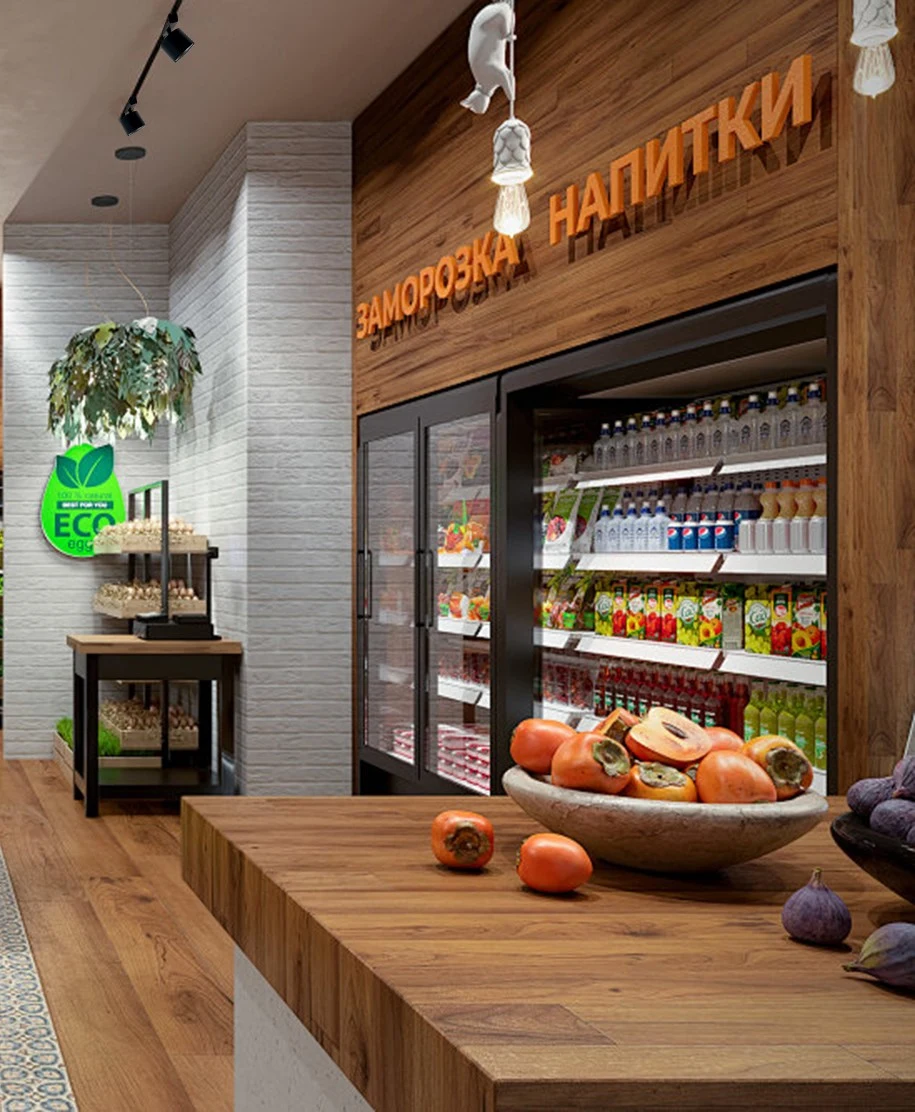

RetailHotelOfficeResidential

Configure Trace

Beam angle

CCT

Control

Your configuration

CodeQV 15200-374

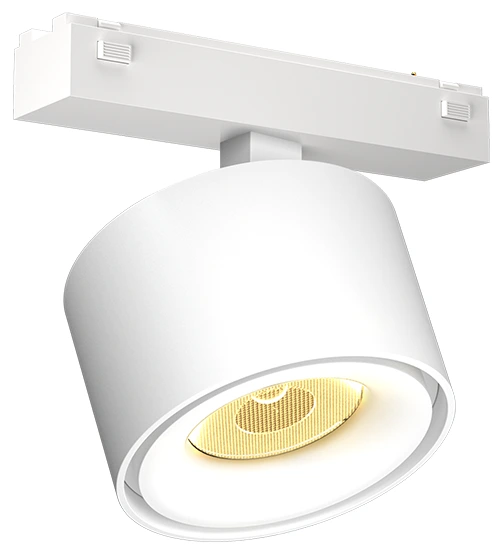

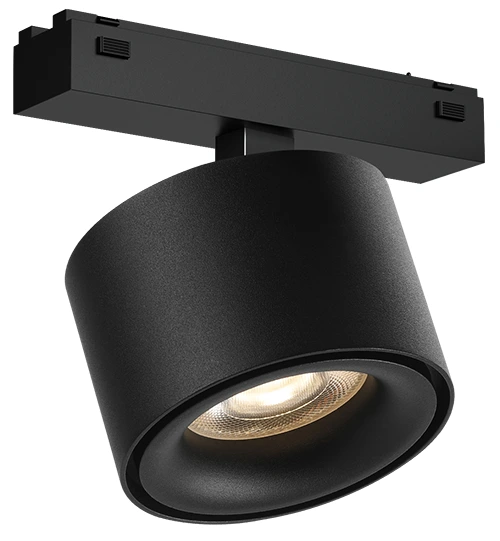

FinishSandy White / Sandy Black
Beam angle15°
CCT3000K
ControlOn/Off

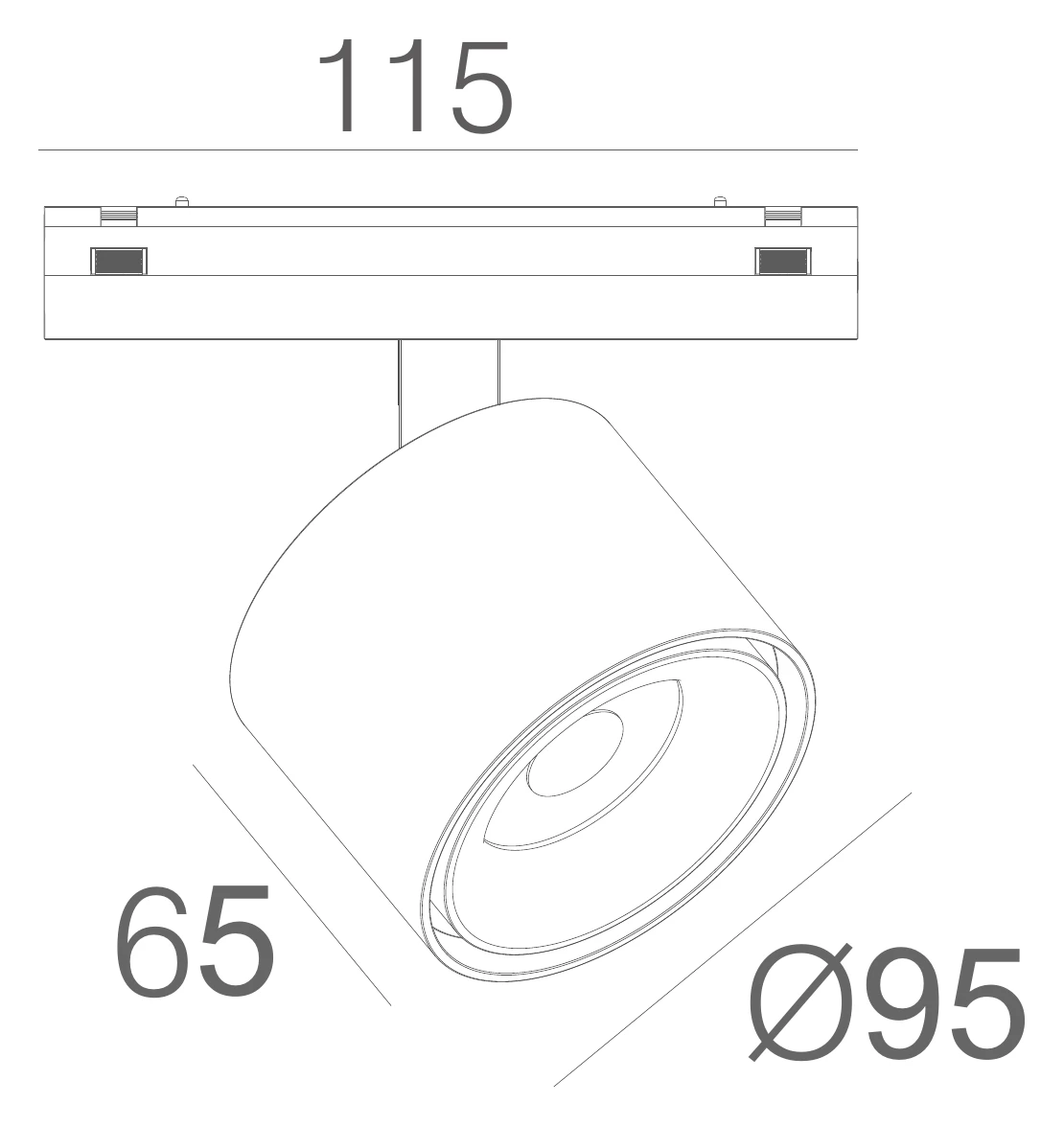

Dimensions & mounting

Ø95 65
MountingTrack
Dimensions, mmØ95*65 mm
Case materialAluminum

Downloads

From the same family

Trace Spot 33 15W · QV 15200-374 Request a quote for this product
