Trace series · 48V magnetic track
Trace Track Rail 2 m

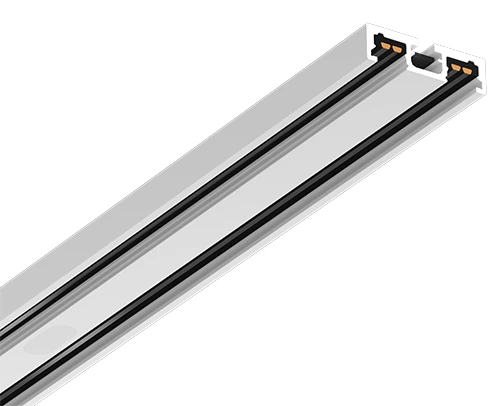

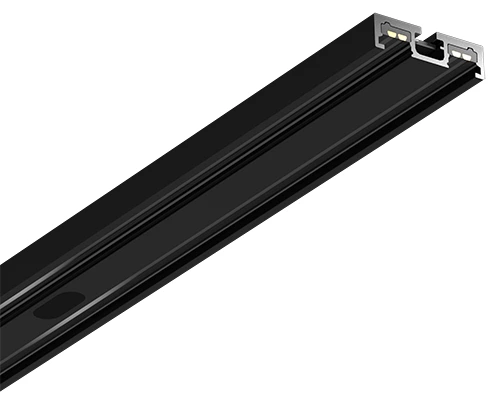

QV 15200-362Surface-mounted 25 mm magnetic track profile, 2 m. Supplied in Sandy White or Sandy Black to match the track heads.
Trace Track Rail 2 m (QV 15200-362) is a system component for the 48V magnetic track. It measures 25 × 7 × 2000mm. Ingress protection is IP20. It is finished in Sandy White, Sandy Black to match the track heads. Dimensioned drawings are shown below.
| Availability | Made to order |
| IP Code | IP20 |
| Size | 25 × 7 × 2000mm |
| Finishes | Sandy White · Sandy Black |
Applications
RetailHotelOfficeResidential
Configure Trace
Your configuration
CodeQV 15200-362
FinishSandy White / Sandy Black
Size2 m
AvailabilityMade to order
PriceSign in to view
Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | 25 × 7 × 2000mm |
| Case material | Aluminium + copper |
| Warranty | 3 years |
Downloads
Datasheet (PDF)↓ DownloadPhotometry (IES / LDT)Request file →2D / DWGRequest file →3D model (simplified) — STEP↓ Download3D model (simplified) — OBJ↓ Download3D model (simplified) — DXF↓ DownloadInstallation sheet (PDF)↓ DownloadMounting guideRequest file →
The simplified 3D model is an envelope generated from the published dimensions for layout and clash checks; it carries no optics, driver or fixing detail. The manufacturer's CAD is supplied on request.
