Trace Vertical Connector — Sandy White — Trace series · 48V magnetic track
Trace series · 48V magnetic track

Trace Vertical Connector

QV 15200-367

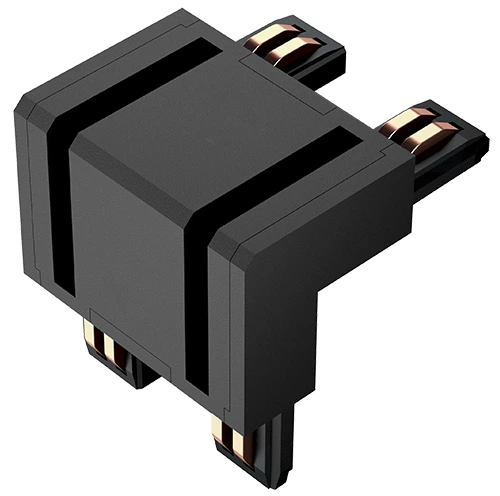

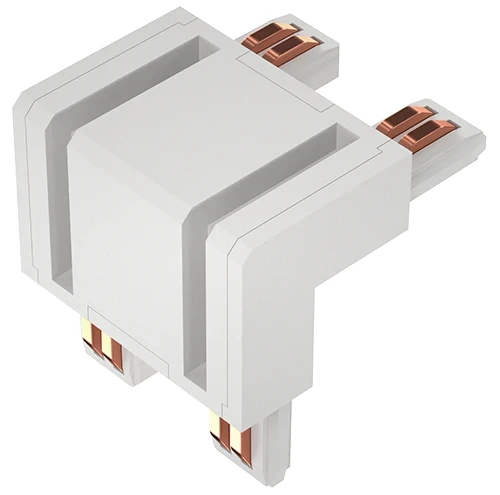

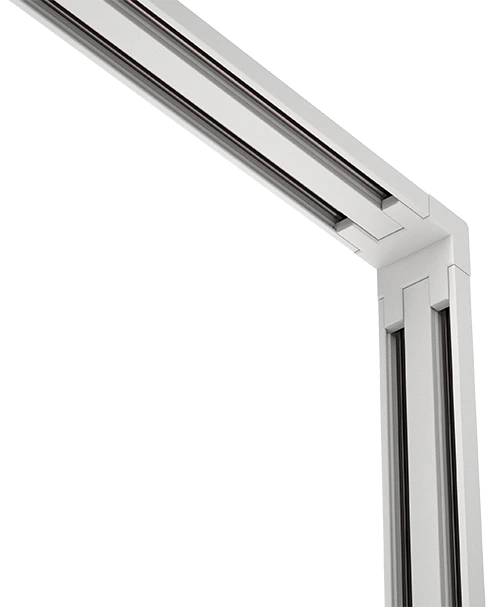

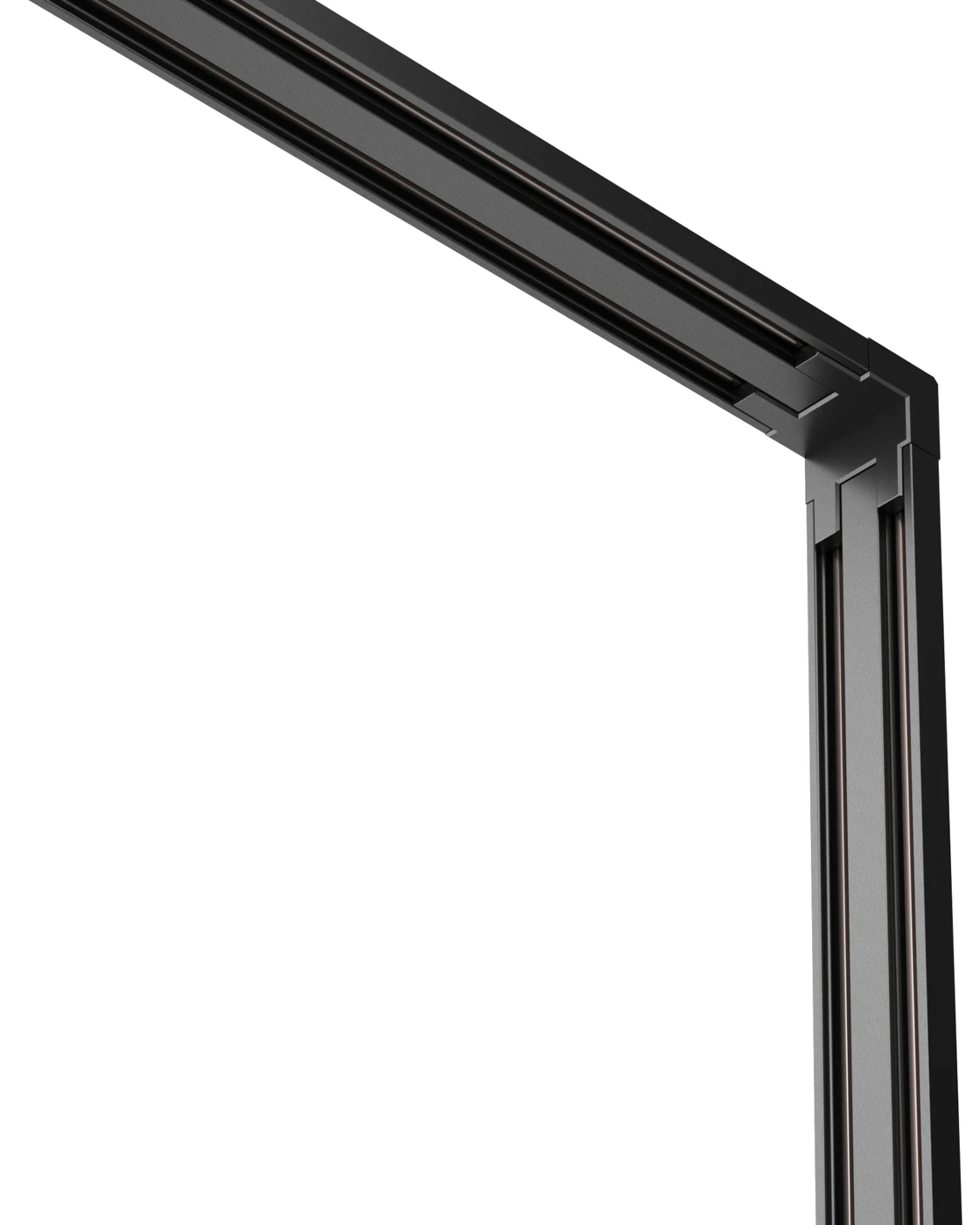

Vertical 90° joiner carrying a run from ceiling onto a wall. Supplied in Sandy White or Sandy Black to match the track heads.

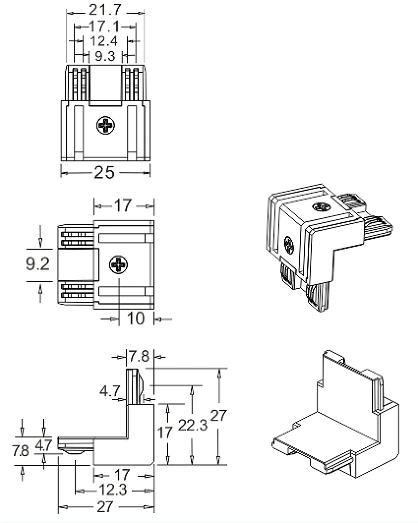

Trace Vertical Connector (QV 15200-367) is a system component for the 48V magnetic track. It measures 25 × 27 × 27mm. Ingress protection is IP20. It is finished in Sandy White, Sandy Black to match the track heads. Dimensioned drawings are shown below.

IP CodeIP20
Size25 × 27 × 27mm
Finishes

Applications

RetailHotelOfficeResidential

Configure Trace

Your configuration

CodeQV 15200-367
FinishSandy White / Sandy Black
PriceSign in to view

Dimensions & mounting

MountingTrack
Dimensions, mm25 × 27 × 27mm
Case materialAluminium + PC

Downloads

Datasheet (PDF)↓ DownloadPhotometry (IES / LDT)Request file →2D / DWGRequest file →Installation sheet (PDF)↓ DownloadMounting guideRequest file →
