White Vega Trimless

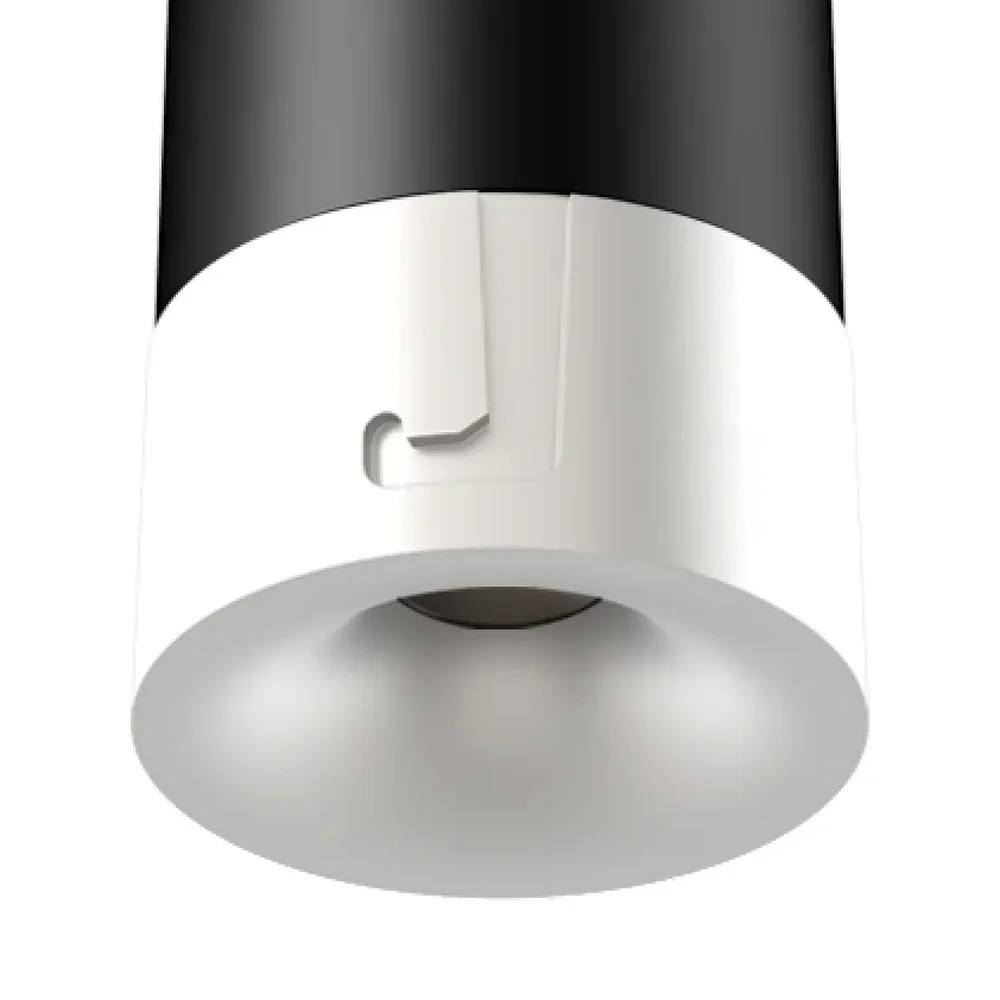

QN 11101-053A trimless spot in the Vega family, finished in Sandy White. It beds into the plaster with no visible frame, leaving only the light aperture in the ceiling — for architectural schemes after the cleanest possible ceiling. One light engine shared with the recessed Vega frame keeps the light character identical across a project. 24° and 36° optics reach UGR <13, and the Tunable White option runs 2700–6000K on DALI for UGR <8.
White Vega Trimless (QN 11101-053) is built as a recessed luminaire and specified at LED 10W, with 3000K / 4000K (2700K on request, Tunable White 2700–6000K, order option) and a colour rendering index of CRI ≥90. It is finished in Sandy White, and is typically specified for residential, hotel, gallery, boutique schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.
| Luminous flux, lm | — |
| CCT, K | 3000K / 4000K (2700K on request, Tunable White 2700–6000K, order option) |
| Power consumption, W | 10W · 36V / 250mA |
| Color rendering (CRI) | ≥90 |
| Glare rating (UGR) | <13 (24°) / <17 (36°) · Tunable White <8 / <10 |
| Size · cut-out | Ø 85 × H 73 · Cut-out Ø 60 |
| Finishes | Sandy White · Sandy Black · Matte Silver · Matte Brass · Matte Bronze |

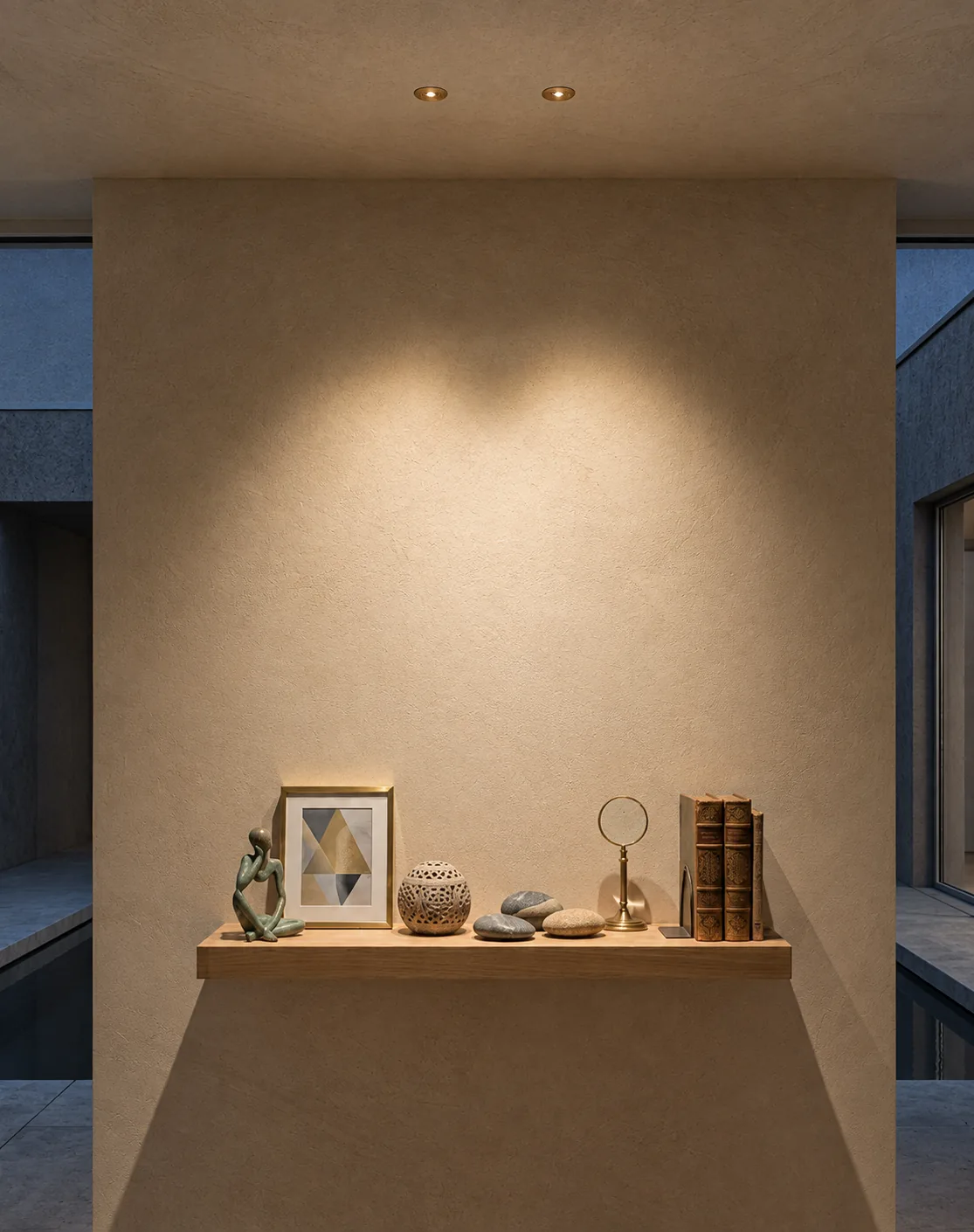

Applications
Configure Vega
Your configuration
Dimensions & mounting
| Mounting | Trimless · plaster-in |
| Cut-out, mm | Ø 60 |
| Dimensions, mm | Ø 85 × H 73 |
| Light engine, mm | Ø 44.7 × 73 |
| Case material | Aluminum |
| Warranty | 3 years |
Light distribution — cd/klm
Driver
Version follows the control selection: On/Off · DALI
