Veil series · Wall wash optic

White Veil Wash 15W

QN 11181-046

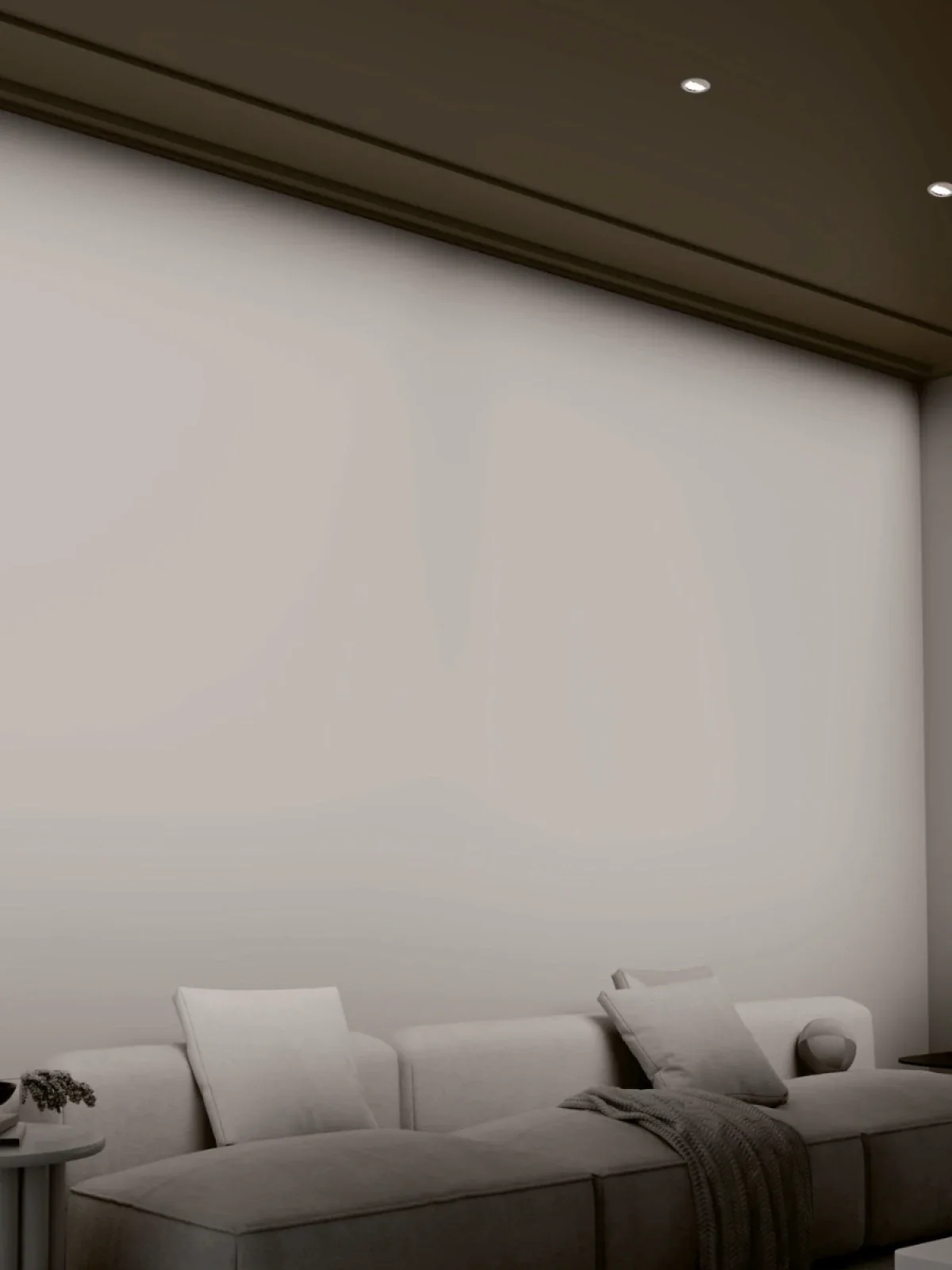

A recessed spot with a wall-wash optic — it lays light evenly down a wall face from top to bottom rather than throwing a symmetric cone. Made for art walls, textured surfaces, curtain walls and corridor ends; lighting the wall makes a room read larger. The source stays out of the sightline, and the fitting is positioned close to the ceiling–wall junction, brought into scene control through the DALI order option. The larger of two power sizes, for high ceilings and stronger accent.

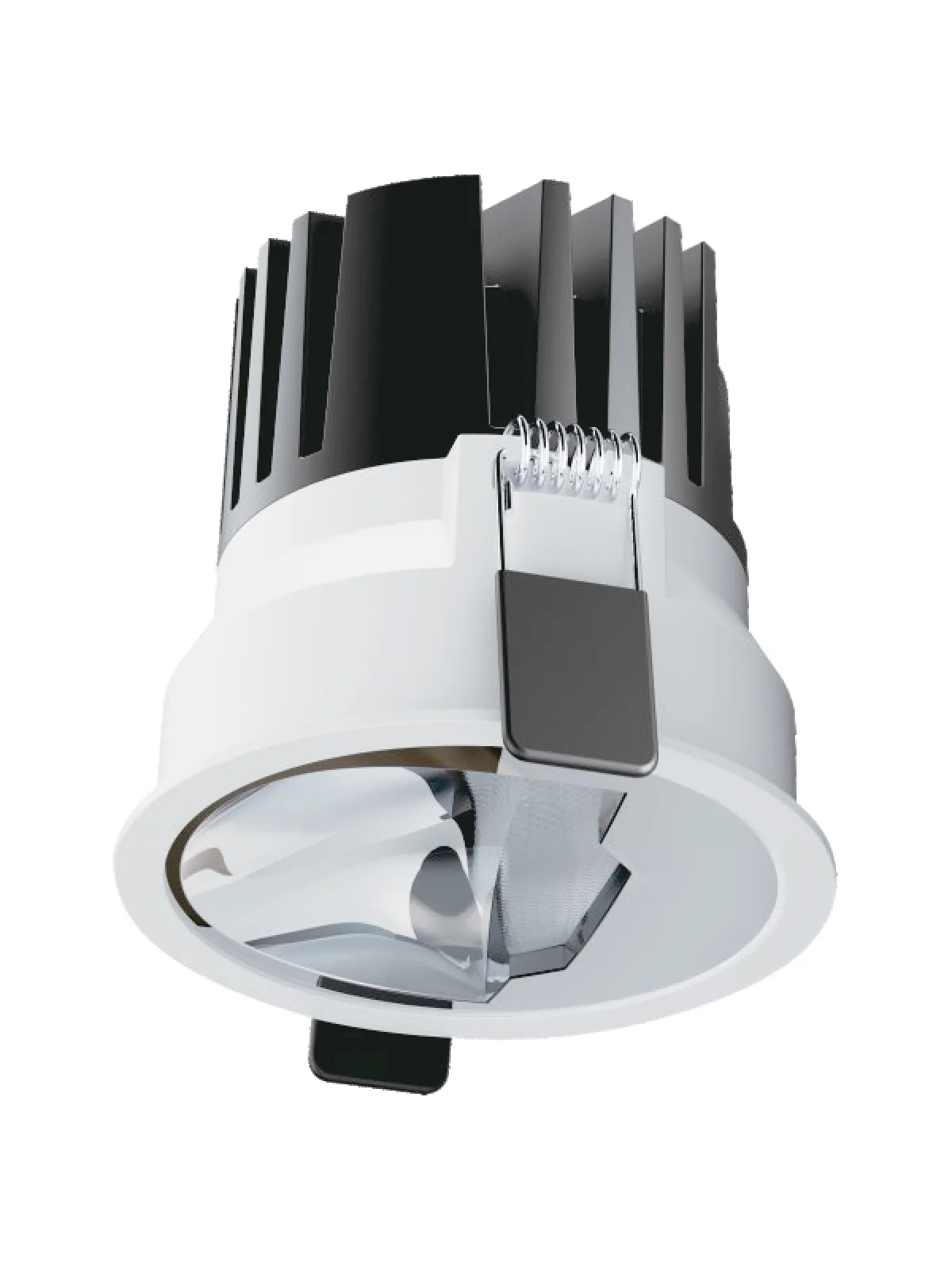

White Veil Wash 15W (QN 11181-046) is built as a recessed luminaire and specified at LED 15W, with 3000K (2700K / 4000K on request), a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in White, and is typically specified for residential, hotel, gallery, boutique schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are supplied on request for specification and lighting-calculation work.

Luminous flux, lm
CCT, K 3000K (2700K / 4000K on request)
Power consumption, W15W · 36V / 350mA
Color rendering (CRI)≥90
Glare rating (UGR)<18
IP CodeIP20
Size · cut-outØ 80 × H 75 · Cut-out Ø 75
Finishes White

Applications

ResidentialHotelGalleryBoutique

Configure Veil

CCT

Control

Your configuration

CodeQN 11181-046
FinishWhite
Power15W
Size15W
CCT3000K
ControlOn/Off

Dimensions & mounting

Ø 80 H 75
MountingSpring clips
Cut-out, mmØ 75
Dimensions, mmØ 80 × H 75
Case materialAluminum, white
Warranty3 years

Light distribution — cd/klm

90° 90°
C0 / C180 — wall wash

Driver

External · constant current — 36V / 350mA
Version follows the control selection: On/Off · DALI
