Graphite Orbit Table Lamp

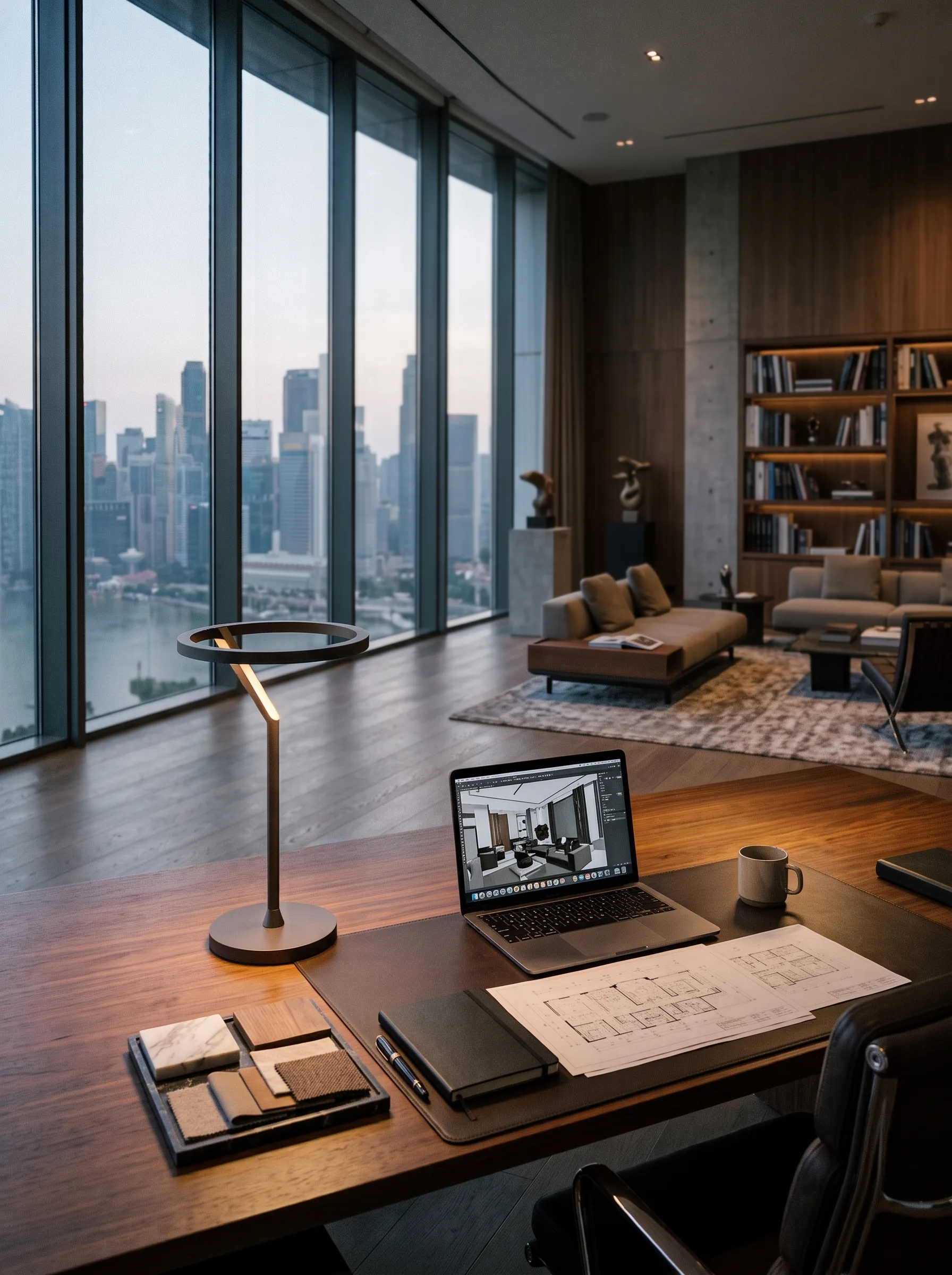

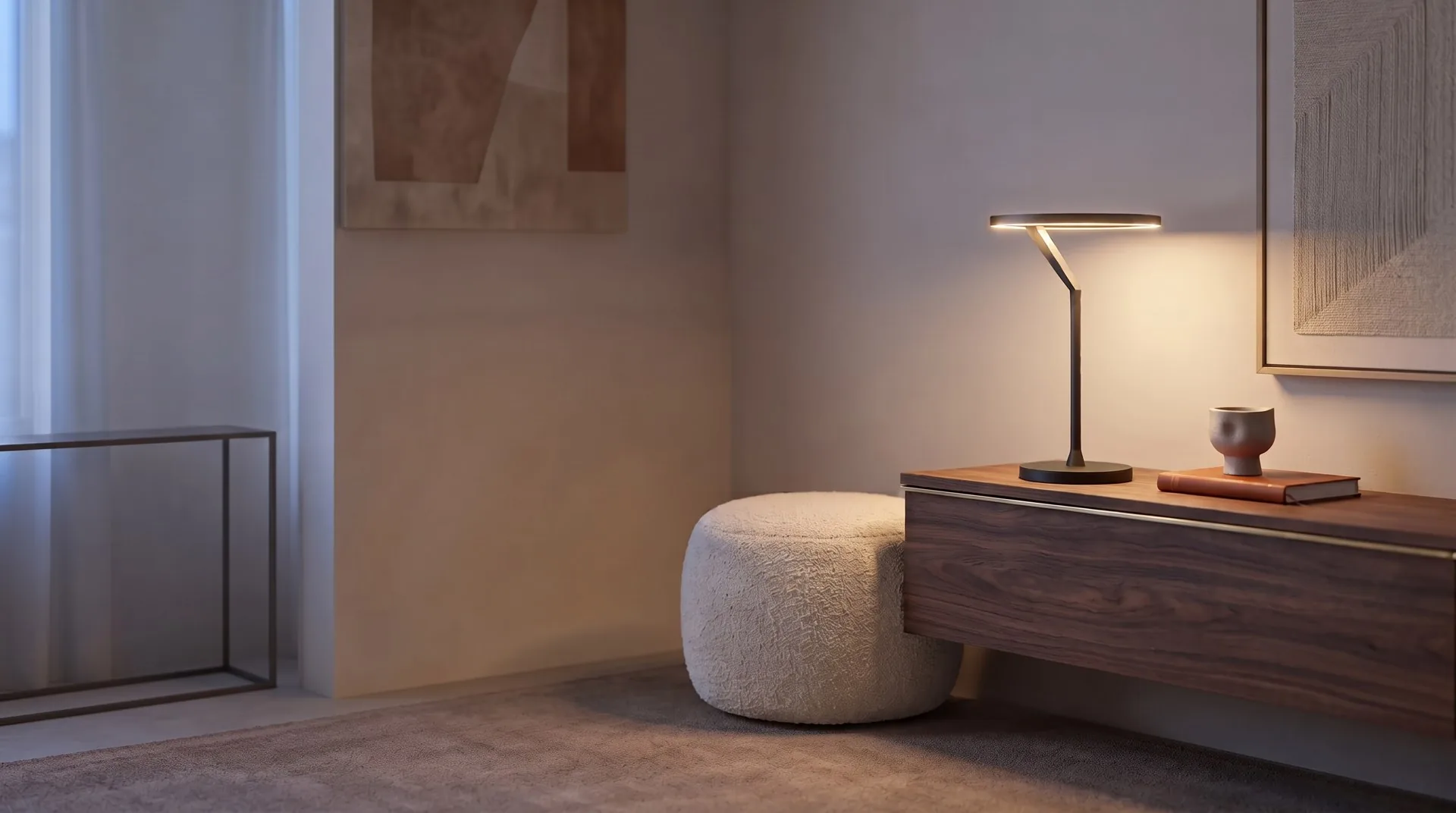

QN 42024-165A ring of light on a stem. The head is an open aluminium hoop fed by a single wedge that rises out of the stem, so the LED itself never faces the room — what reaches the table is the ring's own soft edge glow and a wide pool underneath. On a Ø220 weighted base at 380 mm tall it works as a bedside, console or reception light rather than a desk task lamp: 7.52 W, 403 lm at a warm 3000 K, CRI ≥90, IP20, in a dark Graphite finish.
Graphite Orbit Table Lamp (QN 42024-165) is built as a table luminaire and specified at LED 7.52W, with 3000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Graphite, and is typically specified for residential, hotel, office, study schemes. Dimensioned drawings are shown below; IES / LDT photometric files and finish samples are available on request for specification and lighting-calculation work.
| Luminous flux, lm | 403 |
| CCT, K | 3000K |
| Power consumption, W | 7.52W |
| Color rendering (CRI) | ≥90 |
| IP Code | IP20 |
| Size · cut-out | Ø 220 × H 380 |
| Finishes |
Applications
Configure Orbit
Dimensions & mounting
| Mounting | Table |
| Dimensions, mm | Ø 220 × H 380 |
| Case material | Aluminum |
