Trace series · 48V magnetic track
Trace Pendant Spot 39 10W · 200mm
QV 15200-299A 48V magnetic-track pendant spot drawing 10W at 15°/24°/38°, supplied in Sandy White, Sandy Black or Gold. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.

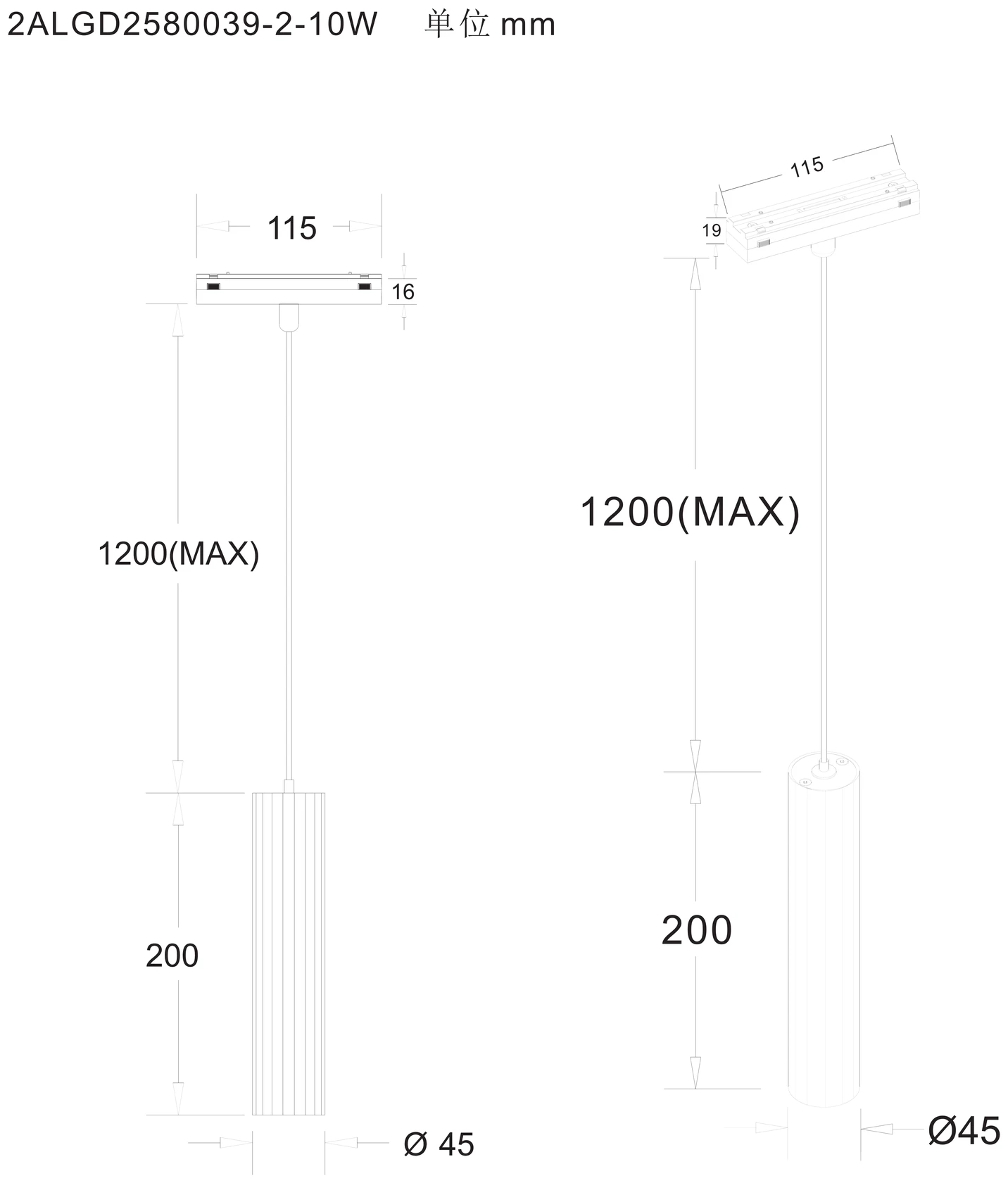

Trace Pendant Spot 39 10W · 200mm (QV 15200-299) is built as a track luminaire and specified at LED 10W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, Gold, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.
| Luminous flux, lm | 746.6 / 845.9 / 881.8lm (3000K, measured at 15° / 24° / 36°) |
| CCT, K | 3000K/4000K/5000K |
| Power consumption, W | 10W · DC 48V |
| Color rendering (CRI) | ≥90 |
| IP Code | IP20 |
| Size | Ø45*H200mm |
| Finishes |
Applications
RetailHotelOfficeResidential
Configure Trace
Beam angle
CCT
Control
Order codes by variant
On/OffQV 15200-299
DALIQV 15200-300
Your configuration
CodeQV 15200-299
FinishSandy White / Sandy Black / Gold
Beam angle15°
CCT3000K
ControlOn/Off
PriceSign in to view
Dimensions & mounting
| Mounting | Track |
| Dimensions, mm | Ø45*H200mm |
| Case material | Aluminum |
