Products/ Systems/ Trace series
Trace series · 48V magnetic track

Trace Pendant Spot 39 10W · 300mm

QV 15200-301

A 48V magnetic-track pendant spot drawing 10W at 15°/24°/38°, supplied in Sandy White, Sandy Black or Gold. Track-mounted on the 25 mm ultra-thin profile, with On/Off and DALI as order options.

Trace Pendant Spot 39 10W · 300mm (QV 15200-301) is built as a track luminaire and specified at LED 10W, with 3000K/4000K/5000K, a colour rendering index of CRI ≥90 and IP20 ingress protection. It is finished in Sandy White, Sandy Black, Gold, and is typically specified for retail, hotel, office, residential schemes. Dimensioned drawings are shown below, photometric files are downloadable on this page, and finish samples are available on request.

Luminous flux, lm746.6 / 845.9 / 881.8lm (3000K, measured at 15° / 24° / 36°)
CCT, K 3000K/4000K/5000K
Power consumption, W10W · DC 48V
Color rendering (CRI)≥90
IP CodeIP20
SizeØ45*H300mm
Finishes

Applications

RetailHotelOfficeResidential

Configure Trace

Beam angle

CCT

Control

Order codes by variant

On/OffQV 15200-301
DALIQV 15200-302

Your configuration

CodeQV 15200-301
FinishSandy White / Sandy Black / Gold
Beam angle15°
CCT3000K
ControlOn/Off

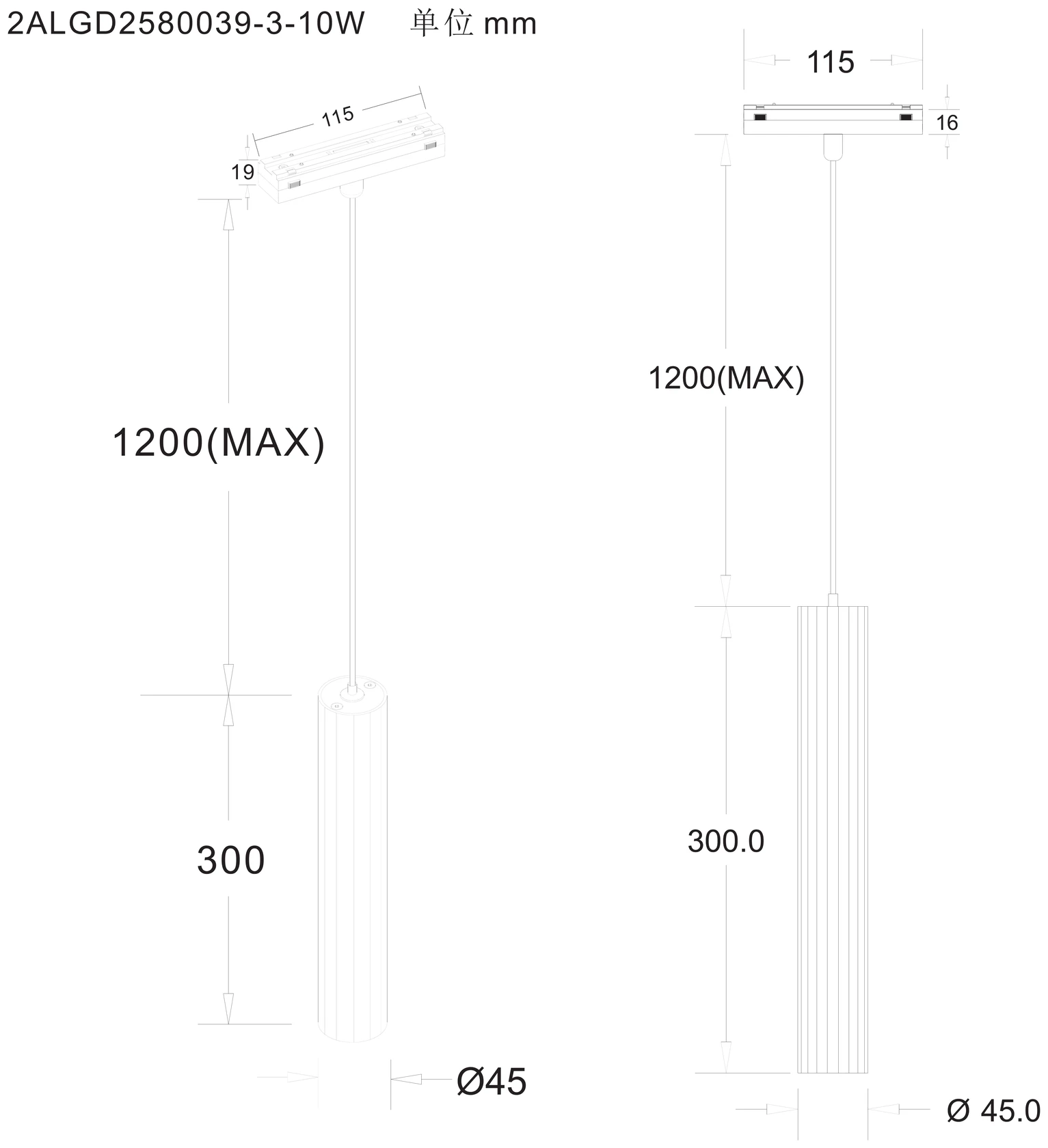

Dimensions & mounting

Ø45 H300
MountingTrack
Dimensions, mmØ45*H300mm
Case materialAluminum

Downloads

From the same family

Trace Pendant Spot 39 10W · 300mm · QV 15200-301 Request a quote for this product
